Introduction
In modern industrial automation systems, connectors must deliver stable electrical performance, mechanical durability, and protection against harsh environments. Among the most widely used industrial interfaces is the 7/8 circular connector, a connector standard designed for high-current power distribution and industrial communication networks.
This guide explains the features of 7/8 circular connectors, pinouts, technical specifications, and industrial applications. It is intended to help engineers, system integrators, and industrial buyers understand why this connector type remains a reliable choice for automation equipment.

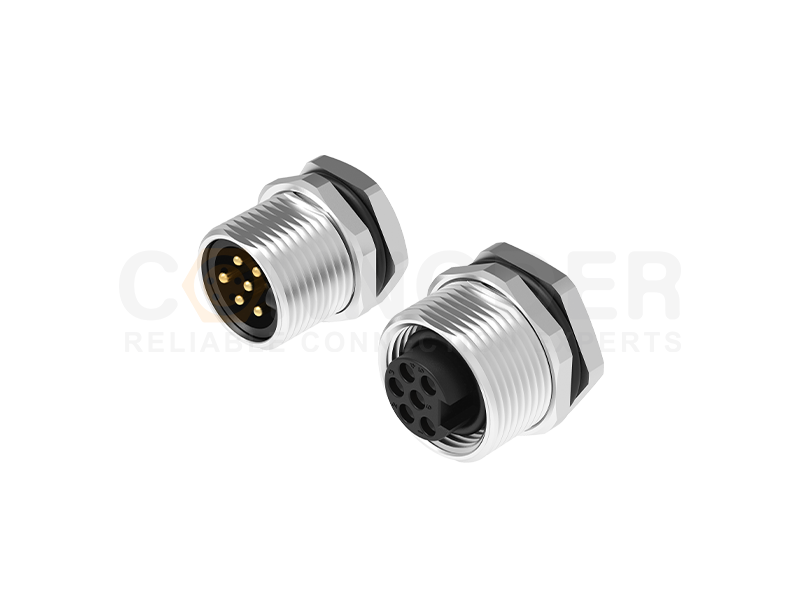

7/8 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
What Is a 7/8 Circular Connector?
A 7/8 circular connector refers to an industrial connector using a 7/8-16 threaded coupling interface. The name originates from the 7/8-inch coupling nut diameter, which provides a secure mechanical connection between the plug and receptacle.
These connectors are widely used in industrial environments because they provide:
High current transmission capacity
Secure screw-locking mechanism
Reliable waterproof sealing
Durable construction for harsh environments
Key Features of 7/8 Circular Connectors
1. Secure Threaded Locking Mechanism
One of the defining features of a 7/8 connector is the threaded screw-lock coupling system. This design prevents accidental disconnection and ensures stable electrical contact even in environments with strong vibration.
Excellent vibration resistance
Secure electrical connection
Reliable performance in industrial machinery
2. High Current Capacity
Compared with smaller industrial connectors, 7/8 connectors are designed to handle higher electrical loads, making them ideal for power distribution systems.
| Specification | Typical Value |
| Rated Voltage | Up to 300 V |
| Current Rating | Up to 9–13 A |
| Contact Resistance | Low resistance for stable signal transmission |
Insulation Resistance | High reliability in industrial environments |
3. Multiple Pin Configurations
7/8 circular connectors are available in several contact configurations, allowing engineers to choose the appropriate solution for different industrial systems.

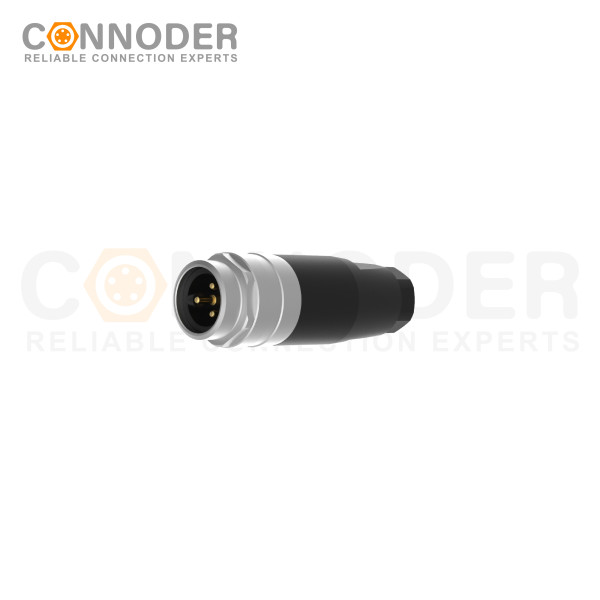

3-Pin connectors – basic power connections
4-Pin connectors – additional signal capability

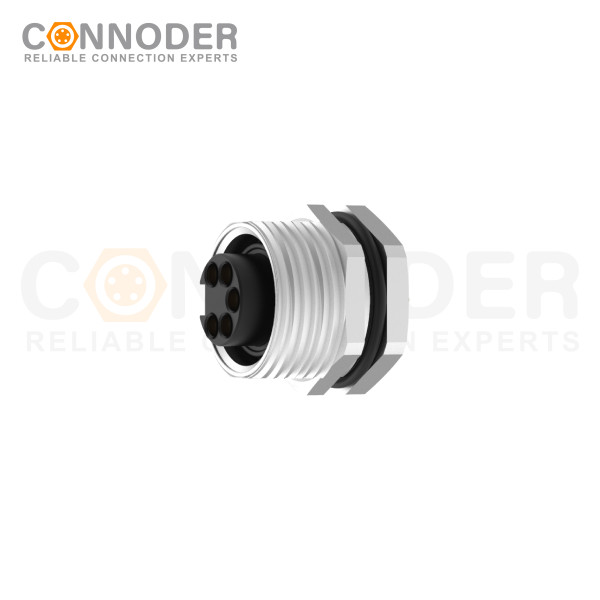

5-Pin connectors – power and communication integration
4. Industrial Protection Ratings
Industrial connectors must perform reliably in environments exposed to dust, water, and chemicals. Most 7/8 connectors provide IP67 environmental protection.
Waterproof and dustproof sealing
Resistance to oils and chemicals
Wide operating temperature range
5. Durable Industrial Materials
These connectors are typically manufactured using high-quality industrial materials such as:
Nickel-plated brass housing
Gold-plated copper contacts
High-performance thermoplastic insulation
Typical Applications of 7/8 Circular Connectors
Factory Automation
In automated production lines, 7/8 connectors are used to connect sensors, actuators, and control systems. Their reliability helps ensure continuous machine operation.
Industrial Networking Systems
These connectors are commonly used in DeviceNet and other industrial communication networks, enabling stable power and signal transmission.
Robotics and Smart Manufacturing
Robotic systems require connectors that can withstand vibration and frequent movement. 7/8 connectors are widely used in robotic arms and automated equipment.
Choosing the Right 7/8 Circular Connector
When selecting a 7/8 connector for industrial equipment, engineers should consider:
Current and voltage rating
Number of contacts
Connector orientation (straight or right-angle)
Protection rating and environmental resistance
Connoder Industrial Circular Connector Solutions
Connoder specializes in manufacturing high-performance industrial circular connectors designed for automation systems and harsh environments.
Our product range includes:
7/8 circular connectors
M5 connectors
M8 connectors
M9 connectors
M12 connectors
M16 connectors
Industrial cable assemblies
Connoder connectors are widely used in automation systems, robotics equipment, sensor networks, and industrial communication infrastructure.
What is a 7/8 circular connector used for?
A 7/8 circular connector is mainly used in industrial automation systems to transmit power and signals between devices. It is commonly found in applications such as factory automation, robotics, industrial networking (DeviceNet), sensors, and actuators, where reliable electrical connections are required.
What are the main features of 7/8 circular connectors?
The key features of 7/8 circular connectors include a secure threaded locking mechanism, high current capacity, multiple pin configurations (such as 3-pin, 4-pin, and 5-pin), IP67 environmental protection, and durable industrial materials that ensure reliable performance in harsh environments.
What is the pinout of a 7/8 circular connector?
A common 7/8 circular connector pinout is the 5-pin configuration used in DeviceNet systems. Typically, Pin 1 is the shield, Pin 2 is V+ power, Pin 3 is V− power, Pin 4 is CAN High, and Pin 5 is CAN Low, allowing the connector to transmit both power and communication signals.
Why are 7/8 connectors suitable for industrial environments?
7/8 connectors are designed for industrial environments because they provide strong mechanical locking, high current capacity, and IP67 protection against dust and water. Their robust materials and threaded design ensure stable connections even in environments with vibration, moisture, and temperature variations.
