Custom Cable Harness
-
Circular Connector Accessories
-
-
M5 Sensor Connecting Cables
CONNECTOR SHELL: Brass-Bright Tin Plated OR Brass-Nickel Plated OR Stainless Steel (Un-shielded Only)
CONNECTOR INSULATOR: PBT-Black, UL94 V-0 (Other materials available)
CONNECTOR CONTACTS: Brass, 10u" Gold Plated
CONNECTOR NUT: Nickel Plated Brass or Stainless Steel
M5 CABLE: 28 AWG, 2 Twisted Pairs with Foil, Drain, Braid Shield
M5 CABLE INSULATION MATERIAL: SR-PVC (Other materials available)
M5 CABLE JACKET MATERIAL: PVC (Other materials available)
OPERATING TEMPERATURE: -40°C TO 80°C
- Circular Connectors
- Type
- M5 Circular Connector
- M8 Circular Connector
- M9 Circular Connector
- M12Circular Connector
- M14Circular Connector
- M16Circular Connector
- 7/8 " Circular Connector
- Shape
- Straight
- Right Angle
- Gender
- Female
- Male
- Number of cores
- 2 Pin
- 3 Pin
- 4 Pin
- 5 Pin
- 6 Pin
- 7 Pin
- 8 Pin
- 9 Pin
- 12 Pin
- 14 Pin
- 16 Pin
- 17 Pin
- 19 Pin
- 24 Pin
- 1+PE
- 2+PE
- 3+PE
- 4+PE
- 5+PE
- 6+PE
- 3+5 Pin
- 3+7 Pin
- 2+FE
- 3+FE
- 4+FE
- Foolproof type
- A
- B
- C
- D
- K
- L
- M
- P
- S
- T
- X
- General
- Protection level
- IP66
- IP67
- IP68
- Wiring method
- Solder type
- PCB type
- Screw type
- SMD type
- Installation type
- Rear Fastened
- Front Fastened
- Square Flange Socket
- Sockets
- SMD Sockets
- Plastic Assembled
- Metal Assembled
- Curved Metal Assembly
- Ordinary Overmolded Type
- Overmolded Type
- Shielding type
- Shielded
- Unshielded
- Yes/No Optional
- Housing material
- Metal
- Plastic
- Metal + Plastic
- Rated voltage
- 30V
- 48V
- 50V
- 60V
- 63V
- 125V
- 250V
- 630V
- 300V
- 800V
- Rated current
- 0.5A
- 1A
- 1.5A
- 2A
- 3A
- 4A
- 5A
- 6A
- 7A
- 8A
- 9A
- 12A
- 13A
- 16A
- Insulation resistance
- 5mΩ
- 8mΩ
M5 Sensor Connecting Cables
4 results
ViewShowcase

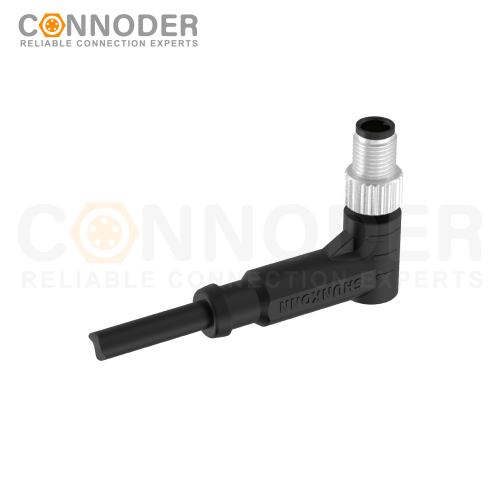

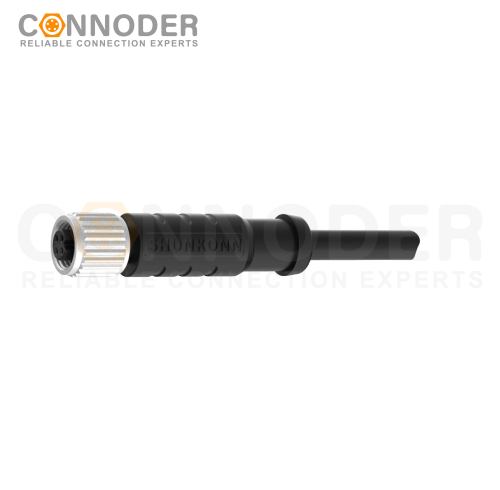

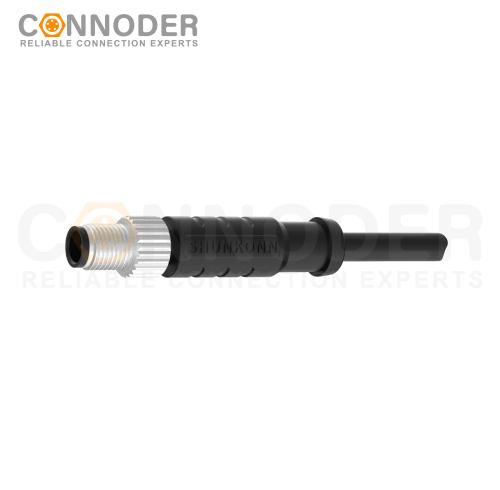

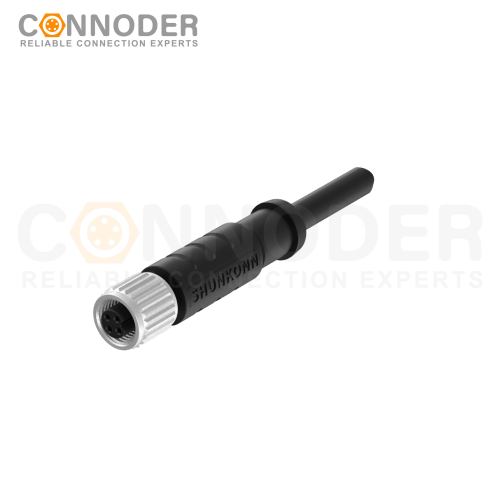

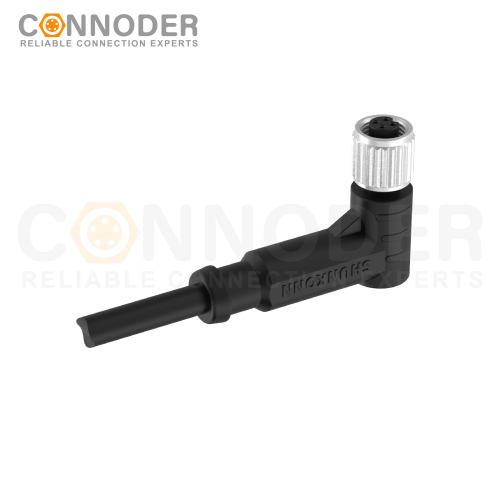

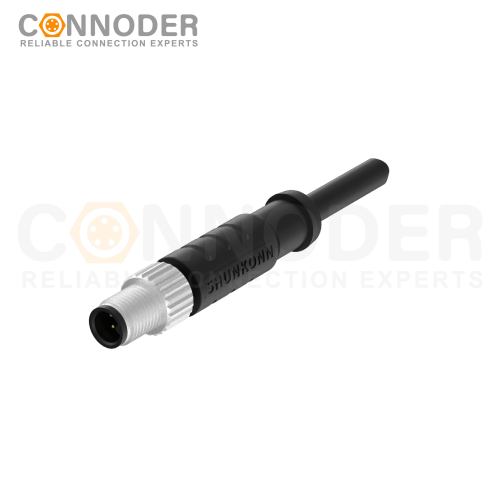

M5 sensor connection cable plays an important role in many fields due to its compact design, excellent water resistance and strong anti-interference capability.
M5 sensor connection cable plays an important role in many fields due to its compact design, excellent water resistance and strong anti-interference capability.
M5 sensor connection cable plays an important role in many fields due to its compact design, excellent water resistance and strong anti-interference capability.
M5 sensor connection cable plays an important role in many fields due to its compact design, excellent water resistance and strong anti-interference capability.
M5 Sensor Connecting Cables
Downloads on The Topic of Circular Connectors
Applications of Circular Connectors
Circular plug connectors and circular power connectors are used across various industries.
Connoder’s connectors are engineered for durability, with IP67/IP68 ratings for water and dust resistance, ensuring performance in harsh environments.
Industrial Automation
Connection of miniature sensors (proximity, photoelectric, capacitive, ultrasonic).
Signal transmission for micro-actuators.
Compact connections in robotic arms and precision automation equipment.
Robotics
Data and control signal interface in collaborative robots (cobots).
Encoder and feedback sensor connections in robotic joints.
Use in compact robotic grippers and vision modules.
Measurement & Testing Instruments
Connection of portable measuring devices (temperature, pressure, vibration).
Data acquisition systems requiring small and durable connectors.
Precision test and calibration tools.
Medical Technology
Miniature medical devices and diagnostic equipment.
Patient monitoring systems where compact and safe connections are critical.
Portable medical instruments requiring quick-connect interfaces.
Communication & Electronics
Antenna connections for small wireless modules.
Board-to-cable and cable-to-cable links in compact electronic devices.
Industrial handheld terminals and mobile controllers.
Circular Connector Technical Guide
Comparison of Pin Numbers and Coding Differences of Circular Connectors
Standard | IEC 61076 - 2 - 101 / DIN EN 61076 - 2 - 105 |
Thread Size | M5 x 0.5 |
Number of Contacts | 3 Core, 4 Core |
Contact Material | Copper alloy, gold - plated |
Rated Voltage | 60 VAC/DC |
Rated Current | 1 A |
Protection Level | IP67 (when properly connected) |
Operating Temperature | - 40°C to +85°C |
Locking Method | M5 threaded locking |
Housing Material | Brass (nickel - plated), Engineering plastic (PA9T) |
Cable Sheath | PVC, PUR (optional) |
Pin Configuration and Electrical Parameters of M5 Connector
3 Core Male
4 Core Male
3 Core Female
4 Core Female
Wiring Definition of M5 Connector
| Pins | 3 Pin Core Color | Pins | 4 Pin Core Color | ||
| 1 | BN |  |
1 | BN | |
| 2 | - |  |
2 | WH |  |
| 3 | BU |  |
3 | BU | |
| 4 | BK |  |
4 | BK | |
