M12 Connecting Cables

Your Trusted Source for High-Quality Circular Electrical Connectors

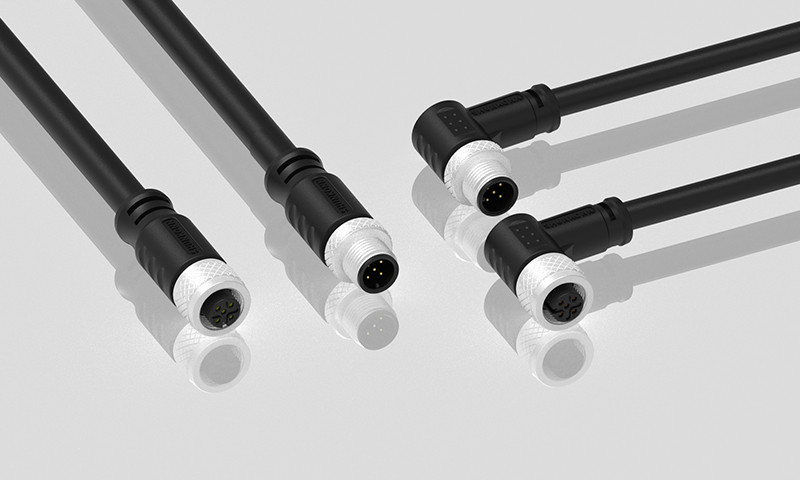

M12 Connectors and Cable Assemblies

1. Transmits signals, data and power, applicable to multiple fields such as industrial automation and sensors.

2. Threaded locking design ensures high resistance to vibration and shock, providing a stable and reliable connection.

3. With protection ratings up to IP67/IP68/IP69K, it has excellent sealing performance against water and dust.

4. Shielding options: unshielded, shielded and grounded types are available, offering strong anti - interference capabilities.

5. Universal design can meet a variety of industrial connection requirements.

6. Multiple coding types (A/B/D/K/L/S/T/X etc.) with anti - misplug design to prevent incorrect insertion.

7. Can be interoperated with mainstream brand M12 connectors, facilitating replacement and system integration.

8. Complies with the IEC61076 standard. A complete range of products is available, supporting both standard and customized application selections.

9. M12 cable assemblies available in 2 - 17 pin positions.

10. Male to Male, Female to Female, Male to Female, Double Ended, Single End to Blunt Cut, Straight or Right Angle.

Request a Quote

In the field of industrial automation, M12 circular connector cables play a crucial role. They are a key component in ensuring efficient and reliable communication between devices and are suitable for a wide range of demanding environmental conditions.

Protection Rating: M12 connector cables with IP67 or higher protection rating can effectively prevent dust entry and resist underwater immersion in a short period of time, making them ideal for use in wet or dusty working environments.

Material quality: These cables are made of high-quality materials, including stainless steel, brass, copper and other metal housings, as well as corrosion-resistant and wear-resistant insulators, to ensure long-term reliability.

Code selection: Depending on the application scenario, the M12 connector provides A variety of coding methods (such as A, B, C, D, K, L, S, T, X, Y), each code has a specific application scenario, such as A code for sensors and DC power supplies, while D code is designed for Ethernet.

Flexibility: M12 connectors with different coding types can support a wide range of functions from simple signal transmission to high-speed data communication to meet diverse industrial needs.

Length customization: We offer M12 connector cables in standard lengths, but can also be customized to suit different wiring requirements.

Easy installation: The M12 connector cable is equipped with an easy-to-operate threaded locking mechanism, making field installation quick and simple while ensuring the safety and stability of the connection.

With our M12 circular connector cables, you get a powerful and flexible connection solution that not only increases the overall efficiency of your system, but also reduces maintenance costs. Whether you are building a new project or upgrading an existing system, the M12 connector cable is the ideal choice for you. Contact us now to learn more about M12 connector cables and find the best solution for your project!

M12 Connectors and Cable Assemblies Types

Explore our M12 Connectors and Cable Assemblies range today to discover the best connectivity solution for your project! If you need more technical details or customization advice on the M12 Connectors and Cable Assemblies,please feel free to contact us for more information and support.

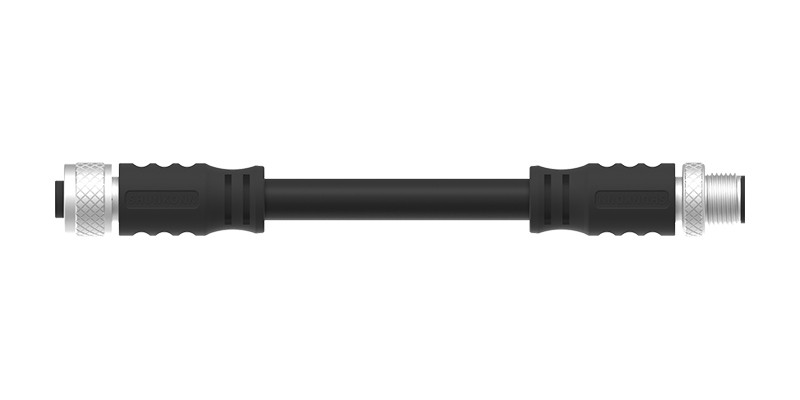

M12 Pre-Molded Cable Assemblies Straight

The precision injection - molding of the connector and cable is completed before leaving the factory, ensuring consistency and high reliability.

Cable types: PVC, PUR.

Length customization: Custom lengths as specified by customers are supported, reducing on - site wiring and connection work.

Protection level: IP67

Learn More ➞

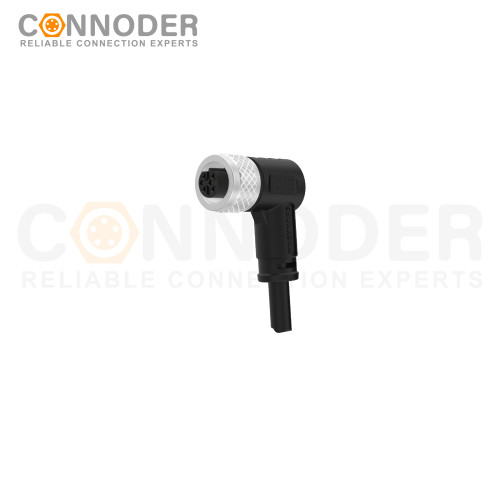

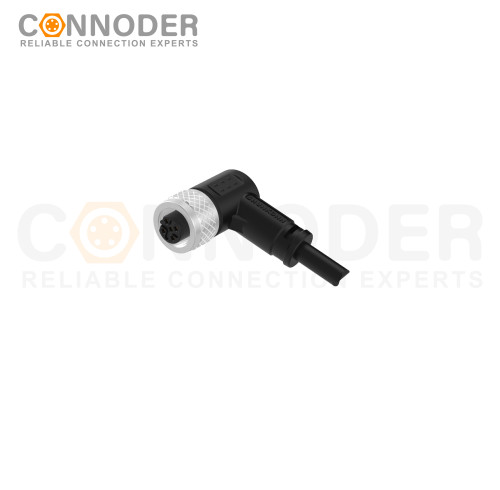

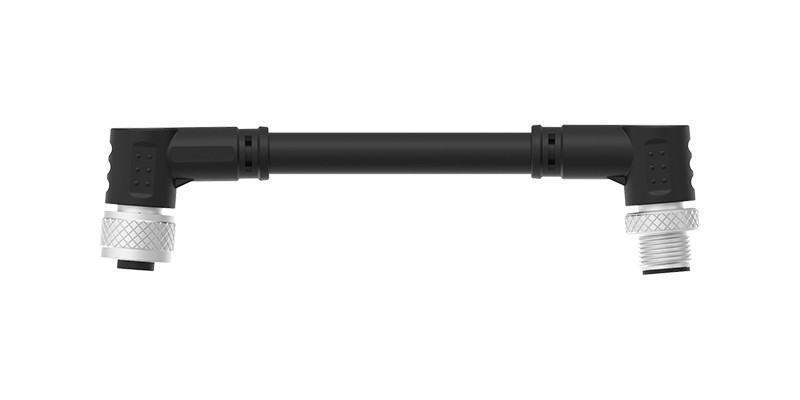

M12 Pre-Molded Cable Assemblies Right Angle
