M8 Circular Connector
The M8 circular connector has IP67 - rated waterproof, oil - resistant, and low - temperature - resistant properties. It operates stably and reliably,
supports quick - connect and threaded - locking connections, ensuring excellent electrical performance even in vibrating environments.
It is widely used in automotive sensors, photoelectric switches, proximity switches, industrial automation equipment, robot sensors, as well as the
integrated wire harnesses and signal connections in Industry 4.0 intelligent systems.
Connoder can provide customers with diverse and innovative connection solutions, including standard and customized M8 connectors and
assembled cable components, facilitating the efficient interconnection of devices.

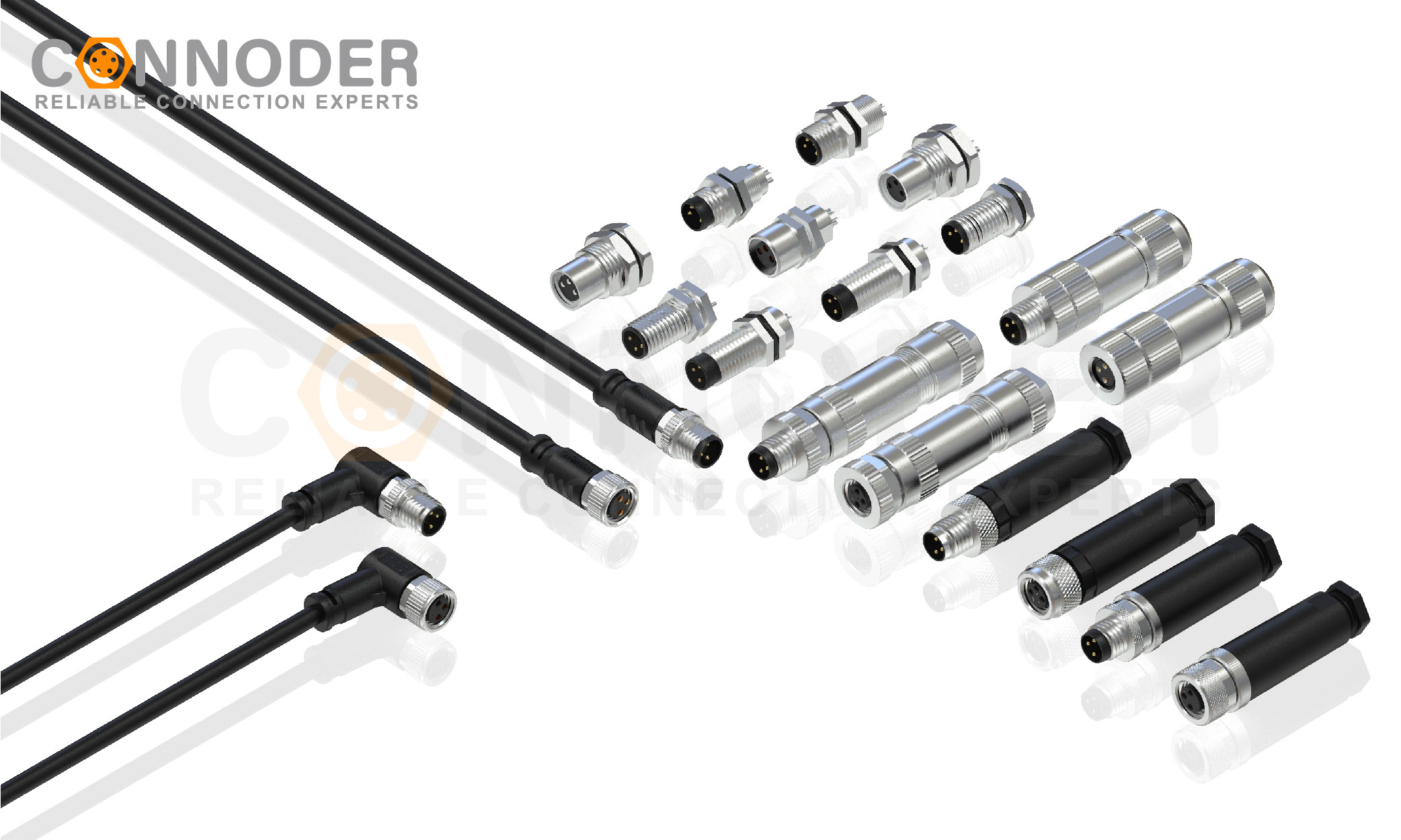

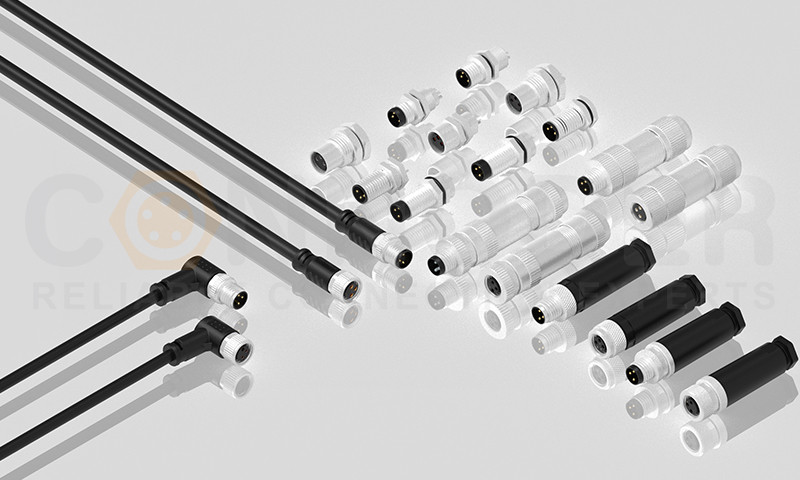

M8 Circular Connector Types
Explore our M8 circular connector range today to discover the best connectivity solution for your project! If you need more technical details or customization advice on the M8 circular connector, please feel free to contact us for more information and support.

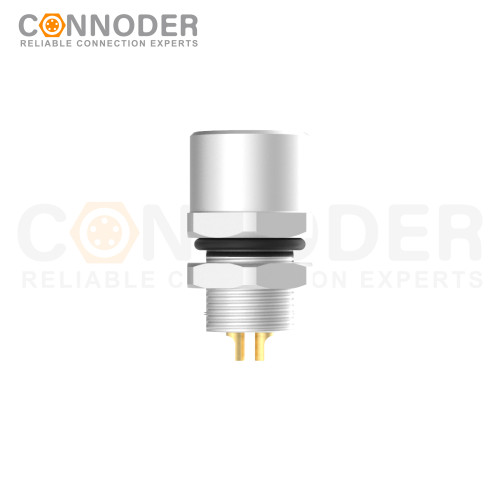

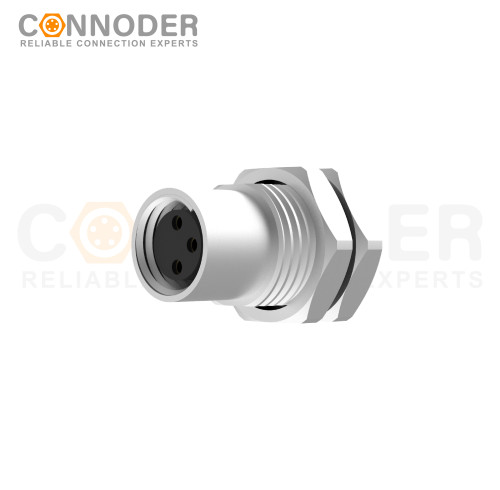

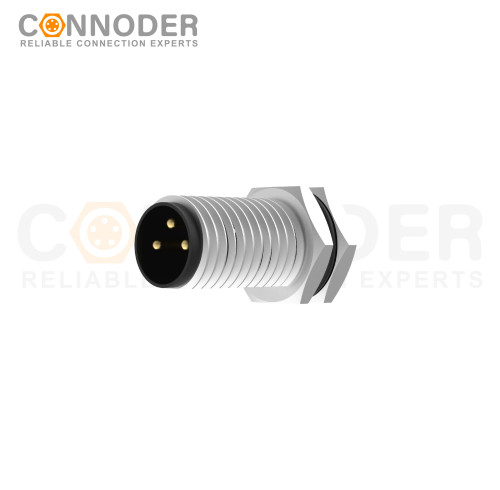

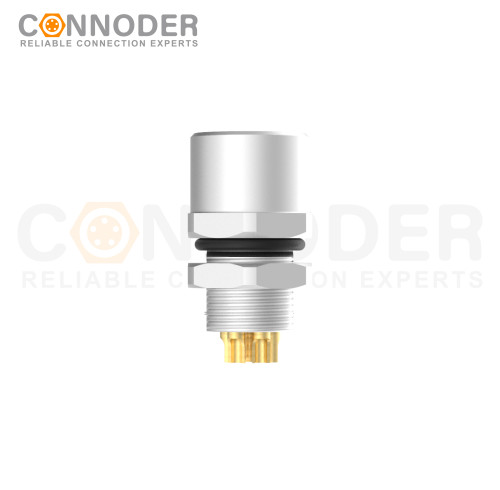

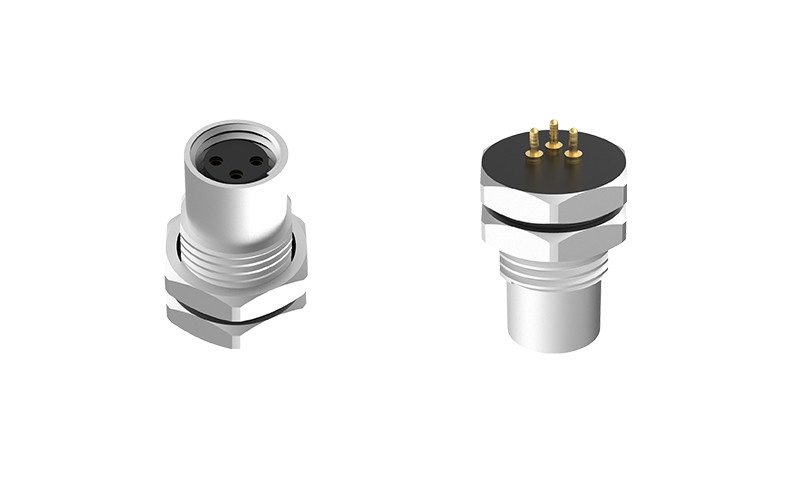

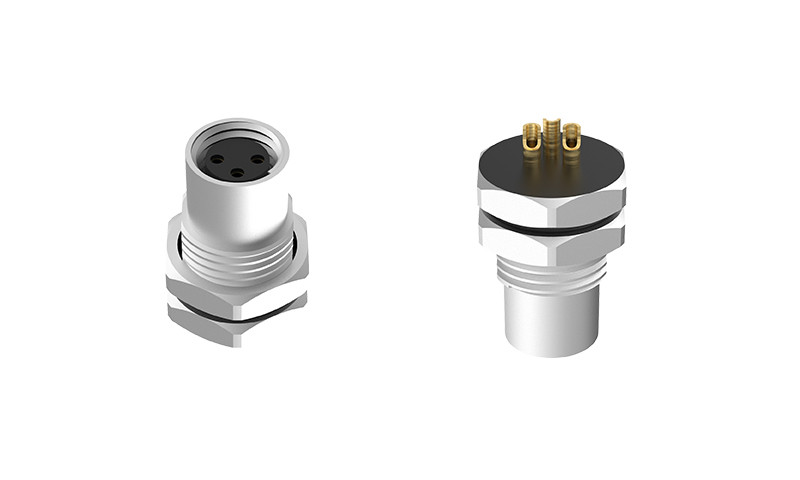

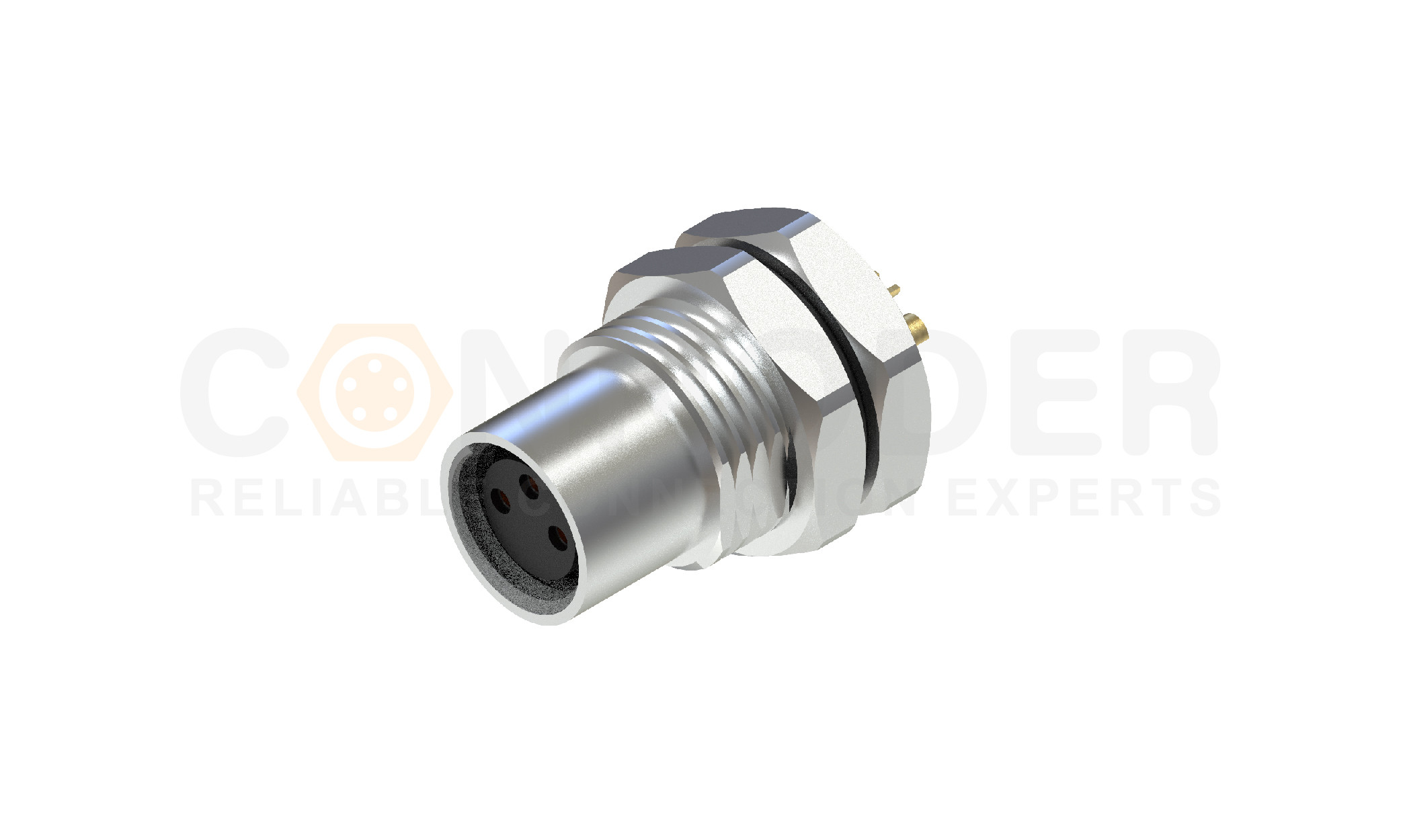

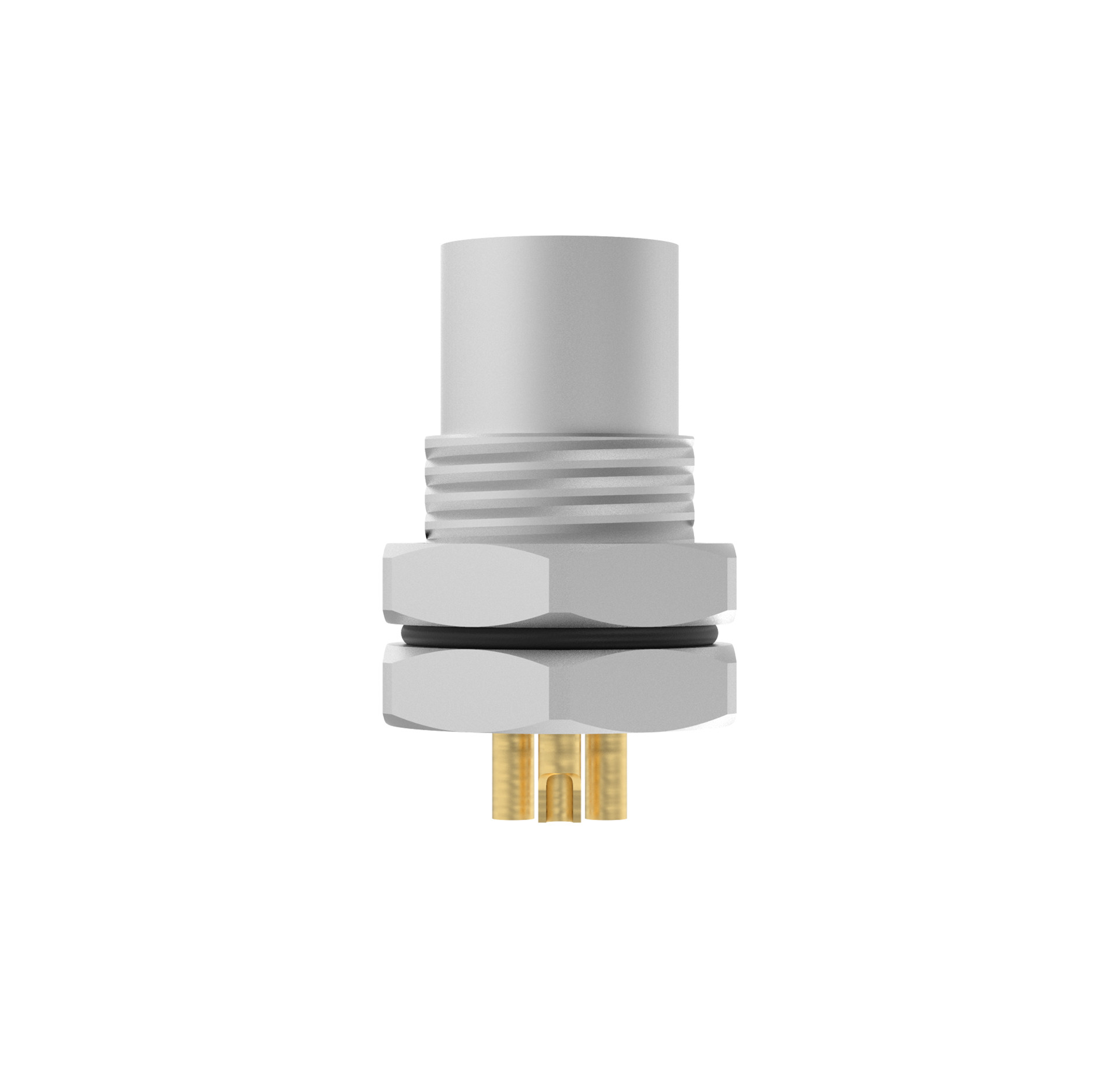

M8 Panel Mount Connector
Suitable for perforated installation on the equipment housing or panel, providing a stable external interface.
Installation methods: Front - panel mounting, Rear - panel mounting.
Connection methods: Wire - welding, PCB - plugging.

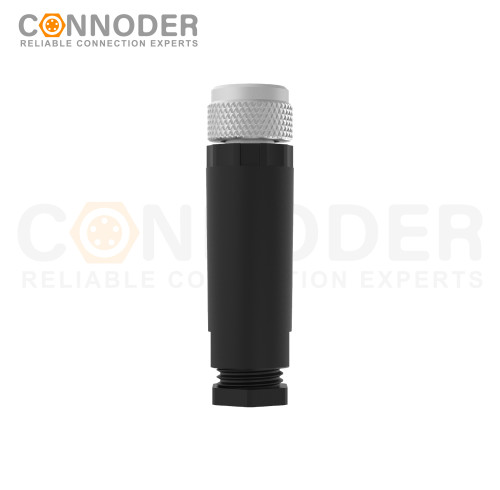

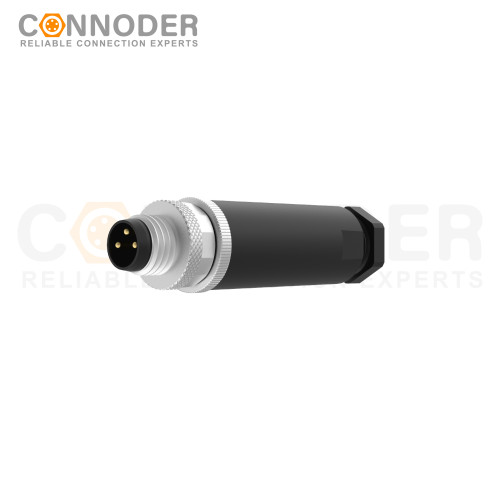

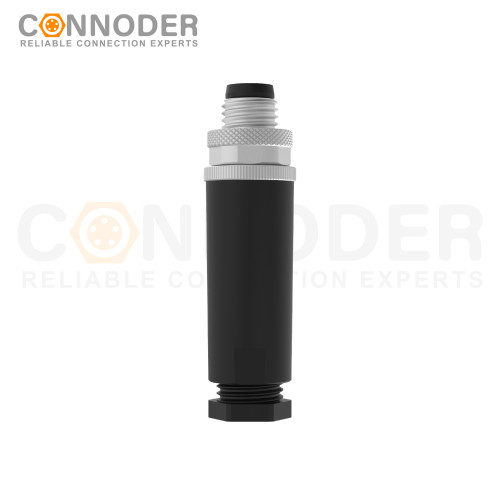

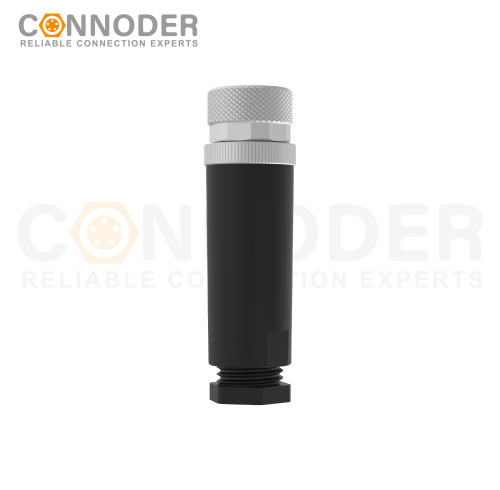

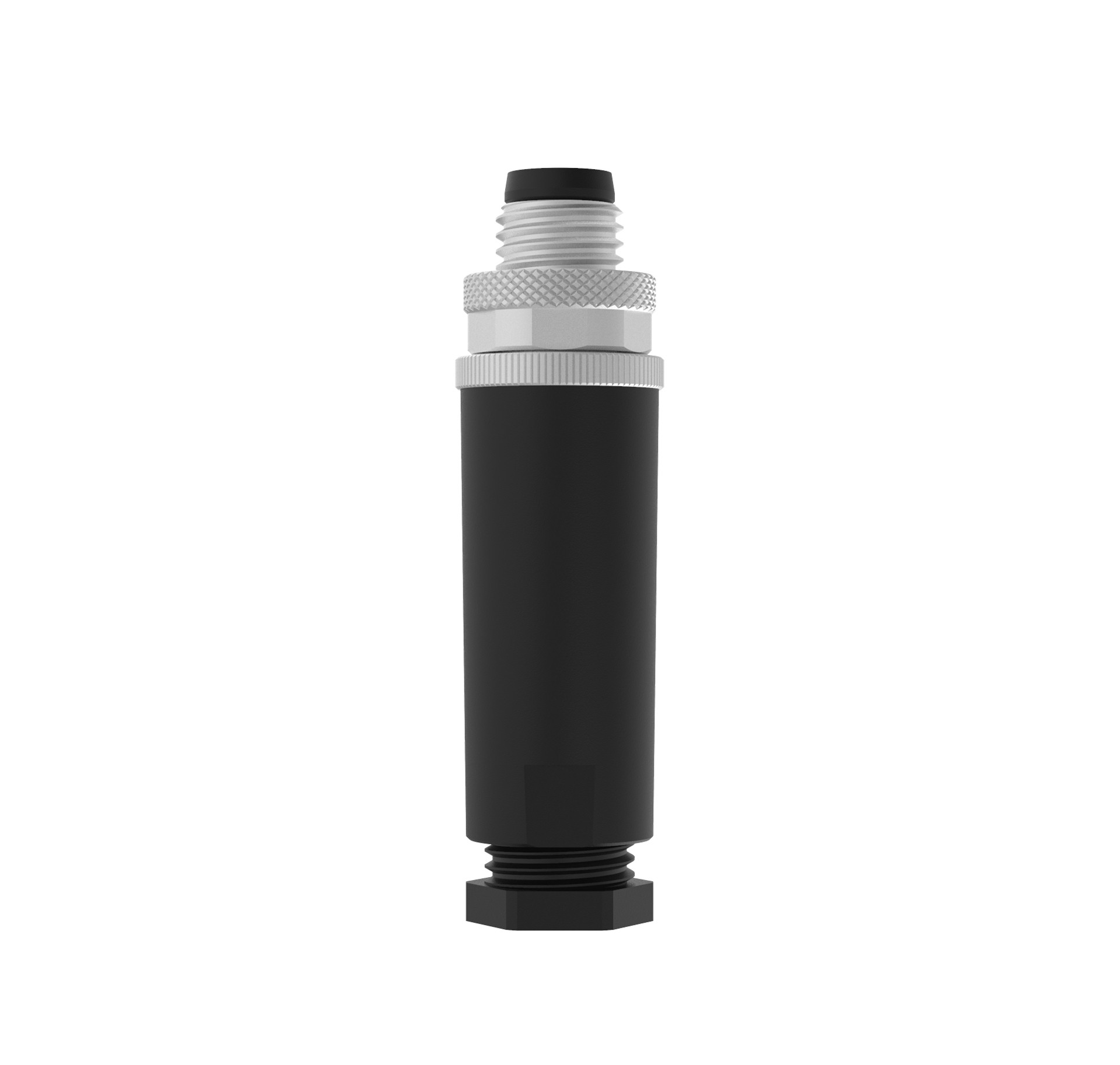

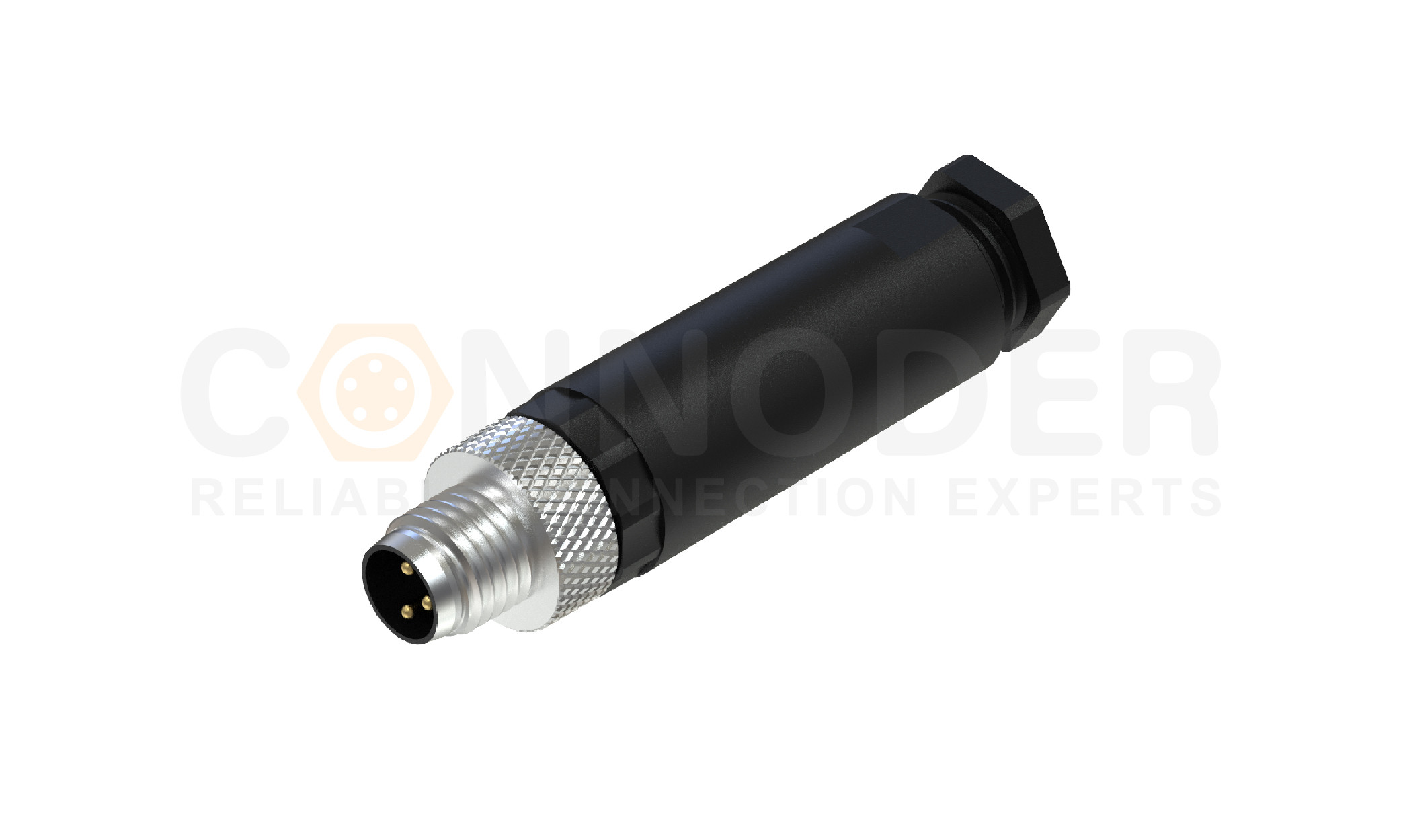

M8 Assembled Connector
A flexible connection solution designed for industrial automation, especially suitable for scenarios that require on - site assembly or customized wiring.
Material types: Plastic assembly, Metal assembly
Connection methods: Screw - terminal connection, Welding connection

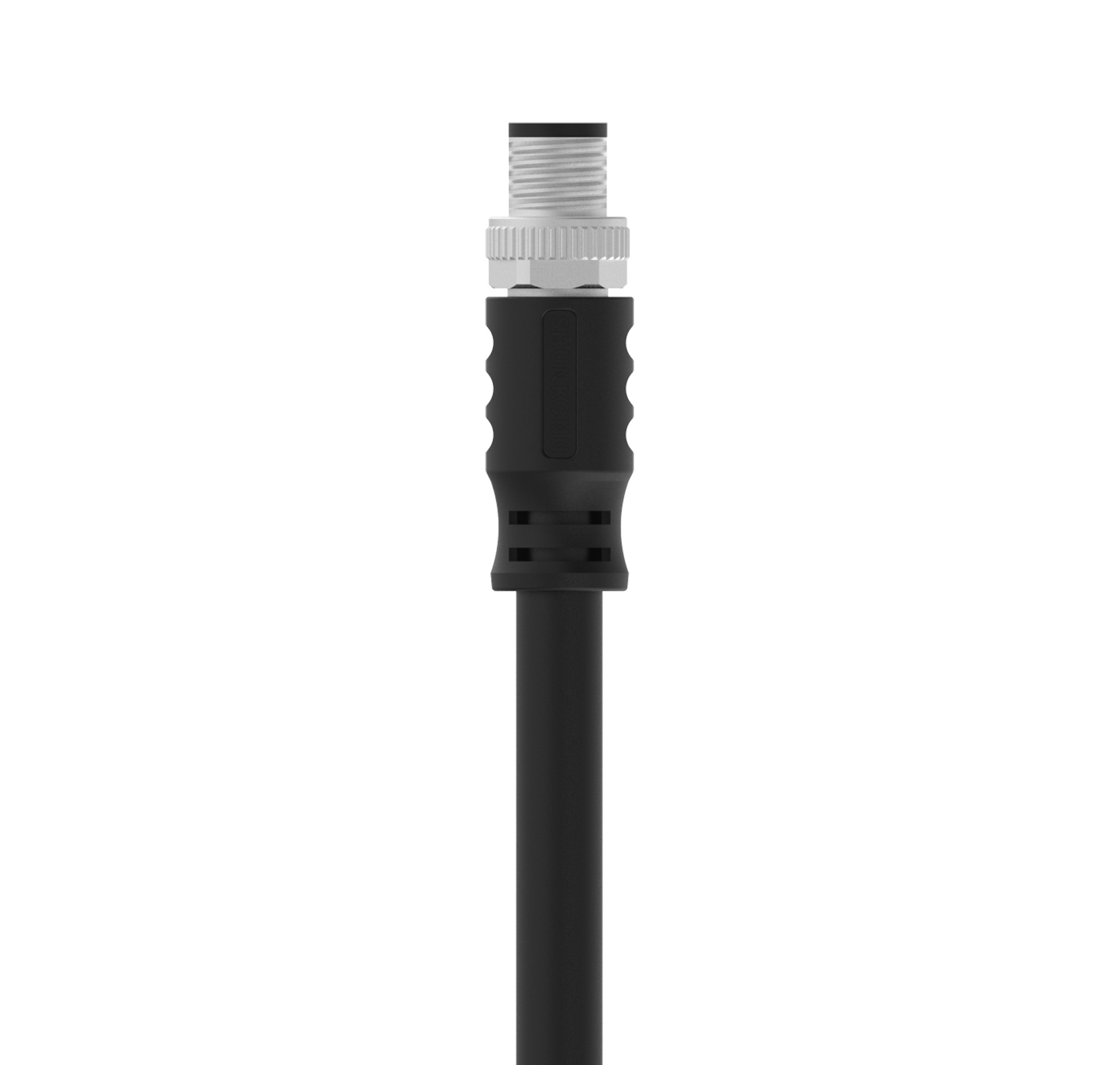

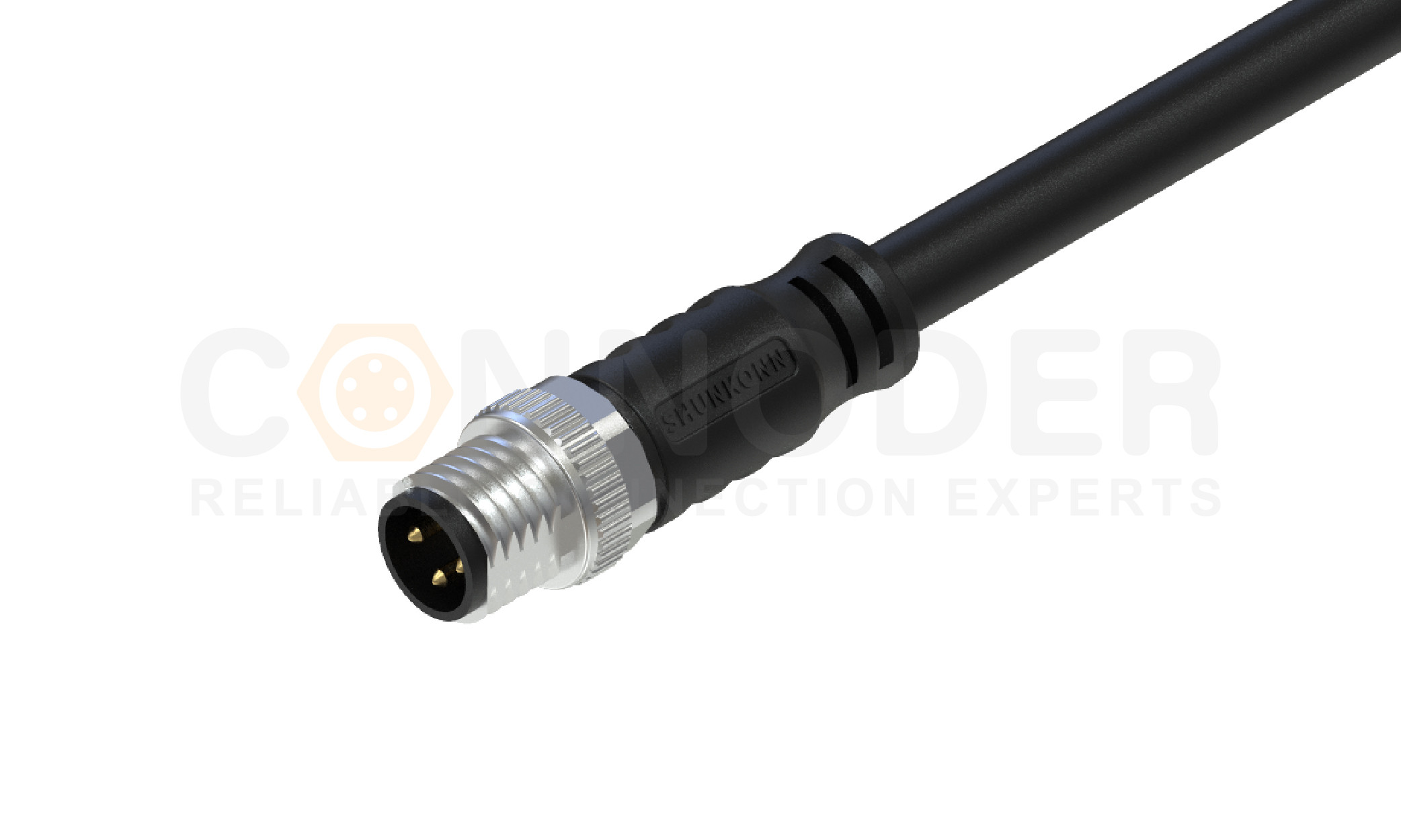

M8 Pre-Molded Cable Assemblies
The precision injection - molding of the connector and cable is completed before leaving the factory, ensuring consistency and high reliability.
Cable types: PVC, PUR.
Length customization: Custom lengths as specified by customers are supported, reducing on - site wiring and connection work.
- Circular Connectors
- Type
- M5 Circular Connector
- M8 Circular Connector
- M9 Circular Connector
- M12Circular Connector
- M14Circular Connector
- M16Circular Connector
- 7/8 " Circular Connector
- Shape
- Straight
- Right Angle
- Gender
- Female
- Male
- Number of cores
- 2 Pin
- 3 Pin
- 4 Pin
- 5 Pin
- 6 Pin
- 7 Pin
- 8 Pin
- 9 Pin
- 12 Pin
- 14 Pin
- 16 Pin
- 17 Pin
- 19 Pin
- 24 Pin
- 1+PE
- 2+PE
- 3+PE
- 4+PE
- 5+PE
- 6+PE
- 3+5 Pin
- 3+7 Pin
- 2+FE
- 3+FE
- 4+FE
- Foolproof type
- A
- B
- C
- D
- K
- L
- M
- P
- S
- T
- X
- General
- Protection level
- IP66
- IP67
- IP68
- Wiring method
- Solder type
- PCB type
- Screw type
- SMD type
- Installation type
- Rear Fastened
- Front Fastened
- Square Flange Socket
- Sockets
- SMD Sockets
- Plastic Assembled
- Metal Assembled
- Curved Metal Assembly
- Ordinary Overmolded Type
- Overmolded Type
- Shielding type
- Shielded
- Unshielded
- Yes/No Optional
- Housing material
- Metal
- Plastic
- Metal + Plastic
- Rated voltage
- 30V
- 48V
- 50V
- 60V
- 63V
- 125V
- 250V
- 630V
- 300V
- 800V
- Rated current
- 0.5A
- 1A
- 1.5A
- 2A
- 3A
- 4A
- 5A
- 6A
- 7A
- 8A
- 9A
- 12A
- 13A
- 16A
- Insulation resistance
- 5mΩ
- 8mΩ
M8 Circular Connector
14 results
ViewShowcase

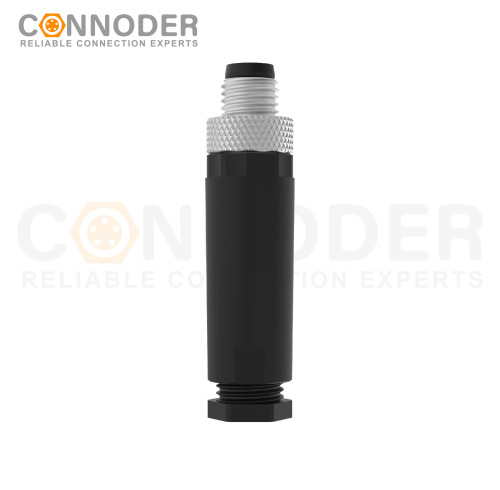

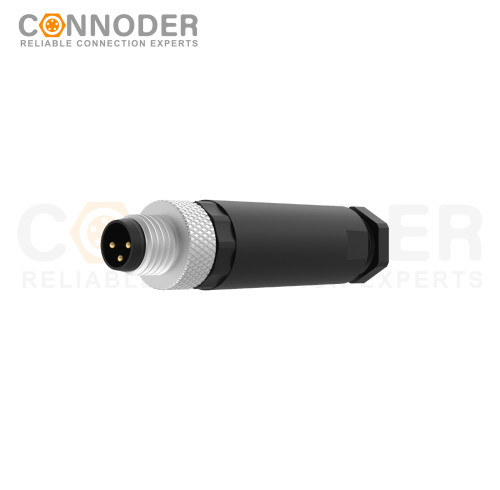

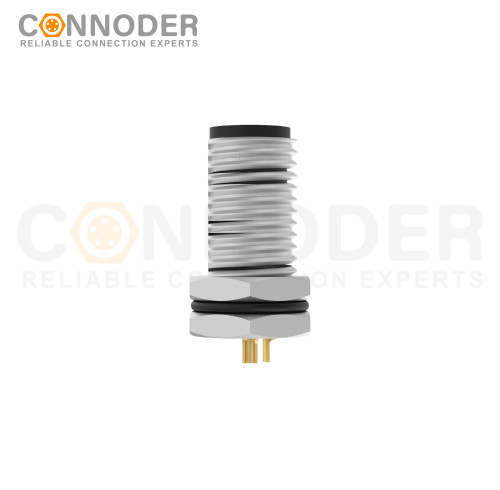

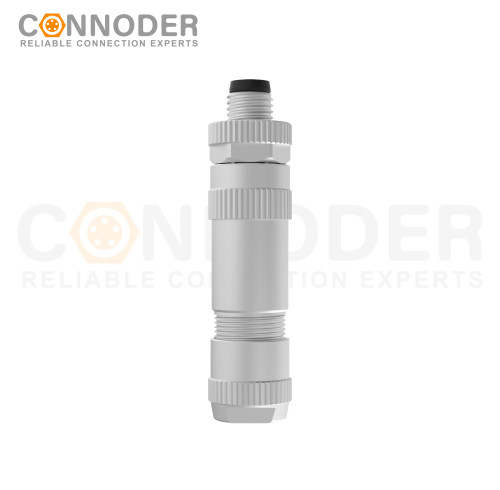

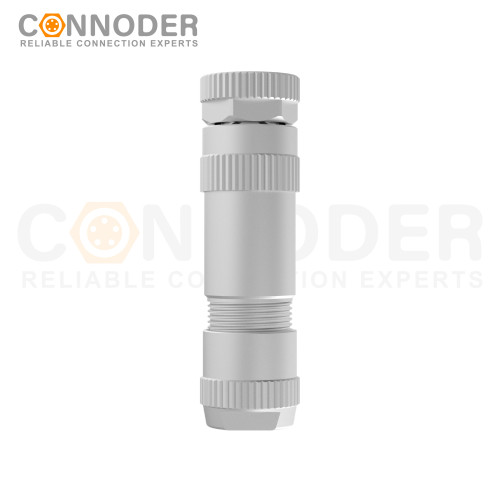

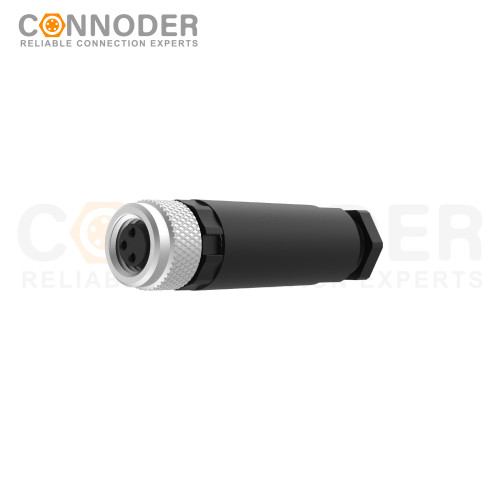

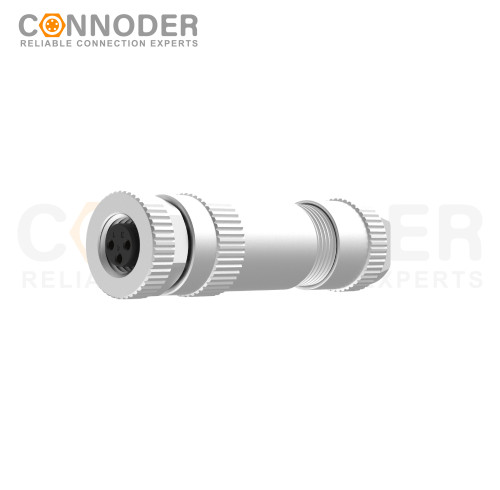

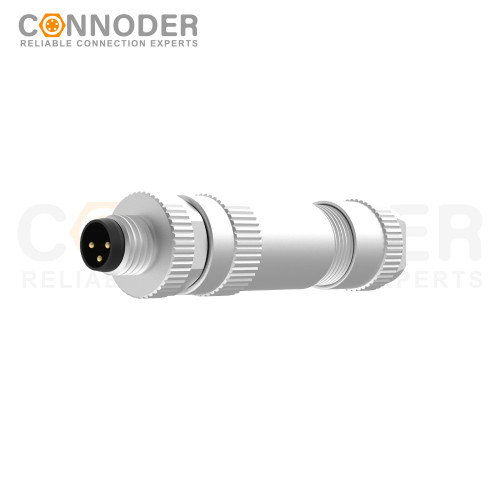

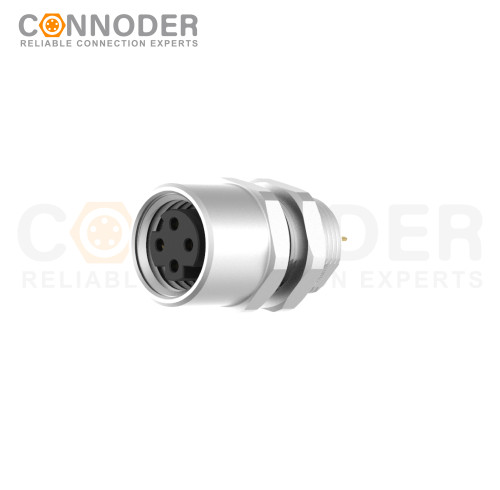

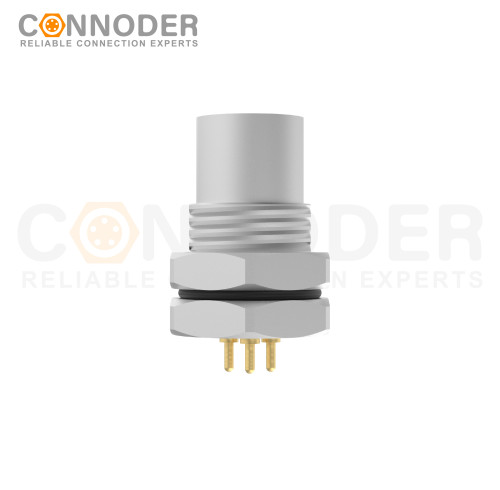

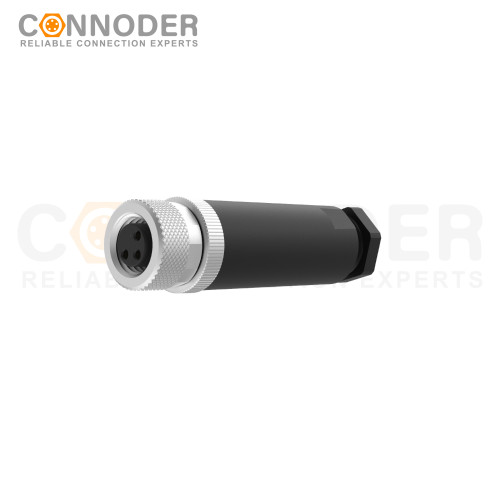

The M8A coded circular connector is known for its compact design, rugged construction and reliable performance.
The M8A coded circular connector is known for its compact design, rugged construction and reliable performance.
The M8A coded circular connector is known for its compact design, rugged construction and reliable performance.
The M8A coded circular connector is known for its compact design, rugged construction and reliable performance.
The M8A coded circular connector is known for its compact design, rugged construction and reliable performance.
The M8A coded circular connector is known for its compact design, rugged construction and reliable performance.
The M8A coded circular connector is known for its compact design, rugged construction and reliable performance.
The M8A coded circular connector is known for its compact design, rugged construction and reliable performance.
The M8A coded circular connector is known for its compact design, rugged construction and reliable performance.
The M8A coded circular connector is known for its compact design, rugged construction and reliable performance.
The M8A coded circular connector is known for its compact design, rugged construction and reliable performance.
The M8A coded circular connector is known for its compact design, rugged construction and reliable performance.
The M8A coded circular connector is known for its compact design, rugged construction and reliable performance.
The M8A coded circular connector is known for its compact design, rugged construction and reliable performance.
M8 Circular Connector
Downloads on The Topic of Circular Connectors
Applications of Circular Connectors
The compact size of the M8 connector makes it particularly suitable for space-constrained applications like factory automation machinery. In industrial automation, M8 connectors are commonly used to connect sensors, switches, actuators, PLCs, I/O boxes, and other components in industrial machinery, such as food and beverage processing, machine building, rubber and plastics, textile and printing presses, and in HVAC system valves. M8 connectors are found in RFID readers used in rail and industrial markets. In the automotive industry M8 connectors are used in lighting, sensors, and onboard electronics.
Industrial Automation
Connection of miniature sensors (proximity, photoelectric, capacitive, ultrasonic).
Signal transmission for micro-actuators.
Compact connections in robotic arms and precision automation equipment.
Robotics
Data and control signal interface in collaborative robots (cobots).
Encoder and feedback sensor connections in robotic joints.
Use in compact robotic grippers and vision modules.
Measurement & Testing Instruments
Connection of portable measuring devices (temperature, pressure, vibration).
Data acquisition systems requiring small and durable connectors.
Precision test and calibration tools.
Medical Technology
Miniature medical devices and diagnostic equipment.
Patient monitoring systems where compact and safe connections are critical.
Portable medical instruments requiring quick-connect interfaces.
Communication & Electronics
Antenna connections for small wireless modules.
Board-to-cable and cable-to-cable links in compact electronic devices.
Industrial handheld terminals and mobile controllers.
Circular Connector Technical Guide
Comparison of Pin Numbers and Coding Differences of Circular Connectors
Standard | DIN EN 61076 - 2 - 104, IEC Specifications, RoHS Environmental Protection |
Connection Types | Welding, PCB Dip - soldering, Pre - molded Cable (Straight/Right - angled) |
Number of Contacts | 2, 3, 4, 5, 6, 8 pins (Optional A/B/D coding) |
Contact Material | Copper alloy, gold - plated |
Rated Voltage | 60V AC/DC and 30V AC/DC |
Rated Current | Up to 4A |
Protection Level | IP67 (when properly connected) |
Operating Temperature | - 40°C to +85°C |
Installation Methods | Rear/Front of panel, Vertical/Inclined, Angle - adjustable |
Housing Material | Brass (nickel - plated), Engineering plastic (PA9T) |
Cable Sheath | PVC, PUR (optional) |
Pin Configuration and Electrical Parameters of M8 Connector
| Pins | 3A | 4A | 6A |
| Male |  |
 |
 |
| 8A | 5B | 4D | |
 |
 |
 |
|
| Pins | 3A | 4A | 6A |
| Female |  |
 |
 |
| 8A | 5B | 4D | |
 |
 |
 |

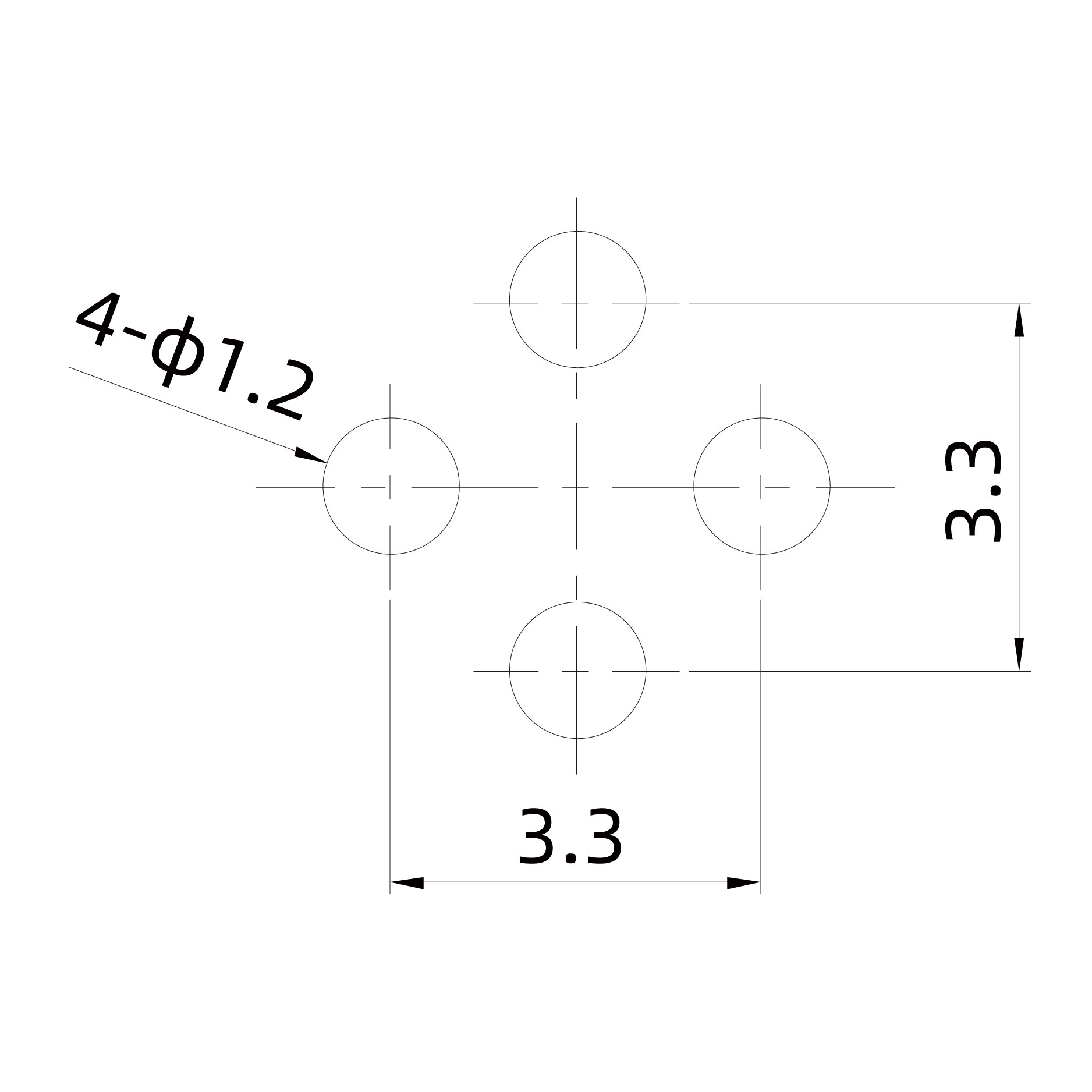

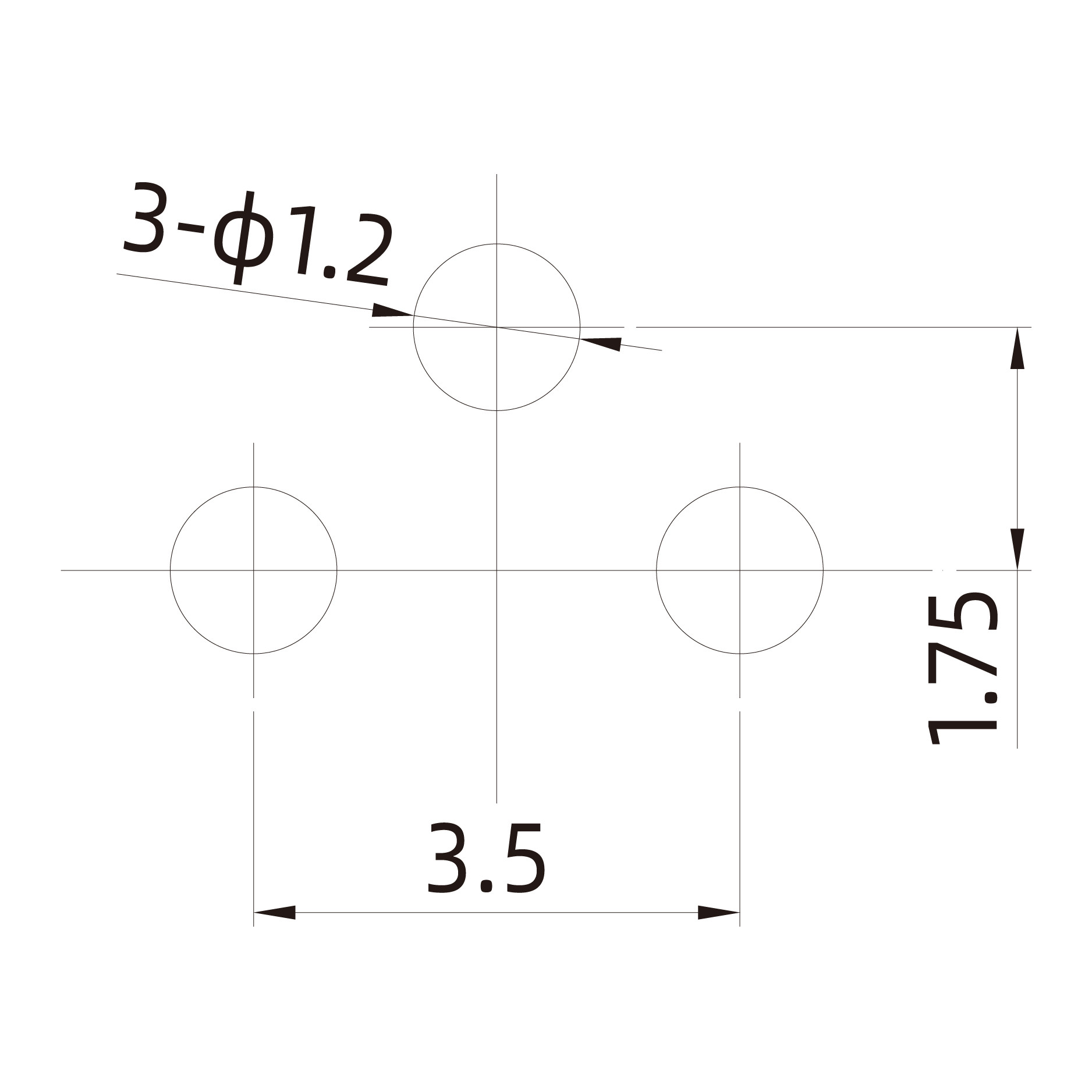

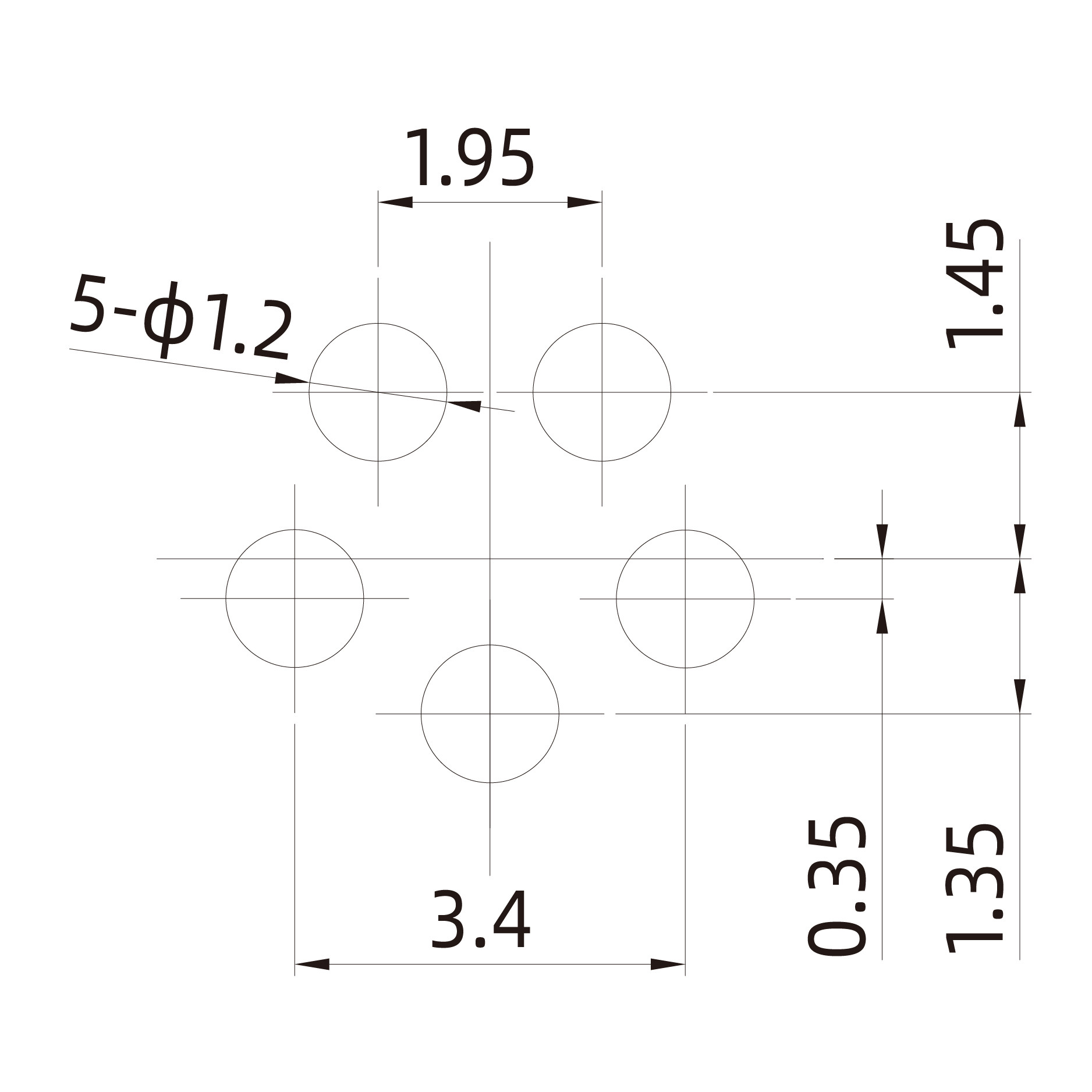

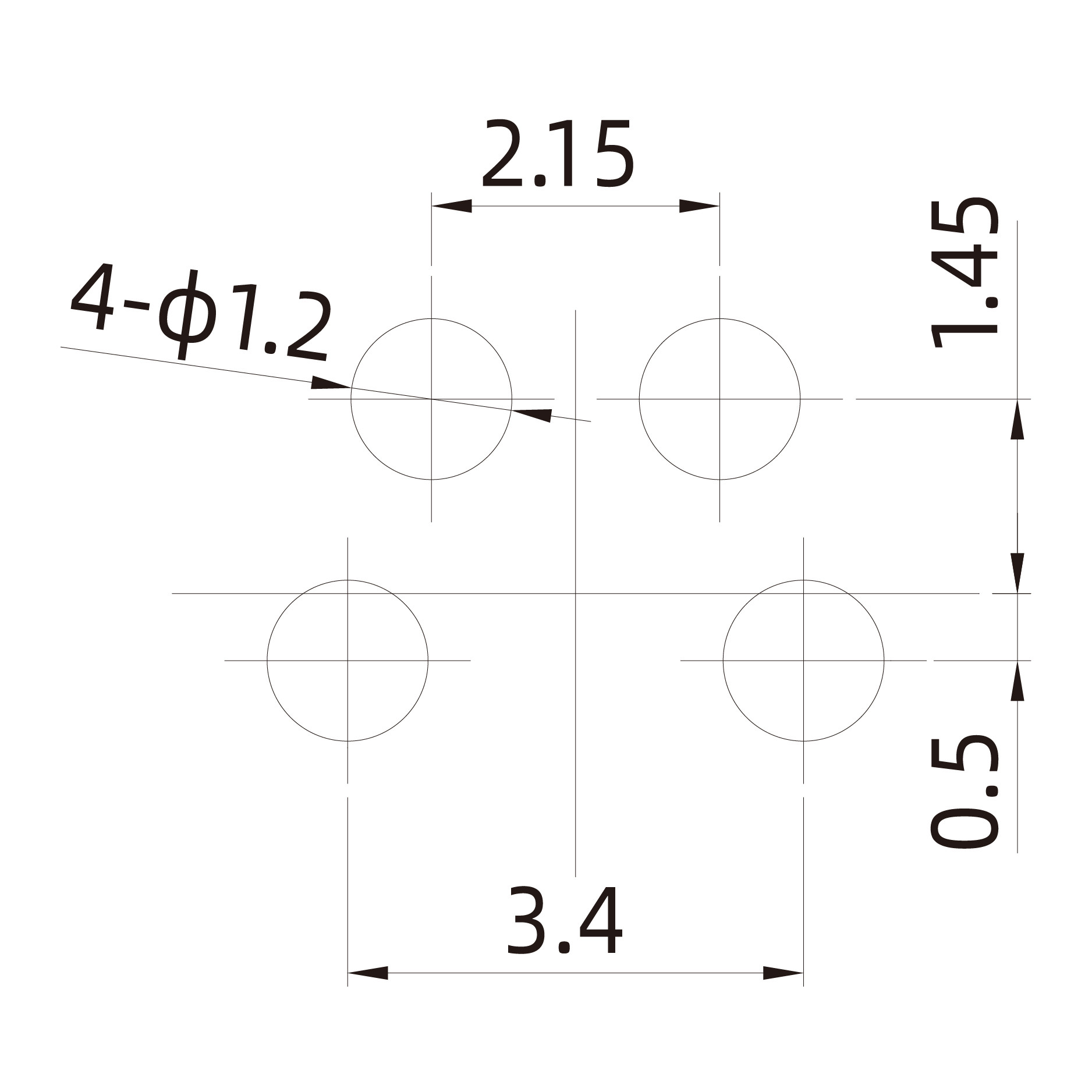

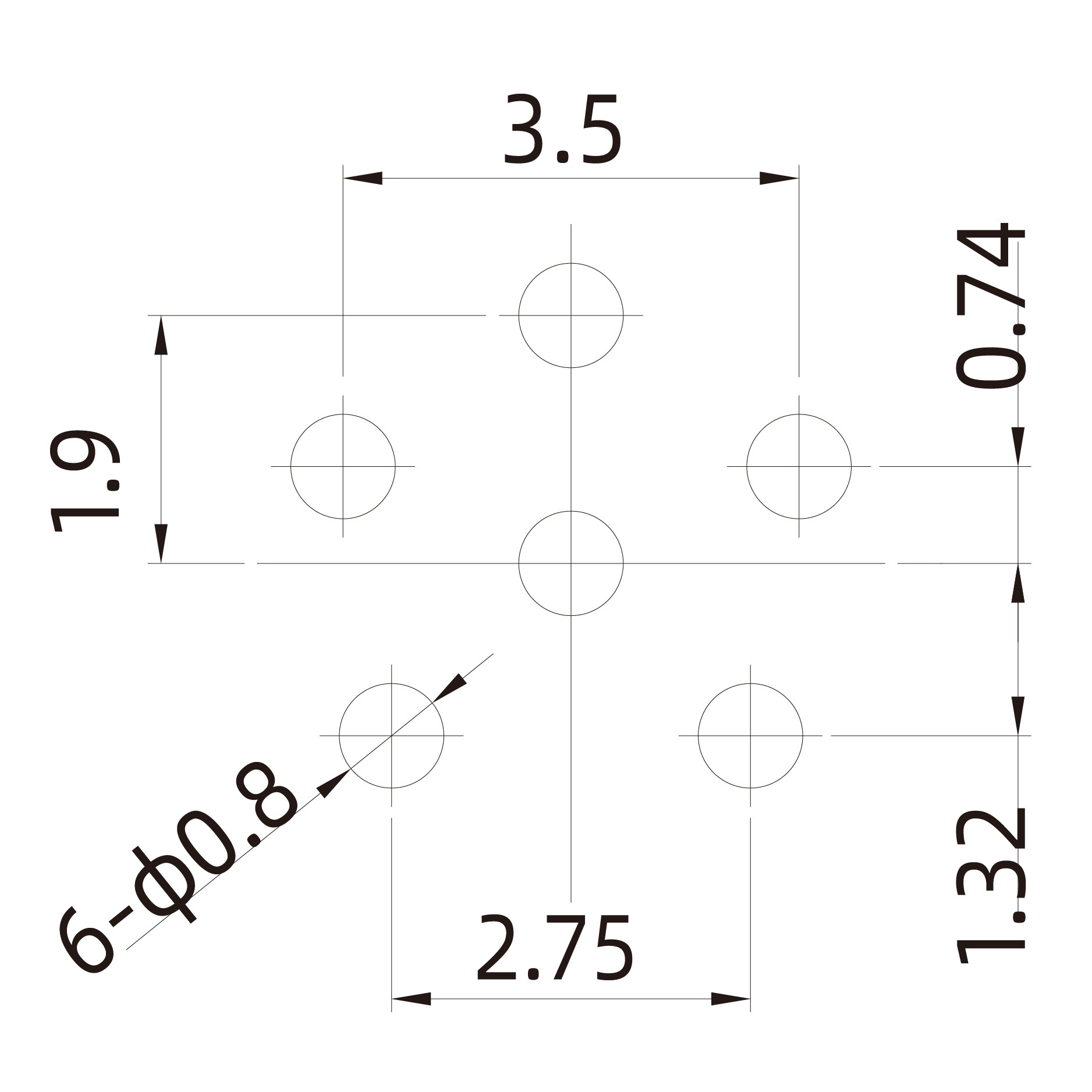

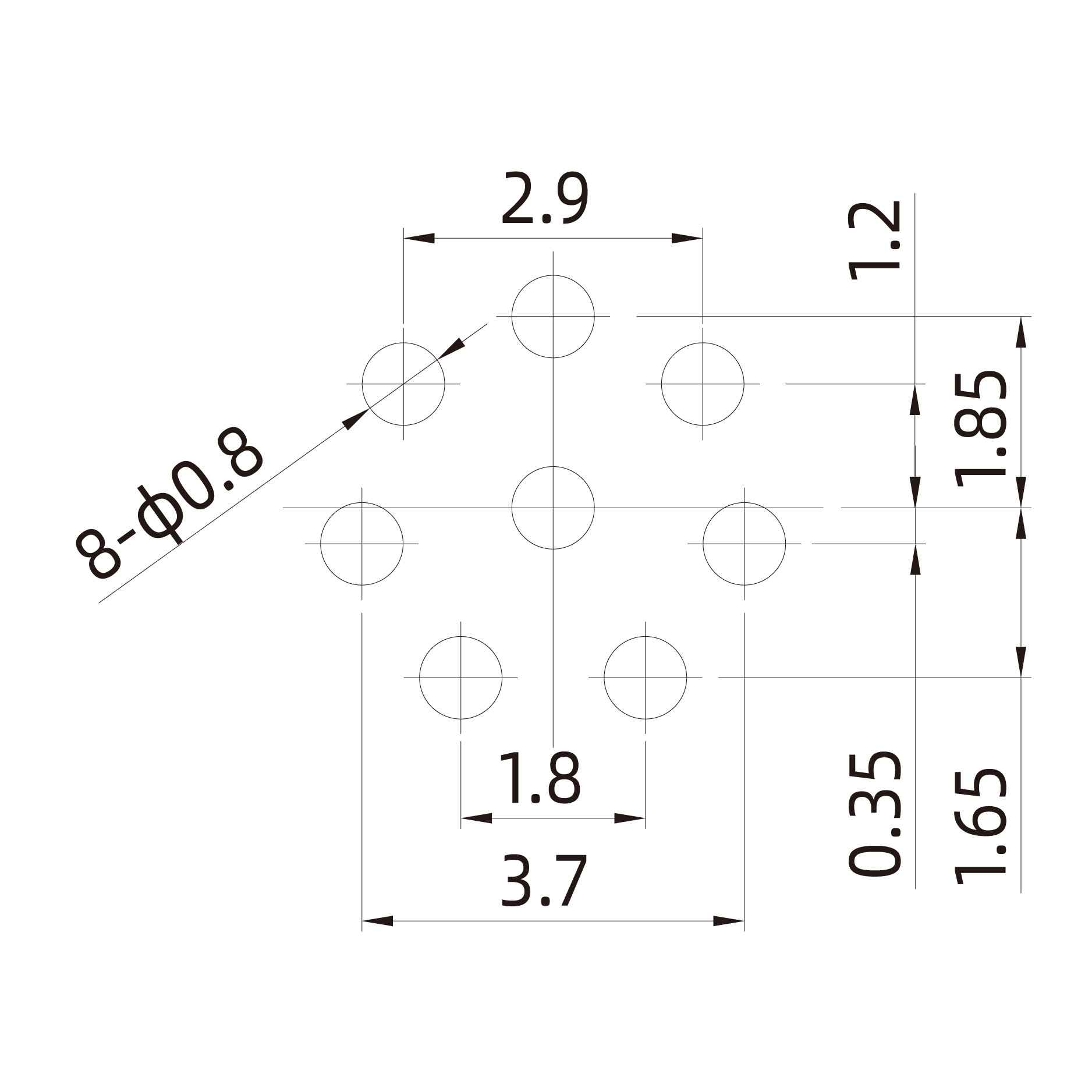

M8 PCB Pins Arrangement
3A Core Male
4A Core Male
6A Core Female
8A Core Female
5B Core Male
4D Core Male

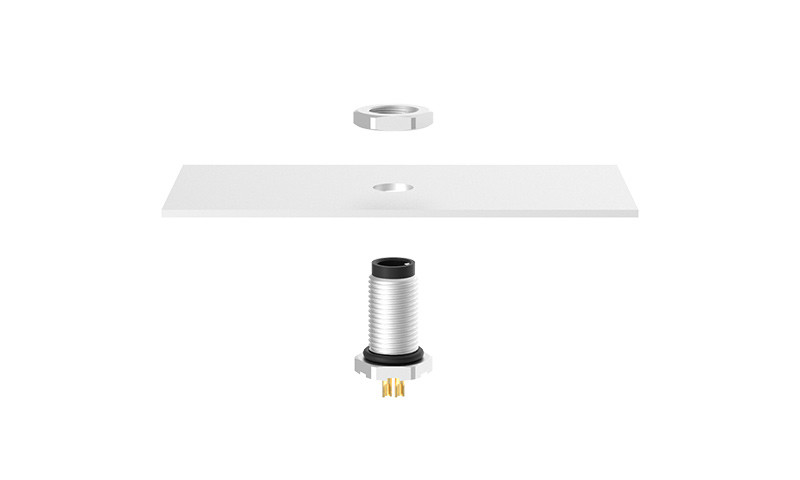

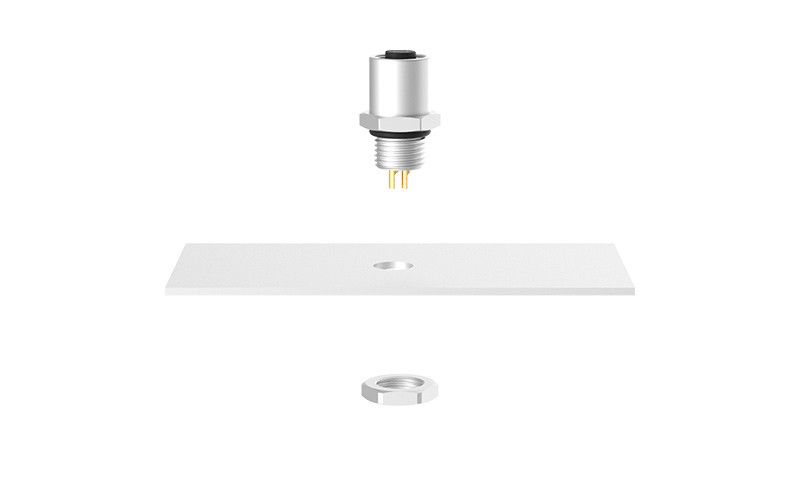

Different Installation Methods of Circular Connectors
M8 Circular Connector Front Fastened
M8 Circular Connector Rear Fastened
Different Opening Sizes of Circular Connectors

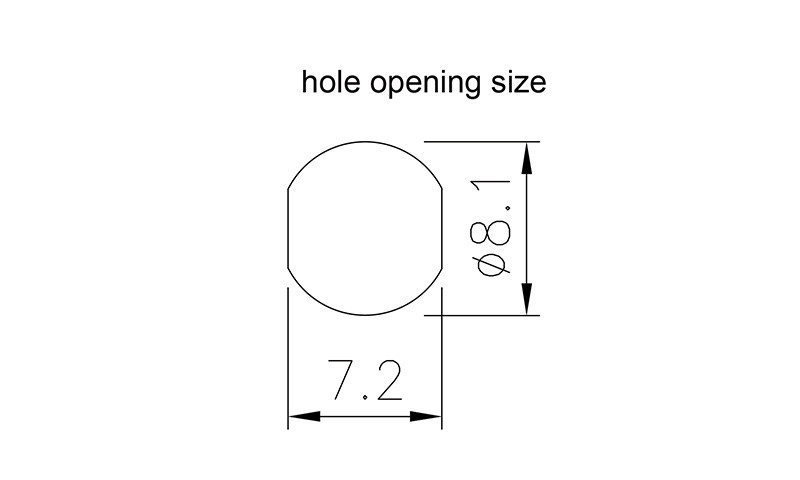

Opening Size for M8 Circular Connector with M8×1 Threads

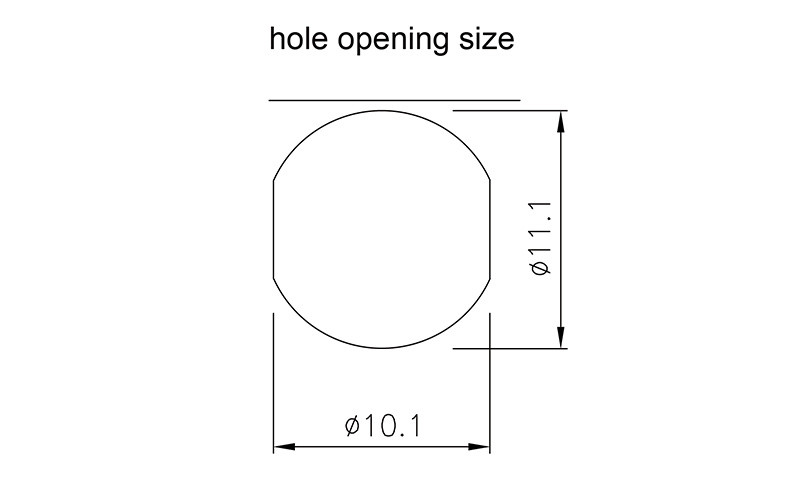

Opening Size for M8 Circular Connector with M11×1 Threads
