Introduction
In modern industrial automation systems, reliable connectivity is essential for ensuring stable power supply, signal transmission, and communication between devices. Two widely used connector types in industrial environments are the 7/8 circular connector and the M12 connector.
Although both connectors are common in factory automation and industrial equipment, they serve different purposes in automation architecture. Understanding their design structure, electrical performance, and application scenarios can help engineers select the right solution for their systems.
This guide explains the key differences between these two connectors and highlights how professional manufacturers such as Connoder provide reliable circular connector solutions for industrial automation and smart manufacturing.
Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.

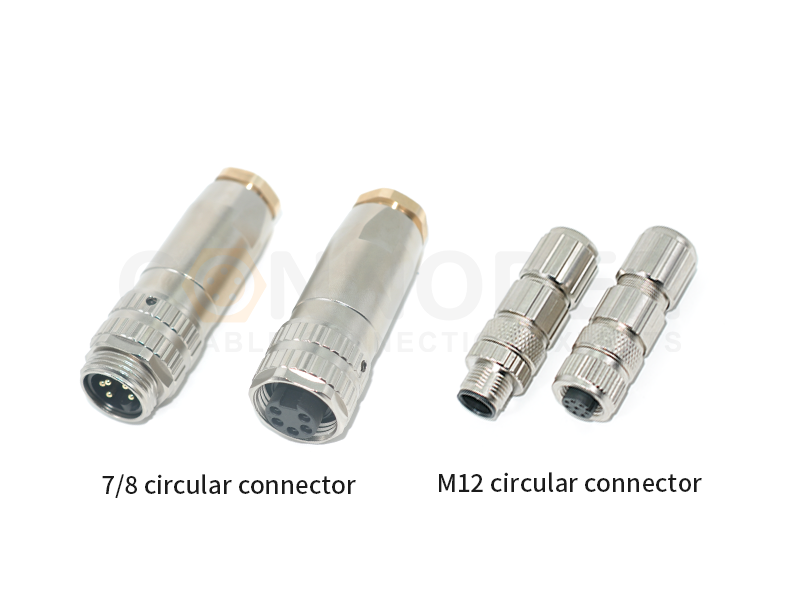

What Is a 7/8 Circular Connector?
The 7/8 circular connector is a rugged industrial connector designed primarily for power distribution and fieldbus communication systems. It features a 7/8-inch threaded coupling mechanism that provides a secure locking connection, ensuring stable electrical contact even in harsh industrial environments.
Because of its larger size and higher current capacity, the 7/8 connector is widely used in heavy-duty industrial equipment where reliable power transmission is required.
Key Features
7/8-inch threaded locking mechanism
High current capacity
Excellent vibration resistance
Durable construction for harsh industrial environments
Available in 3-pin, 4-pin, and 5-pin configurations
Typical Applications
Industrial power distribution
DeviceNet fieldbus systems
Industrial automation equipment
Solenoid valve connections
Heavy machinery and manufacturing systems

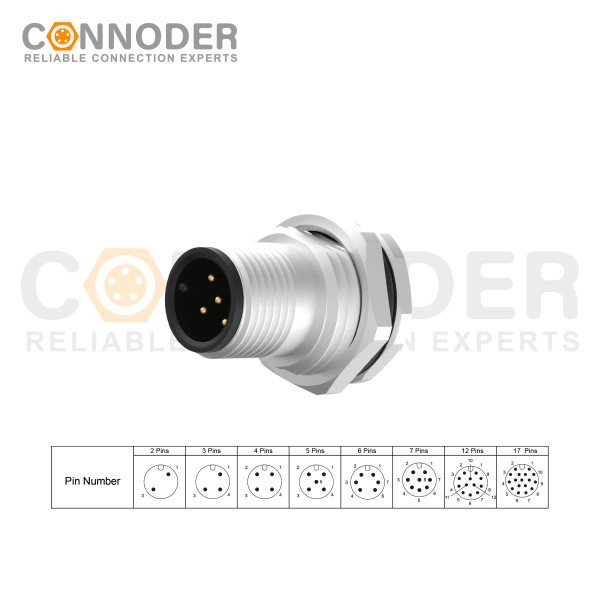

What Is an M12 Connector?
The M12 connector is one of the most widely used connectors in industrial automation. It features a 12 mm metric threaded coupling system and is designed for reliable connections in compact installations.
Unlike the 7/8 connector, the M12 connector supports multiple coding types, allowing it to transmit signals, power, and high-speed industrial Ethernet data. Because of its versatility and compact design, it has become a standard interface in modern factory automation systems.
Key Features
12 mm threaded locking mechanism
Multiple coding types (A-coded, B-coded, D-coded, X-coded, L-coded)
Compact design for limited installation space
Suitable for signal, power, and data transmission
High protection ratings such as IP67 or IP68
Typical Applications
Industrial sensors and actuators
PLC and distributed I/O systems
Industrial Ethernet networks
Robotics and automation equipment
Machine vision and smart manufacturing systems
Key Differences Between 7/8 Circular Connector and M12 Connector
While both connectors are designed for industrial environments, they differ significantly in size, electrical performance, and application focus.
1. Mechanical Size and Design
| Feature | 7/8 Connector | M12 Connector |
| Thread Size | 7/8 inch | 12 mm |
| Connector Size | Larger | Compact |
| Installation | Heavy industrial equipment | Compact automation machines |
2. Electrical Performance
| Parameter | M12 Connector | 7/8 Connector |
| Current Rating | Up to 16A | Up to 21A |
| Voltage Rating | Lower | Up to 600V |
| Primary Use | Signal & Data | Power Distribution |
How Both Connectors Work Together in Automation Systems
In modern industrial networks, it is common to use both connectors within the same system architecture. Typically:
M12 connectors are used for signal and data communication
7/8 connectors are used for power distribution
This combination improves system modularity, simplifies installation, and enhances overall system reliability in industrial automation environments.
Why Choose Connoder Circular Connectors?
Selecting a reliable connector supplier is essential for maintaining stable industrial systems. Connoder is a professional manufacturer specializing in industrial circular connectors and cable assemblies for automation equipment worldwide.
Learn more about our company here: Connoder Company Introduction
Our Product Range
M5 circular connectors
M8 circular connectors
M9 circular connectors
M12 connectors
7/8 circular connectors
Our Advantages
High durability for harsh industrial environments
IP67 / IP68 waterproof protection
Stable signal and power transmission
Compliance with international connector standards
OEM and customized cable assembly solutions
Connoder connectors are widely used in industrial automation, robotics, smart manufacturing, sensor networks, and machine vision systems.
Conclusion
Both the 7/8 circular connector and the M12 connector play important roles in industrial automation systems.
7/8 connectors are ideal for high-power industrial applications.
M12 connectors provide flexible solutions for signal, sensor, and industrial Ethernet communication.
By understanding their differences and application scenarios, engineers can design more reliable and efficient automation systems. As a trusted manufacturer of industrial connectors, Connoder continues to deliver high-quality circular connector solutions to support modern smart factories and industrial connectivity.
What is the difference between a 7/8 circular connector and an M12 connector?
The main difference between a 7/8 circular connector and an M12 connector lies in their size, electrical capacity, and application purpose.
7/8 connectors are larger and typically used for high-power industrial applications, while M12 connectors are more compact and widely used for signal transmission, sensors, and industrial Ethernet communication in automation systems.
When should you use a 7/8 circular connector?
A 7/8 circular connector should be used when an application requires high current capacity, durable connections, and reliable power distribution.
They are commonly used in DeviceNet networks, heavy machinery, and industrial power systems where robust electrical connections are necessary.
What are M12 connectors commonly used for in industrial automation?
M12 connectors are commonly used for sensor and actuator connections, PLC communication, industrial Ethernet networks, and robotics systems.
Their compact design and multiple coding options allow them to support signal, data, and power transmission in modern factory automation environments.
Can 7/8 connectors and M12 connectors be used in the same system?
Yes. In many industrial automation systems, both connectors are used together.
Typically, M12 connectors handle communication and data signals, while 7/8 connectors provide power distribution to sensors, actuators, and field devices.
