Durability Testing and Design Optimization of M16 Connectors

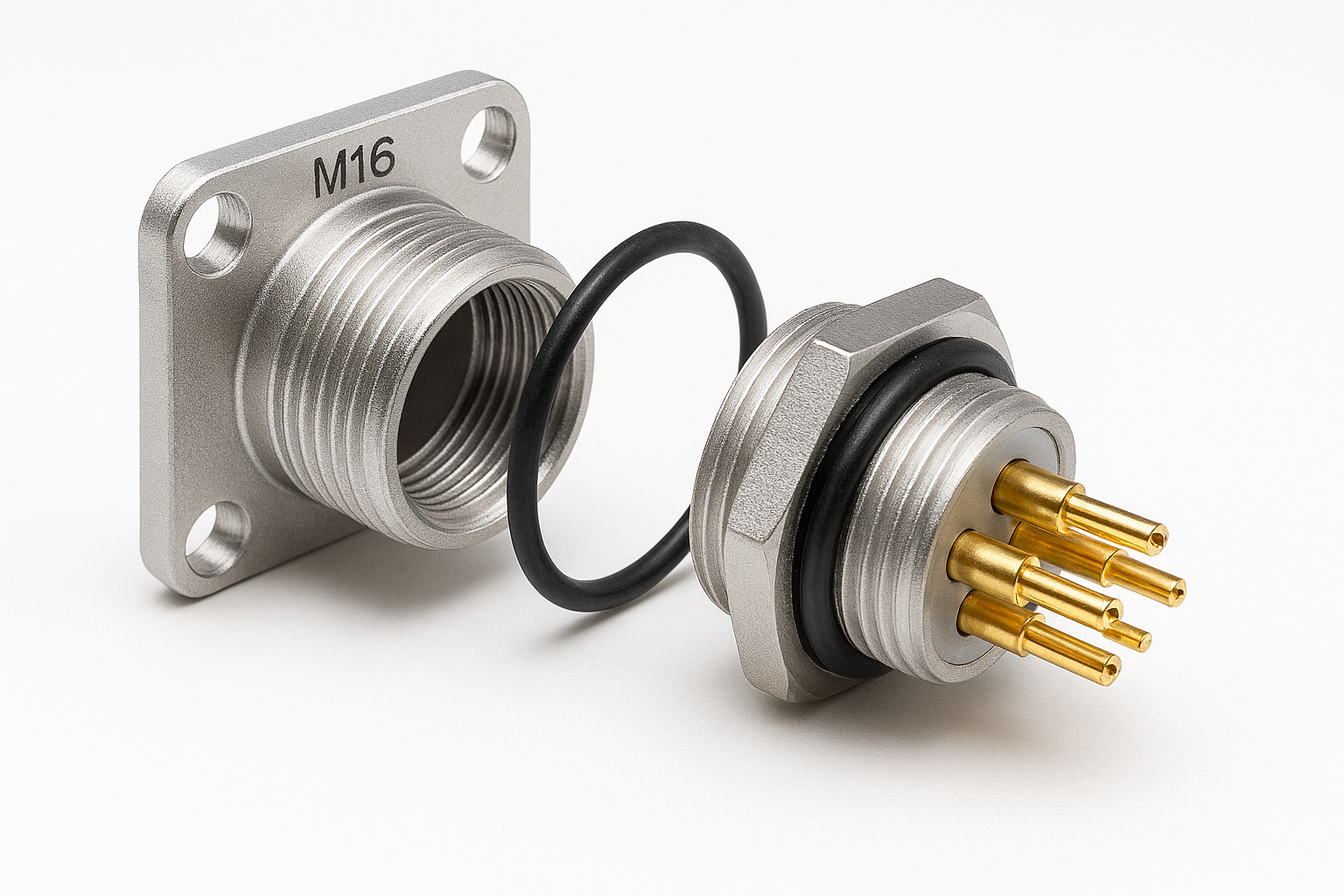

Introduction: Why Durability and Design Matter for M16 Circular Connector Panel Mounts
In the world of industrial automation and harsh environments, M16 circular connector panel mounts are trusted for their compact size, versatility, and reliability. However, when these connectors are exposed to vibration, temperature extremes, moisture, and mechanical stress, durability becomes a critical factor.
At Connoder, we don’t just manufacture connectors—we engineer solutions for longevity and performance. Learn more about our company and innovation approach here.
Key Challenges: Why Durability Testing Is Essential
According to industry best practices and insights from leading technical resources, failure in panel-mounted M16 connectors often occurs due to:
- Contact Wear & Corrosion – Fretting and plating degradation increase resistance over time.
- Seal Degradation – O-rings and gaskets lose elasticity under thermal cycling or chemical exposure.
- Mechanical Loosening – Improper torque or vibration can compromise panel seals and thread engagement.
- Ingress Protection Failures – IP ratings like IP67 depend on proper assembly and system-level sealing.

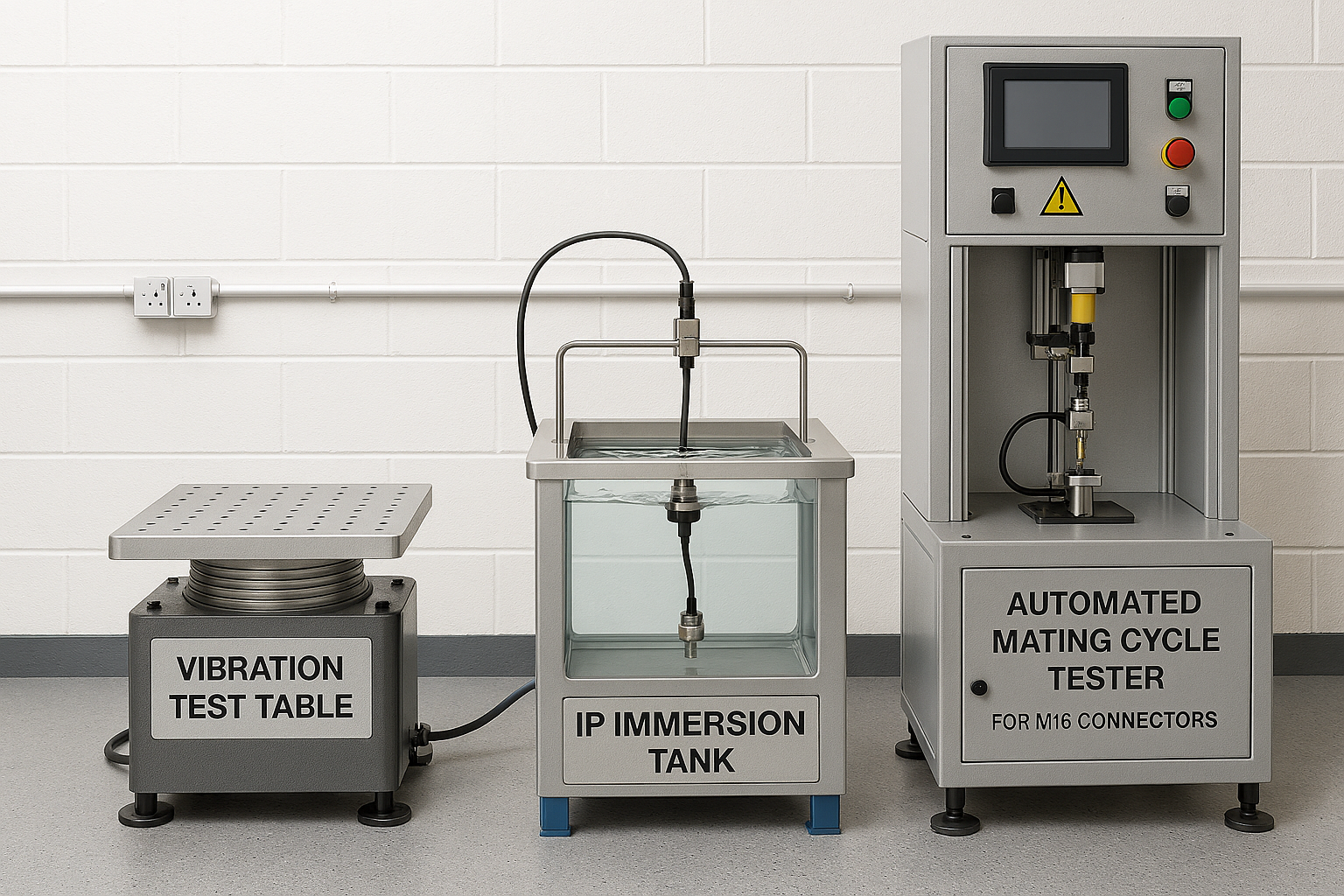

Comprehensive Durability Testing for M16 Panel Mount Connectors
Based on leading engineering recommendations, here are the core durability tests that should be part of every qualification plan:
Mating Cycle Test
Condition: 500 to 5000 mating cycles depending on application.
Goal: Verify contact resistance stability and mechanical locking integrity.
Thermal Cycling
Condition: −40°C to +85°C across 10–100 cycles.
Goal: Ensure seals and materials withstand expansion and contraction without leaks.
Ingress Protection Test (IP67/IP68)
Condition: Immersion at 1m depth for 30 minutes when fully mated.
Goal: Confirm water and dust sealing under real-world conditions.
Vibration & Shock Testing
Condition: IEC 60068 vibration profiles for automotive or industrial environments.
Goal: Ensure mechanical coupling remains secure under dynamic loads.

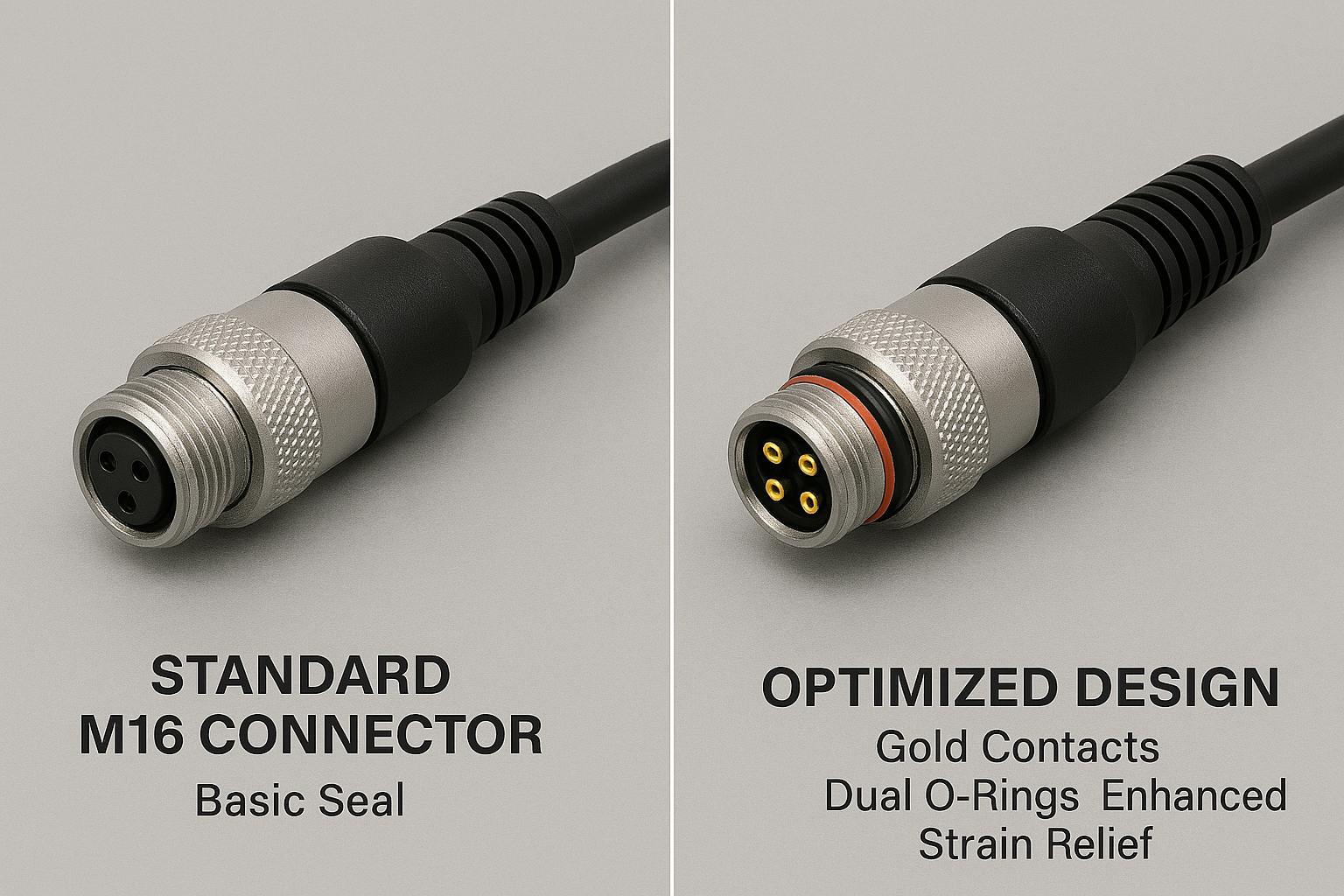

Design Optimization Strategies
Durability is not just tested—it’s engineered. Here are practical optimization techniques based on test outcomes:
- Enhanced Contact Plating: Use gold or silver plating to reduce wear and corrosion.
- Advanced Seal Materials: Switch to FKM or silicone elastomers for chemical and thermal resistance.
- Thread Locking Features: Employ jam nuts or integrated lock washers for anti-vibration security.
- Improved Strain Relief: Add backshells or integrated clamps to reduce cable stress.
Why Choose Connoder for M16 Circular Connector Panel Mount Solutions?
At Connoder, we combine precision engineering with rigorous testing protocols to ensure our M16 panel-mount connectors exceed industry durability benchmarks. Our products are:
- Rated IP67/IP68 for harsh environments.
- Built with premium contact materials and corrosion-resistant plating.
- Supported by custom design services for unique panel mounting requirements.
Explore Connoder’s full M16 connector range and discover why leading automation brands trust us for reliability.
Final Thoughts
When performance in the field depends on connectivity, durability testing and smart design optimization are not optional—they’re essential. By choosing Connoder as your partner, you gain more than a connector—you gain a commitment to quality, safety, and innovation.
Call to Action:
- Contact Connoder for technical consultation and custom design services.
- Download our Free Durability Test Matrix PDF.
- Request a sample of M16 panel-mount connectors for your next project.
