Introduction
In modern industrial automation, reliable connectivity is essential for stable communication between sensors, actuators, and control systems. Understanding the wiring and pins of M8 circular connectors helps engineers ensure efficient signal transmission, reduce downtime, and improve system reliability.
This guide explains M8 connector pin arrangements, wiring standards, coding types, and practical installation methods specifically for industrial sensor applications.

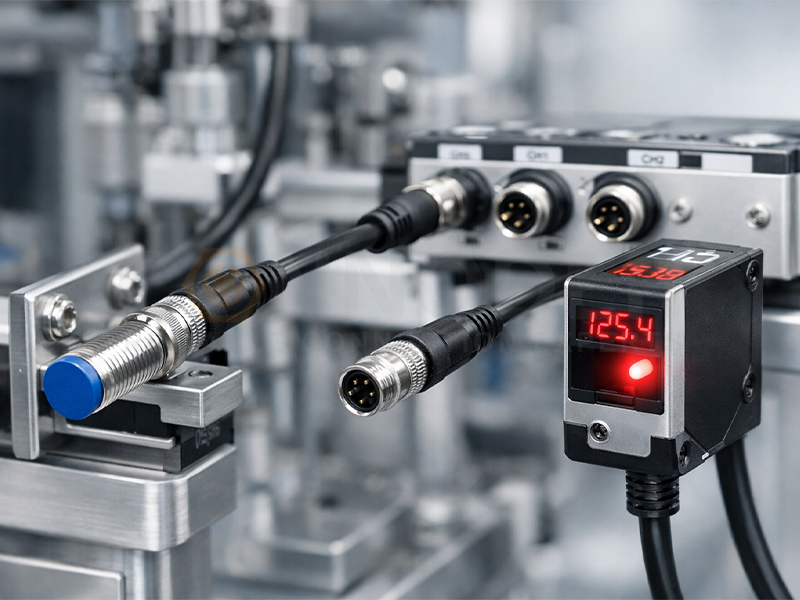

M8 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
What Are M8 Circular Connectors?
M8 connectors are compact circular connectors with an 8 mm locking thread, designed for industrial environments where space is limited. They provide secure, vibration-resistant connections widely used in:
Proximity sensors
Photoelectric sensors
PLC control systems
Robotics and automation equipment
CONNODER focuses on manufacturing high-performance M8 connectors with IP67/IP68 protection, ensuring durability in harsh industrial environments.
M8 Connector Pin Arrangement and Configurations
The pin arrangement (pinout) defines how electrical signals are distributed inside the connector. Common configurations include:
3-pin: Basic sensor connections
4-pin: Standard industrial sensors
5-pin: Advanced signal control
6/8-pin: Data and communication systems
Standard 4-Pin M8 Wiring (A-Coded)
Pin 1 (Brown): Power (+V)
Pin 3 (Blue): Ground (0V)
Pin 4 (Black): Signal Output
Pin 2 (White): Auxiliary Signal
This standardized configuration ensures compatibility across different devices and simplifies installation.
Understanding M8 Connector Coding Types
Coding prevents incorrect connections between incompatible devices. The most common types include:
A-coded: Sensor and actuator applications
B-coded: Fieldbus communication systems
D-coded: Industrial Ethernet and data transmission
How to Wire M8 Connectors for Industrial Sensors
Proper wiring ensures reliable sensor performance and system stability. Follow these steps:
Strip the cable jacket carefully
Identify wire colors according to standards
Match wires to correct pin numbers
Secure connections and assemble the connector
Test continuity and signal output
For sensor systems, always confirm whether the wiring follows PNP or NPN logic to avoid malfunction.
Color Codes and Wiring Standards
Standardized color coding simplifies installation and reduces errors:
Brown (BN): Power
Blue (BU): Ground
Black (BK): Signal
White (WH): Auxiliary
Common Wiring Mistakes and Troubleshooting
Incorrect pin assignments
Mixing incompatible coding types
Loose or unstable connections
Using non-industrial-grade cables
Choosing high-quality connectors from CONNODER can significantly reduce these issues and improve long-term reliability.
Why Choose CONNODER M8 Connectors?
CONNODER is a trusted manufacturer specializing in industrial connector solutions:
Full range of M8 connectors (3–8 pin, A/B/D coded)
IP67/IP68 waterproof and dustproof design
Custom cable assemblies available
Strict quality control and international standards compliance
Applications of M8 Connectors in Industrial Automation
Sensor-to-PLC connections
Robotics and automation systems
Packaging and assembly lines
Smart manufacturing and Industry 4.0
Conclusion
Mastering the wiring and pin arrangement of M8 circular connectors is essential for ensuring reliable industrial operations. By following standardized wiring practices and selecting high-quality components, businesses can significantly improve system performance.
If you are looking for dependable M8 connector solutions, CONNODER is your ideal partner for industrial connectivity.
What is the standard wiring for a 4-pin M8 connector?
The standard 4-pin M8 connector (A-coded) wiring typically follows this configuration:
Pin 1 (Brown): Power (+V)
Pin 3 (Blue): Ground (0V)
Pin 4 (Black): Signal output
Pin 2 (White): Auxiliary signal
This standardized layout ensures compatibility across most industrial sensors and automation systems.
How do you identify the pins on an M8 connector?
Pins on an M8 connector are identified by numbers molded into the connector or shown in pinout diagrams. You can also identify them using standard color codes (Brown, Blue, Black, White) and orientation guides to match each wire to the correct pin.
What is the difference between A-coded and D-coded M8 connectors?
A-coded M8 connectors are mainly used for sensors and actuators, while D-coded connectors are designed for high-speed data transmission such as Industrial Ethernet. They have different keying structures to prevent incorrect connections.
What are common mistakes when wiring M8 connectors?
Common mistakes include incorrect pin assignments, mixing different coding types, loose wire connections, and using non-industrial-grade cables. These issues can lead to signal loss or system failure.
