Introduction
In today’s rapidly evolving industrial landscape, reliable connectivity is critical. From automation systems to smart manufacturing, M8 circular connectors have become a foundational component for engineers seeking compact, durable, and high-performance solutions.
An M8 circular connector features an 8mm threaded coupling interface, designed for space-constrained environments while maintaining stable signal and power transmission.

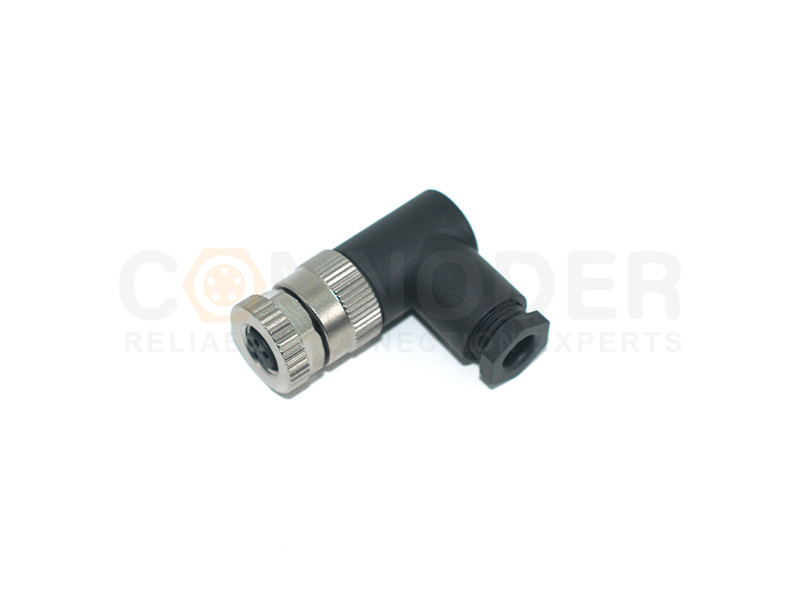

M8 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
Core Features of M8 Circular Connectors
✔ Compact and Space-Saving Design
M8 connectors are ideal for tight installation spaces, especially in sensors and compact industrial devices.
✔ Secure Threaded Locking
The screw-locking mechanism ensures stable connections even in vibration-heavy environments.
✔ Multiple Pin Configurations
3-pin
4-pin
5-pin
6-pin
8-pin
✔ High Protection Ratings
Available with IP65, IP67, and IP68 ratings, suitable for harsh environments.
Structure and Classification
By Mounting Type
Cable connectors
Panel mount connectors
PCB mount connectors
By Coding Type
A-coded (sensors & actuators)
B-coded (fieldbus systems)
D-coded (industrial Ethernet)
By Design Style
Straight connectors
Right-angle connectors
Shielded connectors
Field-wireable connectors
Technical Specifications
| Specification | Typical Value |
Thread Size | M8 × 1 |
Voltage | 30V – 60V |
| Current | 1.5A – 4A |
| Temperature | -25°C to +100°C |
| Protection | IP67 / IP68 |
Applications
Industrial automation systems
Robotics and control systems
Transportation and automotive
Manufacturing equipment
Electronics and LED systems
How to Choose the Right M8 Connector
Define application (signal, data, or power)
Select appropriate pin count
Evaluate environmental conditions
Choose cable material (PVC or PUR)
Consider shielding for EMI protection
Why Choose Connoder
Connoder is a professional manufacturer specializing in high-performance circular connectors for industrial applications.
Strong R&D capabilities
Premium materials (nickel-plated brass, gold-plated contacts)
Custom OEM/ODM solutions
Strict quality control standards
Advantages and Limitations
Advantages
Compact and lightweight
Easy installation
High reliability
Strong environmental resistance
Limitations
Lower current capacity than M12 connectors
Not suitable for high-power applications
Conclusion
M8 circular connectors are essential components in modern industrial systems, offering the perfect balance between size, performance, and durability. Choosing a trusted supplier like Connoder ensures you receive reliable, customizable, and high-quality connectivity solutions.
What is an M8 circular connector?
An M8 circular connector is a compact industrial connector with an 8mm threaded locking interface. It is commonly used for signal and low-power transmission in applications such as sensors, actuators, and automation systems due to its reliability and space-saving design.
What are the common pin configurations of M8 connectors?
M8 connectors are available in multiple pin configurations, typically including 3-pin, 4-pin, 5-pin, 6-pin, and 8-pin options. The choice depends on the electrical requirements of the application, such as signal complexity and power needs.
Where are M8 circular connectors commonly used?
M8 connectors are widely used in industrial automation, robotics, manufacturing equipment, transportation systems, and sensor networks. Their compact size makes them ideal for tight installation spaces and high-density environments.
How do you choose the right M8 connector?
To choose the right M8 connector, consider factors such as pin count, application type (signal, data, or power), environmental conditions (IP rating), cable material (PVC or PUR), and whether shielding is required for EMI protection.
