Introduction
In modern industrial automation, selecting the correct M8 connector coding type is critical for ensuring reliable communication, preventing mismatching, and maintaining long-term equipment performance.

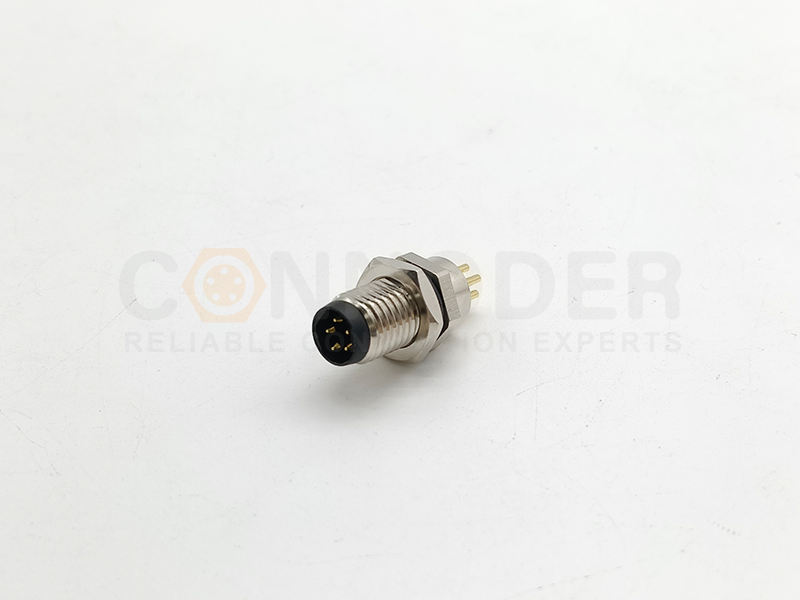

M8 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
What Is M8 Connector Coding?
M8 connector coding refers to the mechanical keying structure inside the connector interface. Different coding types prevent incorrect mating between connectors carrying different signals, protocols, or power requirements.
By using unique coding structures, M8 connectors help avoid installation mistakes, communication failures, equipment damage, and costly downtime in industrial environments.
Benefits of M8 Connector Coding:
Prevents incorrect connections
Improves system reliability
Protects equipment from damage
Supports protocol compatibility
Reduces maintenance costs
Overview of M8 Connector Coding Types
| Coding Type | Pins | Application | Protocol |
| A-Coded | 3/4/5/6/8 | Sensors & Actuators | IO-Link, Analog, Digital |
| B-Coded | 5 | Fieldbus Systems | PROFIBUS-DP |
| D-Coded | 4 | Industrial Ethernet | PROFINET, EtherCAT |
M8 A-Coded Connectors
The Most Common M8 Connector Type
A-coded M8 connectors are the most widely used coding type in industrial automation. They are commonly found in sensors, actuators, IO-Link devices, and automation equipment.
Photoelectric Sensors
Proximity Sensors
Temperature Sensors
Pressure Sensors
IO-Link Devices
Solenoid Valves
Typical A-Coded Pin Assignment
Pin 1 ：+24V DC
Pin 3 ：0V
Pin 4 ：Signal / IO-Link
M8 B-Coded Connectors
B-coded M8 connectors are specifically designed for PROFIBUS-DP communication networks and fieldbus applications.
PLC Communication
Factory Automation
Fieldbus Networks
Process Control Systems
M8 D-Coded Connectors
D-coded M8 connectors are optimized for Industrial Ethernet communication and support protocols such as PROFINET, EtherCAT, and EtherNet/IP.
Industrial Ethernet
Robotics
Machine Vision
Industrial IoT
Distributed I/O Systems
About CONNODER – Your Trusted M8 Connector Manufacturer
CONNODER specializes in industrial connectivity solutions including M8 connectors, M12 connectors, waterproof connectors, Industrial Ethernet connectors, and custom cable assemblies.
Our engineering team works closely with automation equipment manufacturers, robotics companies, sensor suppliers, and industrial system integrators worldwide to deliver reliable and customized connectivity solutions.
Why Choose CONNODER?
Industrial-grade manufacturing capability
OEM & ODM customization services
IP67/IP68/IP69K waterproof solutions
Strict quality inspection process
Global project experience
Professional engineering support
Applications Supported by CONNODER M8 Connectors
Smart Factory Automation
CONNODER A-coded M8 connectors are widely used in sensors, switches, IO-Link devices, and automation equipment.
Industrial Ethernet Networks
CONNODER D-coded M8 connectors provide reliable communication for PROFINET, EtherCAT, and EtherNet/IP applications.
Robotics & AGV Systems
Our customized M8 cable assemblies are designed to withstand continuous movement, vibration, oil exposure, and harsh industrial environments.
How to Choose the Right M8 Connector Coding Type
Determine the communication protocol.
Verify required pin count.
Consider environmental protection requirements.
Select the appropriate cable material and shielding.
Consult connector experts for customized solutions.
Contact CONNODER for Expert Support
Whether you need standard M8 A-coded connectors, Industrial Ethernet D-coded connectors, or custom cable assemblies, CONNODER can help you select the right solution for your application.
What is M8 connector coding type?
M8 connector coding type refers to the mechanical keying design inside an M8 circular connector that prevents mismating between different electrical functions or communication protocols. Each coding type (such as A-coded, B-coded, and D-coded) is designed for specific industrial applications like sensors, fieldbus systems, or Industrial Ethernet.
What is the difference between A-coded and D-coded M8 connectors?
A-coded M8 connectors are mainly used for sensors, actuators, and IO-Link devices, while D-coded M8 connectors are designed for Industrial Ethernet communication such as PROFINET, EtherCAT, and EtherNet/IP. The key difference is that A-coded handles signal-level connections, while D-coded supports high-speed data transmission.
What is M8 B-coded connector used for?
M8 B-coded connectors are primarily used for PROFIBUS-DP fieldbus systems in industrial automation. They ensure reliable data communication between PLCs and field devices in legacy or existing automation infrastructures.
How to choose the correct M8 connector coding type?
To choose the correct M8 connector coding type, you should first identify the communication protocol (sensor signal, PROFIBUS, or Industrial Ethernet), then confirm the required pin configuration and environmental protection level. A-coded is for sensors, B-coded for PROFIBUS, and D-coded for Industrial Ethernet.
