Introduction
When engineers and buyers search for a comparison description between male connector and female connector, they are usually looking for practical guidance to avoid mismatched connections and improve system reliability. This content focuses on M9 connectors, combining structural comparison with real industrial application insights.

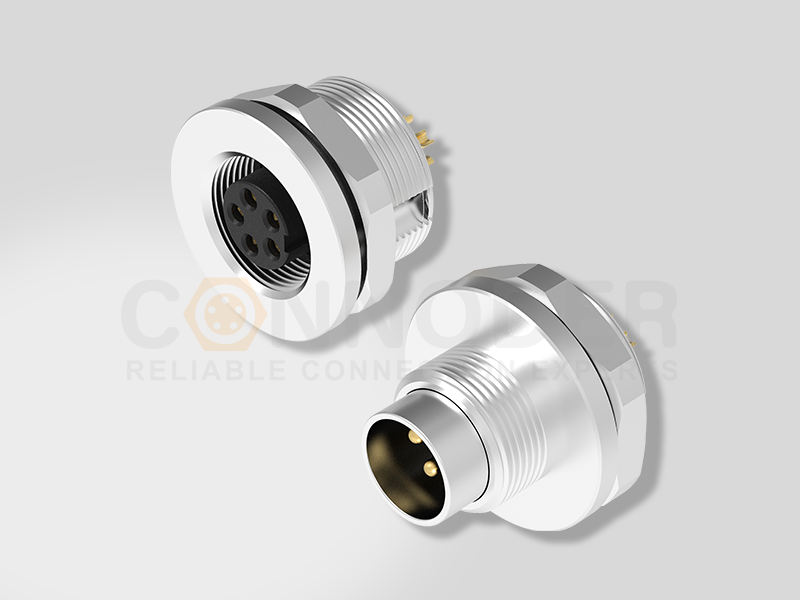

M9 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
What Is the Difference Between Male and Female Connectors?
A male connector is designed with protruding metal pins that insert into a mating connector, while a female connector contains recessed sockets that receive those pins. This fundamental design difference affects contact protection, installation direction, and application usage.
Connector Gender Identification
Visible pins indicate a male connector
Recessed holes or sockets indicate a female connector
Gender is defined by the contact interface, not by threads or housings

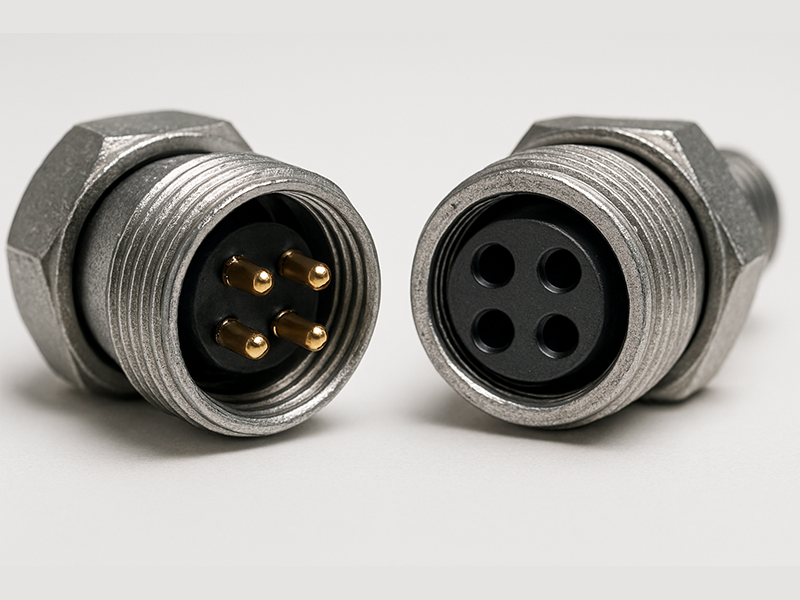

Male and female connectors of M9 circular connector
The male and female connectors of the M9 circular connector adopt a 9mm threaded locking mechanism, have an IP67 protection rating, and are available in various pin counts. They are compact and robust, suitable for multiple scenarios such as industrial automation.
M9 Connector Overview and Application Context
The M9 circular connector is a compact connector widely used in industrial automation, sensors, and control systems. Despite its small size, M9 connectors offer reliable mating, secure locking, and stable electrical performance in demanding environments.
Typical Features of M9 Connectors
Circular design with threaded coupling
Multiple pin counts for signal and power transmission
Available in both male and female versions
IP67 protection when properly mated

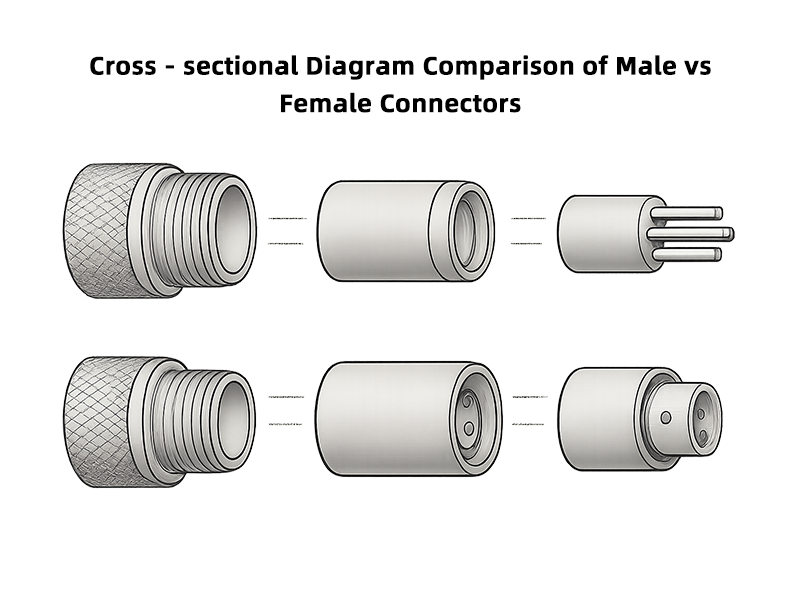

Cross - sectional Diagram Comparison of Male vs Female Connectors
The cross - sectional view of M9 male and female connectors clearly showcases the precise interlocking structure of the pins and jacks. With tightly - fitting contacts, it ensures stable electrical conductivity, making it suitable for the harsh working conditions in industrial automation.
Comparison Description Between Male and Female Connectors (M9 Focus)
| Aspect | Male Connector | Female Connector |
| Contact Design | Protruding pins | Recessed sockets |
| Installation Role | Cable-side connection | Device or panel-side connection |
| Contact Protection | Pins may be exposed | Contacts protected inside housing |

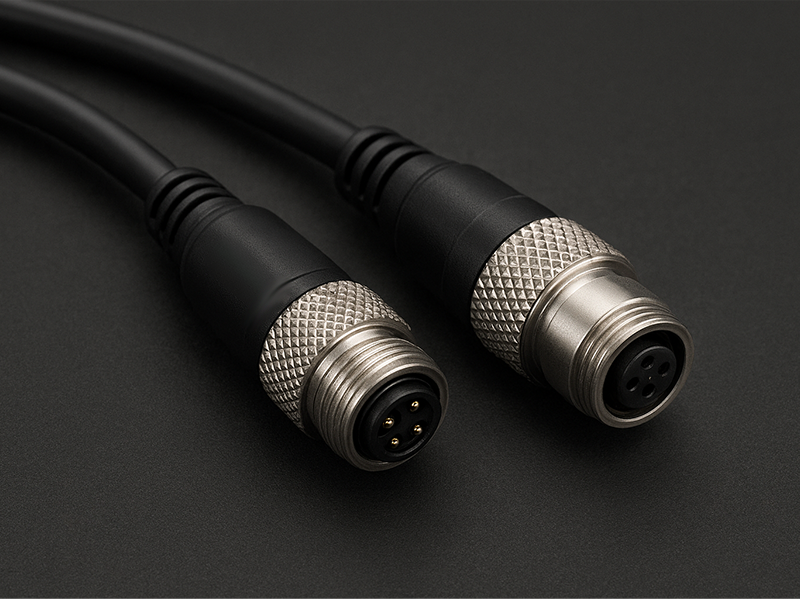

M9 male and female circular connectors with cables
The M9 male - female circular connectors with cables are plug - and - play, saving wiring efforts. They are resistant to bending and interference, suitable for signal and power transmission in industrial automation equipment.
Conclusion
As a professional industrial connector manufacturer, Connoder provides a complete range of M9 connectors in male and female configurations. Our products are designed for reliability, durability, and stable performance in automation and industrial environments.
What is the main difference between a male connector and a female connector?
The main difference lies in the contact structure. A male connector has protruding pins, while a female connector contains recessed sockets. This design determines how the two connectors mate, how contacts are protected, and how they are typically positioned in industrial systems.
In M9 connectors, when should I use a male connector and when should I use a female connector?
In most M9 applications, male connectors are commonly used on cable assemblies, while female connectors are used on sensors, devices, or panel-mounted interfaces. This configuration improves installation convenience and reduces the risk of pin damage.
How can I quickly identify whether an M9 connector is male or female?
You can identify connector gender by inspecting the contacts. If you see visible metal pins, it is a male M9 connector. If the contacts are recessed sockets, it is a female M9 connector. Threads or coupling nuts do not define gender—only the contact interface does.
Are female connectors safer than male connectors in industrial environments?
Generally, yes. Female connectors offer better contact protection because the conductive parts are recessed inside the housing. In M9 connectors, this design helps reduce accidental contact and improves safety in industrial automation environments.
