Introduction
The M9 circular connector combines compact design with reliable industrial performance. It is widely used in automation, sensors, robotics, measurement equipment and intelligent manufacturing systems.
Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
What Is an M9 Circular Connector?
An M9 circular connector is a miniature industrial connector designed for reliable signal and low-power transmission where installation space is limited. Its compact structure, threaded locking mechanism and stable electrical performance make it an ideal choice for modern industrial equipment.
Main Advantages
Compact miniature design
Reliable signal transmission
Excellent vibration resistance
IP67/IP68 waterproof protection options
Flexible pin configurations
Why Are M9 Circular Connectors Small but Powerful?
1. Space-Saving Miniature Design
Modern industrial devices require smaller components without sacrificing reliability. M9 connectors provide efficient connectivity solutions for compact sensors, control modules and precision equipment.
2. Stable Electrical Performance
Although small in size, M9 connectors provide dependable electrical connections through optimized contact structures and high-quality materials.
2-pin solutions
3-pin solutions
4-pin solutions
5-pin and customized configurations
3. Waterproof and Harsh Environment Protection
M9 waterproof connectors are designed for industrial environments exposed to dust, moisture, oil and vibration.
IP67 dust and water protection
IP68 solutions for demanding applications
Reliable sealing structure
M9 Circular Connector Design Features
Compact Circular Structure
The circular design improves mechanical strength, alignment accuracy and connection reliability.
Threaded Locking System
The locking mechanism helps prevent accidental disconnection and improves performance under vibration conditions.
Multiple Installation Options
Cable mount M9 connector

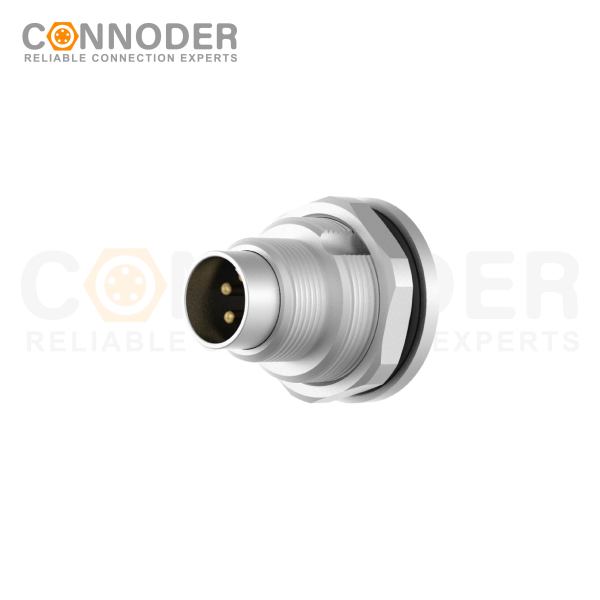

Panel mount M9 connector

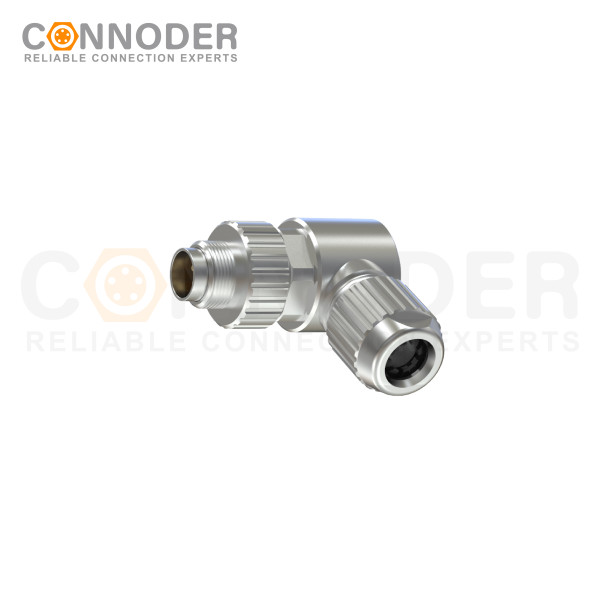

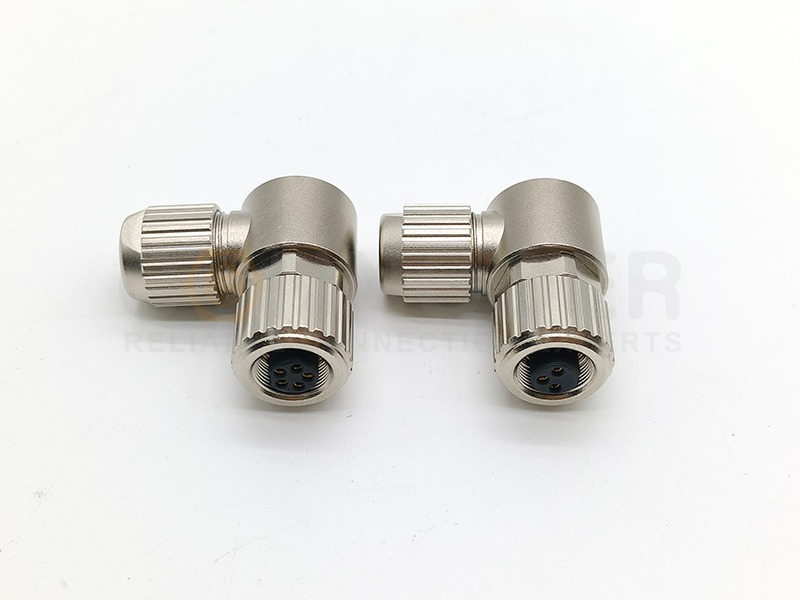

Angled M9 connector design
Industrial Applications of M9 Circular Connectors
Industrial Automation
M9 connectors are commonly used for sensors, control modules and machine monitoring systems.
Robotics and Intelligent Manufacturing
Their compact size and durability make them suitable for robotic equipment requiring reliable connections in limited spaces.
Measurement and Precision Equipment
M9 circular connectors provide stable connections for testing instruments and precision devices.
M9 Circular Connector vs M8 and M12 Connector
| Feature | M8 Connector | M9 Connector | M12 Connector |
| Size | Smaller | Compact | Larger |
| Application | Sensors | Sensors and control | Industrial automation |
| Signal Capability | Medium | Medium-high | High |
How to Select the Right M9 Circular Connector?
Electrical Requirements
Evaluate voltage, current and signal transmission requirements before selecting an M9 connector.
Mechanical Requirements
Mounting method
Cable direction
Connector size
Environmental Requirements
IP protection rating
Operating temperature
Vibration resistance
Why Choose CONNODER M9 Circular Connectors?
CONNODER specializes in industrial connectivity solutions, providing reliable circular connectors for automation and industrial applications.
M5, M8, M9, M12 and M16 circular connectors
OEM customization solutions
Cable assembly services
Industrial-grade quality control
What is an M9 circular connector?
An M9 circular connector is a compact industrial connector designed for reliable signal and low-power transmission in applications where installation space is limited. It features a threaded locking mechanism, excellent mechanical stability, and optional IP67/IP68 protection, making it ideal for sensors, automation equipment, robotics, and precision instruments.
What are the advantages of M9 circular connectors?
M9 circular connectors offer several advantages, including a compact size, reliable electrical performance, strong vibration resistance, and waterproof protection. Their miniature design allows engineers to save installation space while maintaining stable and secure connections in demanding industrial environments.
Where are M9 circular connectors commonly used?
M9 circular connectors are widely used in industrial automation, sensor systems, robotics, measurement and testing equipment, medical devices, and intelligent manufacturing. Their compact size and dependable performance make them suitable for applications requiring reliable connectivity in confined spaces.
How do I choose the right M9 circular connector?
When selecting an M9 circular connector, consider the required pin configuration, rated voltage and current, mounting style (cable or panel mount), IP protection rating, operating environment, and any customization needs. Choosing the correct connector ensures reliable performance and a longer service life for your equipment.
