What Is an M8 Circular Connector and How Does It Work?
What Is an M8 Circular Connector and How Does It Work?
Introduction
In today’s rapidly evolving industrial automation industry, reliable connectivity has become the foundation of efficient machine communication. From sensors and actuators to robotics and industrial Ethernet systems, stable signal and power transmission directly affect the performance and safety of automated equipment.
What Is an M8 Circular Connector?
An M8 Circular Connector is a compact metric circular connector with an 8mm threaded locking interface designed for industrial signal, data, and low-voltage power transmission.
The term:
“M” refers to the metric screw thread
“8” refers to the 8 mm outer diameter of the threaded coupling

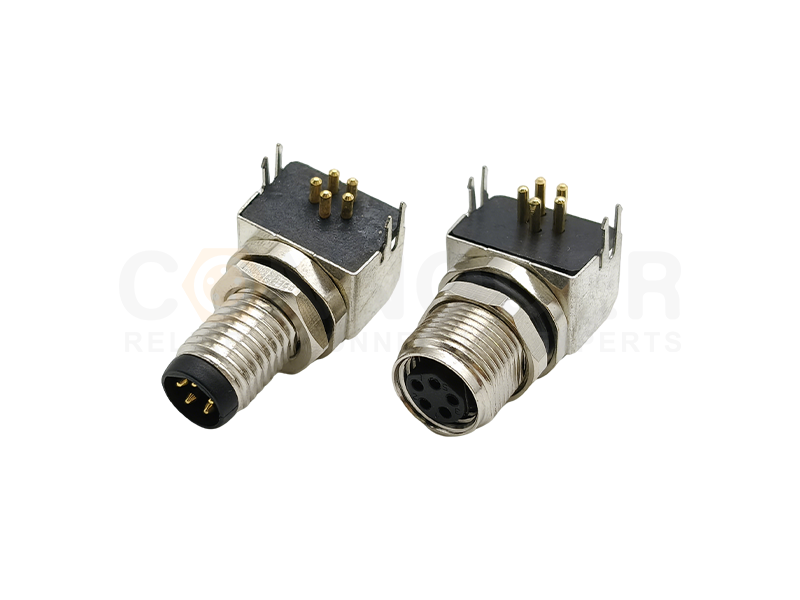

M8 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
How Does an M8 Circular Connector Work?
The M8 circular connector works through a threaded locking connection system that securely joins male and female connectors while maintaining stable electrical transmission.
1. Connector Alignment
The male and female connectors are aligned according to pin configuration, coding type, and keyway position to prevent incorrect mating and ensure safe industrial operation.
2. Electrical Contact Transmission
Gold-plated contact pins establish reliable pathways for signal transmission, sensor communication, data transfer, and power delivery in industrial environments.
3. Threaded Locking Mechanism
The threaded coupling nut is tightened to secure the connection mechanically, offering anti-vibration protection and stable signal transmission.
4. Waterproof Environmental Protection
Once tightened, the connector achieves IP67 or IP68 protection ratings, preventing water, dust, oil, and moisture intrusion.
Main Features of M8 Circular Connectors
Compact Design
Perfect for confined installation spaces and compact industrial equipment.
Reliable Connection
Threaded locking ensures secure vibration-resistant connectivity.
Waterproof Protection
IP67/IP68 sealing supports harsh industrial environments.
Multiple Configurations
Available in 3-pin, 4-pin, 5-pin, and 8-pin options.
Common Applications of M8 Circular Connectors
Industrial automation systems
Robotics and motion control equipment
Industrial vision systems
Transportation and railway electronics
Medical devices and compact monitoring equipment
Why Choose CONNODER M8 Circular Connectors?
CONNODER is a professional industrial connector manufacturer specializing in circular connectors, connection cables, and industrial automation connectivity solutions. With advanced manufacturing capabilities and strict quality management systems, CONNODER provides reliable M8 connector products for customers worldwide.
CONNODER Advantages
ISO-certified manufacturing systems
High-precision automated production
OEM & custom cable assembly support
IP67/IP68 waterproof solutions
Global industrial automation application experience
Conclusion
The M8 Circular Connector is one of the most important compact connectivity solutions in modern industrial automation. With reliable threaded locking, waterproof protection, and versatile pin configurations, M8 connectors enable stable signal and power transmission across demanding industrial environments.
As industrial automation continues moving toward Industry 4.0 and smart manufacturing, choosing a reliable connector supplier becomes increasingly important. CONNODER continues to provide high-quality industrial connector solutions designed for global industrial applications.
What is an M8 Circular Connector used for?
An M8 Circular Connector is mainly used in industrial automation systems for connecting sensors, actuators, PLCs, robotics, and industrial communication equipment. Its compact size and reliable locking mechanism make it ideal for space-limited applications.
How does an M8 Circular Connector work?
An M8 Circular Connector works through a threaded locking system that securely connects male and female connectors. Once tightened, the connector provides stable signal and power transmission while protecting against vibration, dust, and water intrusion
Are M8 Circular Connectors waterproof?
Yes. Most industrial M8 Circular Connectors support IP67 or IP68 protection ratings, which help prevent water, dust, oil, and moisture from entering the connector in harsh industrial environments.
What is the difference between M8 and M12 connectors?
The main difference is size and application. M8 connectors are smaller and commonly used for compact sensors and automation equipment, while M12 connectors support larger industrial networking and higher pin-count applications.
