Introduction
M12 connectors are widely used in industrial automation, sensors, actuators, and Industrial Ethernet systems. One of the most critical features is M12 connector coding, which defines how connectors can be safely and correctly connected.
M12 coding refers to a mechanical keying system that determines compatibility between connectors. Each coding type has a unique keyway and pin configuration, ensuring that only the correct connectors can mate with each other.

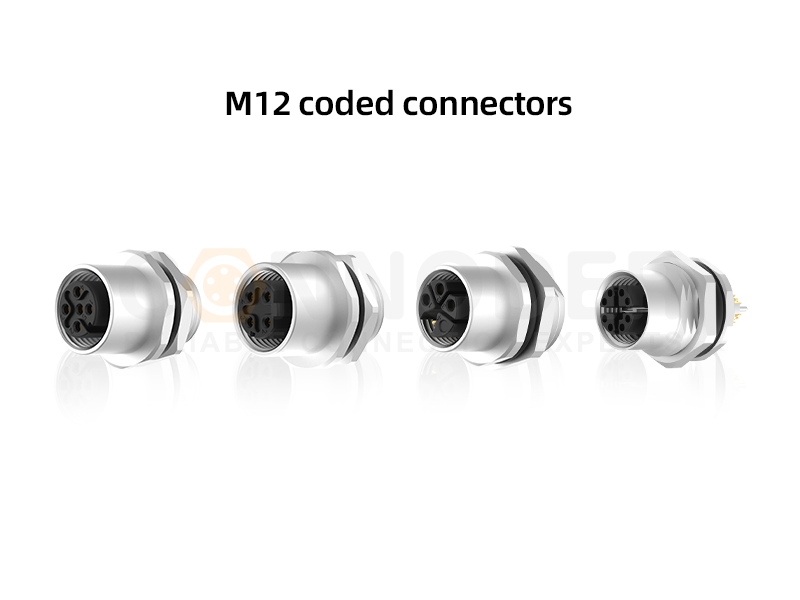

M12 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
Why M12 Connector Coding Matters
In industrial environments, incorrect connections can lead to system failures, equipment damage, and safety risks. M12 coding prevents these issues by acting as a physical safeguard.
Prevents mismating of incompatible connectors
Ensures correct signal, data, or power transmission
Improves system safety and reliability
Supports standardized industrial integration
At Connoder, all M12 connectors are manufactured in strict compliance with international standards, ensuring consistent performance even in harsh environments.
Common M12 Connector Coding Types
Different coding types are designed for specific applications. Understanding these types helps you select the right connector for your system.
A-Coded (Signal Applications)
Used for sensors and actuators, A-coded connectors are the most common and support multiple pin configurations.
B-Coded (Fieldbus Systems)
Designed for communication protocols such as Profibus, ensuring stable industrial network communication.
D-Coded (Industrial Ethernet)
Supports Fast Ethernet up to 100 Mbps, commonly used in industrial networking.
X-Coded (High-Speed Ethernet)
Supports up to 10 Gbps data transmission, ideal for high-speed industrial applications.

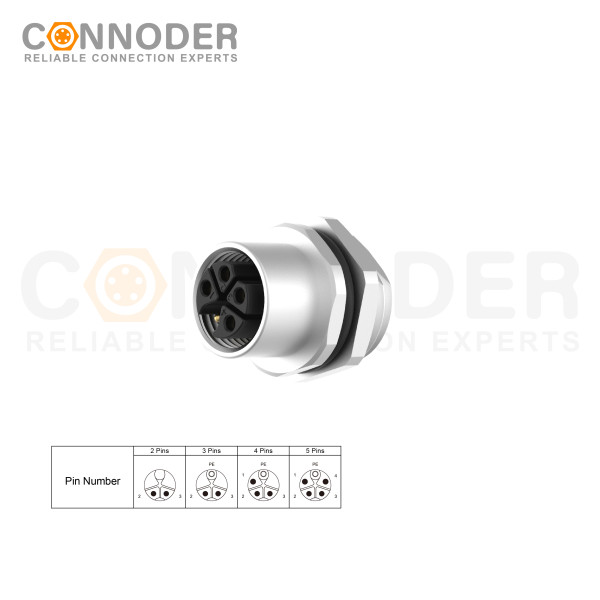

L-Coded / K-Coded (Power Applications)
Designed for high current and voltage, widely used in power supply systems.
M12 Coding and Pin Configuration
Coding is closely related to pin configuration. Each coding type supports specific pin layouts that determine its electrical performance.
A-coded: 3–12 pins for signal transmission
D-coded: 4 pins for Ethernet
X-coded: 8 pins for high-speed data
How to Choose the Right M12 Connector Coding
Choosing the correct coding depends on your application requirements. Follow these steps:
Signal: Choose A-coded
Data: Choose D-coded or X-coded
High-speed data: Choose X-coded
Power: Choose L-coded or K-coded
Additionally, consider environmental factors such as waterproof requirements (IP67/IP68) and installation conditions.
Why Choose Connoder?
Connoder is a professional manufacturer specializing in industrial circular connectors. With strong R&D and manufacturing capabilities, we provide reliable connectivity solutions for global industries.
Full range of M12 coding types (A, B, D, X, K, L)
IP67/IP68 waterproof solutions
Custom cable assemblies
Strict quality control and international compliance
Common Mistakes to Avoid
Using A-coded connectors for Ethernet
Mixing incompatible coding types
Ignoring data transmission requirements
Overlooking environmental conditions
Conclusion
M12 connector coding is essential for ensuring safe, reliable, and efficient system performance. It defines both the physical compatibility and electrical function of connectors.
By understanding coding types and selecting the right connector, you can avoid costly errors and improve system reliability. For high-quality M12 connector solutions, Connoder is your trusted partner.
What does M12 connector coding mean?
M12 connector coding refers to a mechanical keying system that ensures connectors can only mate with compatible counterparts. It defines the connector’s function—such as signal, data, or power—and prevents incorrect connections that could damage equipment or disrupt performance.
What are the different types of M12 connector coding?
The most common M12 coding types include A-coded (for sensors and actuators), B-coded (for fieldbus systems), D-coded (for Industrial Ethernet), X-coded (for high-speed Ethernet up to 10 Gbps), and L-coded or K-coded (for power applications). Each type is designed for a specific function.
Why is M12 connector coding important?
M12 connector coding is important because it prevents mismating, ensures correct electrical connections, and improves system safety and reliability. It is especially critical in industrial environments where incorrect connections can lead to system failures or equipment damage.
How do I choose the right M12 connector coding?
To choose the right M12 connector coding, first identify your application needs: use A-coded for signals, D-coded or X-coded for data transmission, and L-coded or K-coded for power. You should also consider data speed, environmental conditions, and installation requirements.

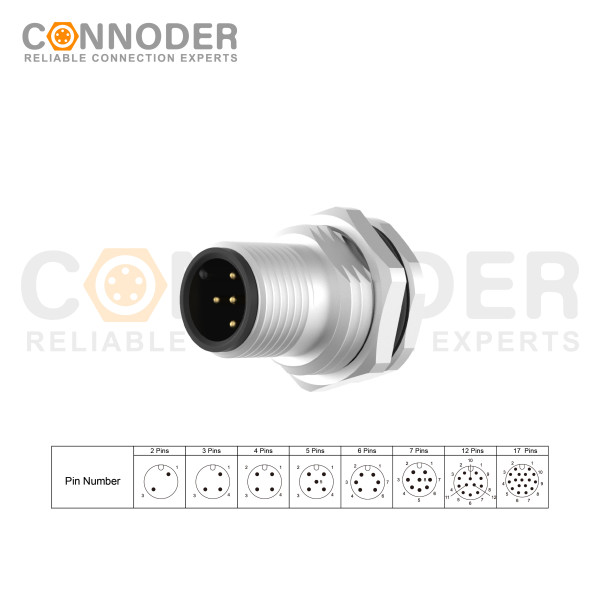

M12 A 5 Pin Circular Connector is a metric circular connector used in industrial automation and other harsh environments.
M12 Circular Connector is a metric circular connector used in industrial automation and other harsh environments.

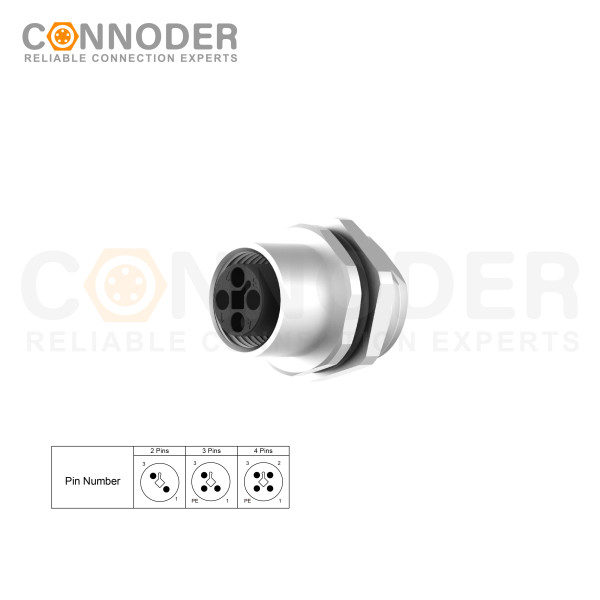

M12 T Coded 3+PE Circular Connector is a metric circular connector used in industrial automation and other harsh environments.

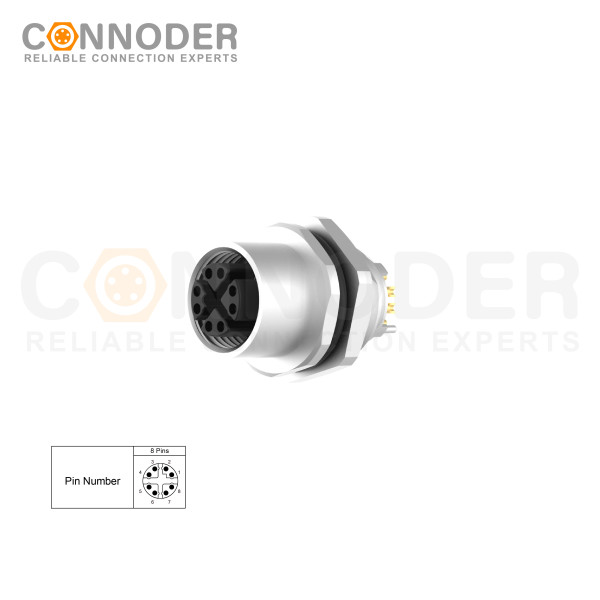

M12 X Coded 8 Pin Circular Connector is a metric circular connector used in industrial automation and other harsh environments.
