Why 7/8-16UN Connectors Remain the Top Choice for Heavy Machinery Power Transmission
7/8 Circular Connector for Heavy Machinery Power Transmission
Introduction
Heavy machinery requires reliable electrical connection solutions that can withstand vibration, dust, moisture, temperature changes, and continuous power loads. The 7/8 circular connector with a 7/8-16UN threaded coupling structure remains a trusted choice for industrial power transmission applications. As a professional industrial connectivity solution provider, CONNODER develops high-performance circular connectors designed for automation, machinery, power distribution, and harsh industrial environments.

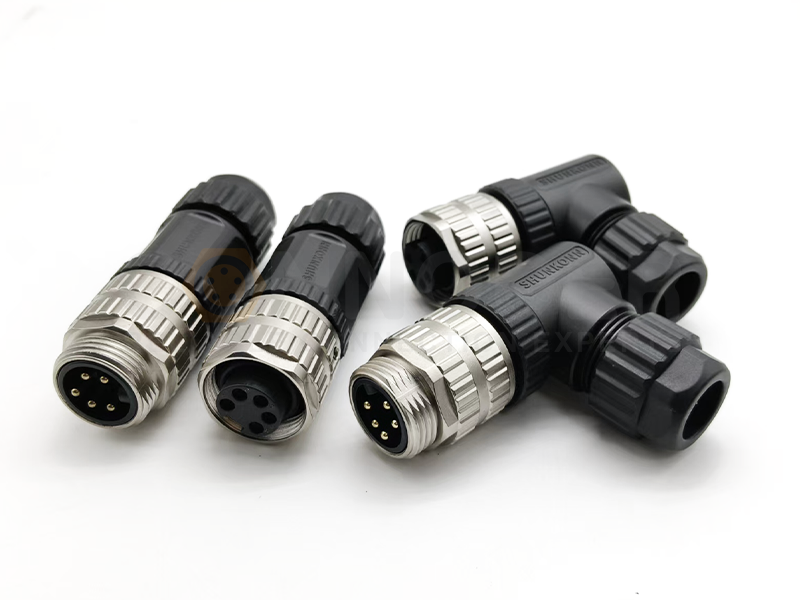

Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
What Is a 7/8 Circular Connector?
A 7/8 circular connector is a rugged industrial connector mainly designed for power supply and control applications. It features a 7/8 inch coupling diameter and a 7/8-16UN threaded locking system.
Key Construction Features
7/8-16UN threaded coupling: Provides secure locking and vibration resistance.
High current capability: Supports industrial power transmission requirements.
Environmental protection: Suitable for demanding industrial conditions.
Why 7/8-16UN Connectors Are Preferred for Heavy Machinery
1. High Current Carrying Capability
Heavy machinery requires stable power delivery for motors, actuators, valves, and control modules. Compared with many signal connectors, 7/8 power connectors provide stronger current transmission capability and support larger cable sizes.
Benefits:
Reduced voltage loss
Stable electrical performance
Improved equipment reliability
2. Strong Vibration and Shock Resistance
Construction equipment and industrial machinery often operate under continuous mechanical stress. The threaded 7/8-16UN connection design helps prevent accidental loosening and maintains long-term electrical contact stability.
3. Waterproof Protection for Harsh Environments
Industrial environments may expose connectors to water, oil, dust, and extreme temperatures. Properly designed 7/8 circular connectors can provide IP67/IP68 protection for outdoor and industrial applications.
Applications of 7/8 Circular Connectors
Due to their durability and power transmission capability, 7/8 connectors are widely used in:
Construction Machinery
Factory Automation Equipment
Agricultural Machines
Industrial Power Systems
How to Select the Right 7/8 Circular Connector
Engineers should consider the following factors:
Rated voltage and current
Number of contacts
Cable specification
IP protection level
Operating temperature range
Mounting method
Customized cable requirements
7/8 Circular Connector vs M12 Connector
| Connector | Main Advantage | Typical Applications |
|---|---|---|
| 7/8 Circular Connector | Higher power transmission capability | Motors, actuators, machinery power |
| M12 Connector | Compact size | Sensors and communication systems |
Why Choose CONNODER Industrial Connector Solutions?
CONNODER is dedicated to providing reliable industrial connectivity solutions for global customers. Our product portfolio covers:
7/8 Circular Connectors
M8 Circular Connectors
M12 Circular Connectors
M16 Circular Connectors
Industrial Ethernet Connectors
Customized Cable Assemblies
With professional engineering capability, customization support, and strict quality management, CONNODER helps customers build reliable connection systems for industrial equipment.
Frequently Asked Questions
What is a 7/8 circular connector?
A 7/8 circular connector is an industrial connector designed for reliable power transmission with a 7/8-16UN threaded interface.
Why are 7/8 connectors used in heavy machinery?
They provide high current capability, vibration resistance, and reliable performance in harsh industrial environments.
Can CONNODER customize 7/8 connectors?
Yes. CONNODER supports customized connector solutions including cable length, configuration, and OEM requirements.
What is a 7/8 circular connector?
A 7/8 circular connector is a rugged industrial connector designed for power transmission and control applications. It features a 7/8 inch circular coupling structure and a 7/8-16UN threaded locking mechanism, providing reliable electrical performance, strong mechanical stability, and resistance to vibration in industrial environments.
Why are 7/8 circular connectors used in heavy machinery?
7/8 circular connectors are widely used in heavy machinery because they provide high current transmission capability, strong vibration resistance, and reliable protection in harsh environments. They are suitable for applications such as motors, actuators, industrial equipment, and power distribution systems.
What are the advantages of 7/8-16UN connectors compared with standard connectors?
The main advantages of 7/8-16UN connectors include:
Secure threaded locking design
Higher power transmission capability
Better resistance to vibration and shock
Suitable for outdoor and harsh industrial environments
Long service life in demanding applications
Are 7/8 circular connectors waterproof?
Yes. Many industrial 7/8 circular connectors are designed with IP67 or IP68 protection ratings, making them suitable for applications exposed to water, dust, oil, and changing environmental conditions.
