Wholesale M16 Male 5 Pin Circular Connector | waterproof IP65 Straight Metal Plastic Solder Assembly plug 2 3 4 5 6 7 8 12 14 16 19 24Pin with Plastic Tube
Wholesale M16 Male 5 Pin Circular Connector | waterproof IP65 Straight Metal Plastic Solder Assembly plug 2 3 4 5 6 7 8 12 14 16 19 24Pin with Plastic Tube
| Categories | M16 Circular Connector |
|---|---|
| Brand | Connoder Circular Connector Manufacturer |
| Model | MC16NM-05U4LSLNS402 |
| Type | M16 Circular Connector |
| Contact Connection Type | Male Connector |
| Number OF Positions | 2/3/4/5/6/8/12/14/16/19/24 Pin |
| Coding | General |
| Termination | Solder |
| Mounting Type | Plastic Metal Assembled |
| Shielded Option | Shielded |
| Approval | UL |
| Pollution | III |
| Flame Retardant | IEC61076-2-111 |
| Terms of Payment | L/C, D/A, D/P |
| Update Time | Jul 5,2025 |
Detail Information
M16 6 Pin Circular Connector characteristic
Description
- M16 6 Pin Circular Connector ideal for demanding industrial applications such as industrial automation and aerospace, marine, and telecom systems.
- M16 Sensor connector are available in quick-lock wiring assembly types with IP67 protection and a vibration-resistant screw design
- ConnoderM16 6 Pin Circular Connectorseries with rugged metal housing is the ideal solution to ensure uncompromised power and signal connections in harsh environments and industrial applications.
- Connoder M16 6 Pin Circular Connector are manufactured according to the AISG standard (AISG C 485), which offers 2 to 24 contacts with dip soldering, crimp, screw clamp, solder and stranded wire, and is also available with moulded cable. Some versions are shieldable, and users can expect more than 500 mating cycles.
M16 6 Pin Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |

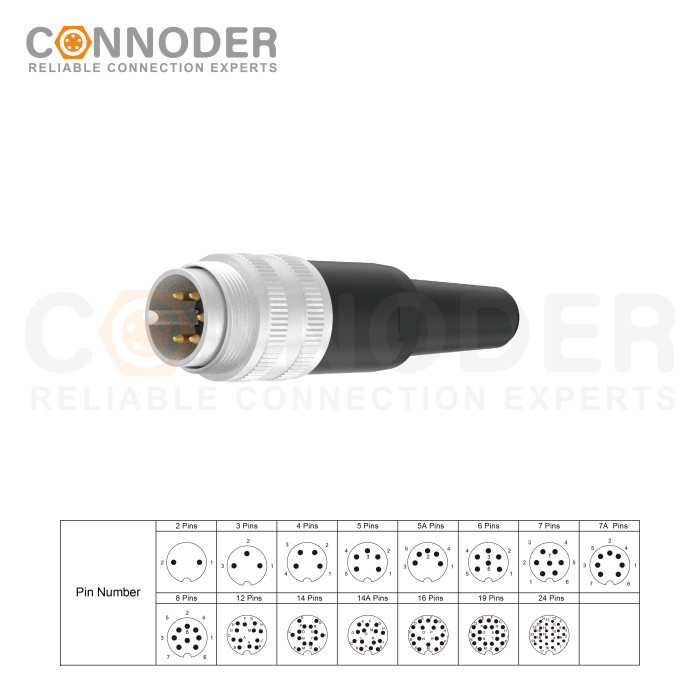

M16 6 Pin Circular Connector Size diagram
M16 6 Pin Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC16NM-02U4LSLNS402 | 2 | 7A | 250V | 32V | 20 | 0.75 | |
MC16NM-03U4LSLNS402 | 3 | 7A | 250V | 32V | 20 | 0.75 | |
MC16NM-04U4LSLNS402 | 4 | 7A | 250V | 32V | 20 | 0.75 | |
MC16NM-05U4LSLNS402 | 5 | 7A | 250V | 32V | 20 | 0.75 | |
MC16NM-06U4LSLNS402 | 6 | 5A | 250V | 32V | 20 | 0.75 | |
MC16NM-07U4LSLNS402 | 7 | 5A | 125V | 32V | 20 | 0.75 | |
MC16NM-08U4LSLNS402 | 8 | 5A | 60V | 32V | 20 | 0.75 | |
MC16NM-12U4LSLNS402 | 12 | 3A | 60V | 32V | 24 | 0.25 | |
MC16NM-14U4LSLNS402 | 14 | 3A | 60V | 32V | 24 | 0.25 | |
MC16NM-16U4LSLNS402 | 16 | 3A | 60V | 32V | 24 | 0.25 | |
MC16NM-19U4LSLNS402 | 19 | 1A | 60V | 32V | 24 | 0.25 | |
MC16NM-24U4LSLNS402 | 24 | 1A | 60V | 32V | 24 | 0.25 | |
M16 6 Pin Circular Connector Coding Parameter:
| Pins | 2 | 3 | 4 | 5 | Pins | 5A |
| Male |  |
 |
 |
 |
Male |  |
| 6 | 7 | 8 | 12 | 7A | ||
 |
 |
 |
 |
 |
||
| 14 | 16 | 19 | 24 | 14A | ||
 |
 |
 |
 |
 |
||
| Pins | 2 | 3 | 4 | 5 | Pins | 5A |
| Female |  |
 |
 |
 |
Female |  |
| 6 | 7 | 8 | 12 | 7A | ||
 |
 |
 |
 |
 |
||
| 14 | 16 | 19 | 24 | 14A | ||
 |
 |
 |
 |
 |
||
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M16 6 Pin Circular Connector Downloads:
M16 6 Pin Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
