Hybrid Cable, Ethernet Hybrid CAT5 (100 Mbps), 8-position, PUR Halogen-free,Advanced Shielding Technology, Power with Ethernet (PWE)

Hybrid Cable, Ethernet Hybrid CAT5 (100 Mbps), 8-position, PUR Halogen-free,Advanced Shielding Technology, Power with Ethernet (PWE)
Hybrid Cable, Ethernet Hybrid CAT5 (100 Mbps), 8-position, PUR Halogen-free,Advanced Shielding Technology, Power with Ethernet (PWE)Hybrid Cable, Ethernet Hybrid CAT5 (100 Mbps), 8-position, PUR Halogen-free,Advanced Shielding Technology, Power with Ethernet (PWE)
CategoriesHybrid Cables
Trademark/BrandConnoder Circular Connector Manufacturer
Number of positions8
Shieldedyes
Bus systemEthernet
Signal type/categoryEthernet hybrid CAT5 (IEC 118
Nominal voltage UN48V AC/ 50V DC
Nominal current IN6A (Power)/0.5A (Data)
Transmission mediumCopper
Terms of PaymentL/C, D/A, D/P
Update TimeOct 30,2025
Contact Now
Favorites
Detail Information
Product properties
Electrical properties
Cable/line
Product type Data cable preassembled
Application Standard
Sensor type Ethernet hybrid
Number of positions 8
No. of cable outlets 1
Shielded yes
Coding Y
Nominal voltage UN 48 V AC (Power and data)
50 V DC (Power and data)
Nominal current IN 6 A (Power)
0.5 A (Data)
Transmission medium Copper
UL AWM Style 20233 (80°C/300 V)
Number of positions 8
Shielded yes
Cable type Ethernet hybrid [94H]
Conductor structure 1x4x AWG 26+1x4x AWG 18
AWG signal line 26
AWG power supply 18
Conductor cross section 4x 0.15 mm² (Data)
4x 0.85 mm² (Power)
Wire diameter incl. insulation 1.03 mm ±0.02 mm (Data)
1.6 mm ±0.1 mm (Power)
External cable diameter 8.80 mm ±0.2 mm
Outer sheath, material PUR
External sheath, color black RAL 9005
Conductor material Bare Cu litz wires
Material wire insulation PP (Data)
PP (Power)
Single wire, color white/orange, orange, white/green, green, white, blue, brown, black

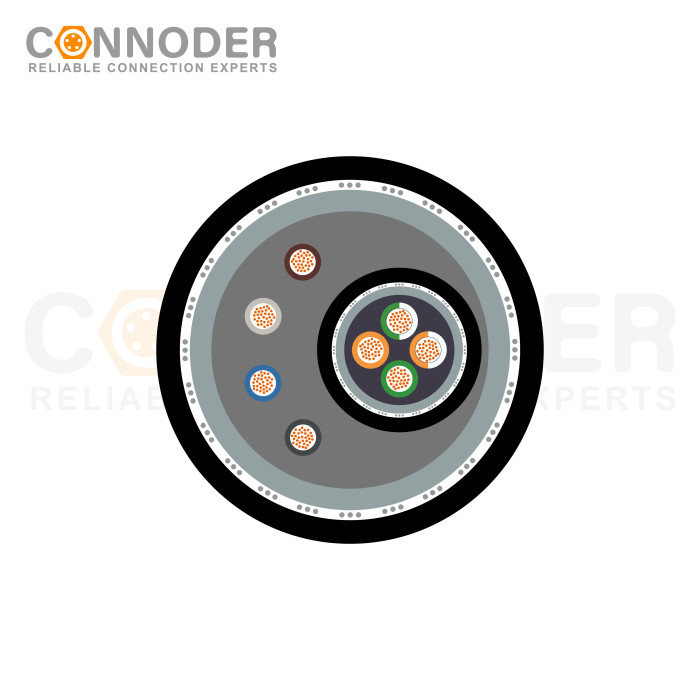

Overall twist 1 star quad and 4 wires with 2 fillers
Optical shield covering 85 %
Insulation resistance ≥ 5 GΩ*km
Loop resistance ≤ 280.00 Ω/km (Data)
≤ 45.00 Ω/km (Power)
Wave impedance 100 Ω ±5 Ω (at 100 MHz)
Differential impedance 100 Ω ±5 % (at 100 MHz)
Nominal voltage, cable ≤ 125 V (Peak value, not for high-power applications)
Test voltage Core/Core 2000 V (50 Hz, 1 min.)
Test voltage Core/Shield 2000.00 V (50 Hz, 1 min.)
Minimum bending radius, fixed installation 4 x D
Minimum bending radius, flexible installation 8 x D
Dynamic load capacity (bending) Max. bending cycles: 2000000, Bending radius: 15 x D, Traversing path: 4.5 m, Traversing rate: 3 m/s, Acceleration: 3 m/s², Ambient temperature: -20 °C ... 60 °C
Shield attenuation ≥ 80.00 dB (30 MHz ... 100 MHz)
Halogen-free according to IEC 60754-1
Flame resistance UL 1581, Section 1060 and UL 2556, Section 9.3 (FT1)
IEC 60332-1-2
Resistance to oil in accordance with IEC 60811-404
According to DIN EN 50363-10-2
Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation)
-30 °C ... 70 °C (Cable, flexible installation)
-20 °C ... 60 °C (for installation)
-20 °C ... 60 °C (cable, drag chain applications)
