Power Cables 4-position, PUR halogen-free, black-gray RAL 7021 for AC currents up to 12 A/690 V

Power Cables 4-position, PUR halogen-free, black-gray RAL 7021 for AC currents up to 12 A/690 V
Power Cables 4-position, PUR halogen-free, black-gray RAL 7021 for AC currents up to 12 A/690 VPower Cables 4-position, PUR halogen-free, black-gray RAL 7021 for AC currents up to 12 A/690 V
CategoriesPower Cables
Trademark/BrandConnoder Circular Connector Manufacturer
Product typePower cable
ApplicationPower supply
Number of positions4
Shieldedno
Terms of PaymentL/C, D/A, D/P
Update TimeOct 30,2025
Contact Now
Favorites
Detail Information
Product properties
Electrical properties
Cable/line
Product type Power cable
Application Power supply
Number of positions 4
Shielded no
Insulation resistance ≥ 100 MΩ
Nominal voltage UN 690 V AC
Nominal current IN 12 A
Cable weight 92 kg/km
UL AWM Style 80°C/1000 V
Number of positions 4
Shielded no

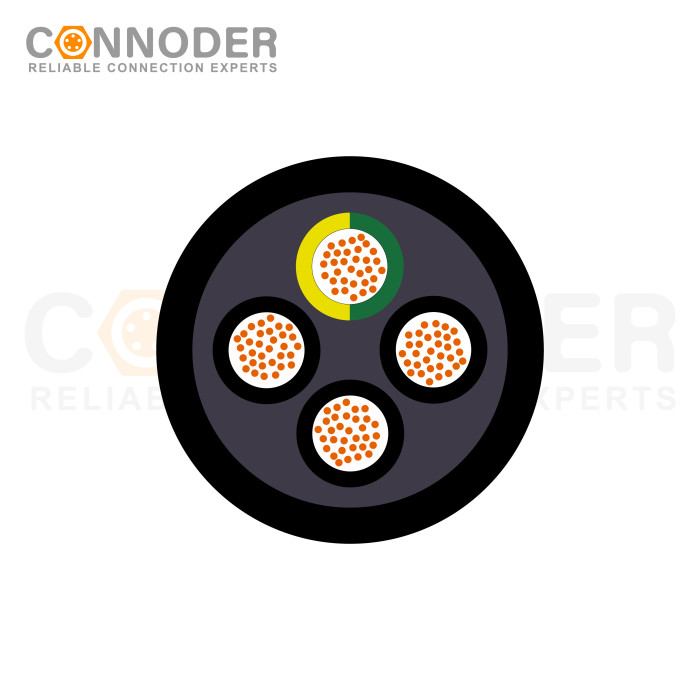

Cable type PUR halogen-free black [PUR]
Conductor structure, voltage supply 44x 0.20 mm
AWG power supply 16
Conductor cross section 4x 1.5 mm²
Wire diameter incl. insulation 2.35 mm ±0.05 mm
External cable diameter 7.40 mm ±0.25 mm
Outer sheath, material PUR
External sheath, color black-gray RAL 7021
Conductor material Bare Cu litz wires
Material wire insulation PP
Single wire, color black 1, black 2, black 3, green/yellow
Thickness, insulation ≥ 0.31 mm
Thickness, outer sheath approx. 0.85 mm
Overall twist 4 wires, twisted
Max. conductor resistance ≤ 14.1 Ω/km (at 20 °C)
Insulation resistance ≥ 1 GΩ*km (at 20 °C)
Nominal voltage, cable ≤ 1000 V AC
Test voltage ≥ 10000 V AC (Spark test)
Minimum bending radius, fixed installation 5 x D
Minimum bending radius, flexible installation 10 x D
Smallest bending radius, fixed installation 37 mm
Smallest bending radius, movable installation 74 mm
Dynamic load capacity (bending) Max. bending cycles: 5000000, Bending radius: 10 x D, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s²
Dynamic load capacity (torsion) Torsion: ±180 °/m, Torsion cycles: 500000, Torsional frequency: 35 cycles/min.
Halogen-free in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Flame resistance According to UL 758/1581 (Cable Flame)
in accordance with UL 758/1581 FT2
according to DIN EN 60332-2-2
Resistance to oil according to DIN EN 60811-404, 168 h at 100 °C
according to UL 758, 168 h at 60 °C
Other resistance Hydrolysis and microbe resistant as per VDE 0282 section 10
Low adhesion
abrasion-resistant
Resistant to salt water
Ambient temperature (operation) -50 °C ... 85 °C (cable, fixed installation)
-30 °C ... 85 °C (Cable, flexible installation)
