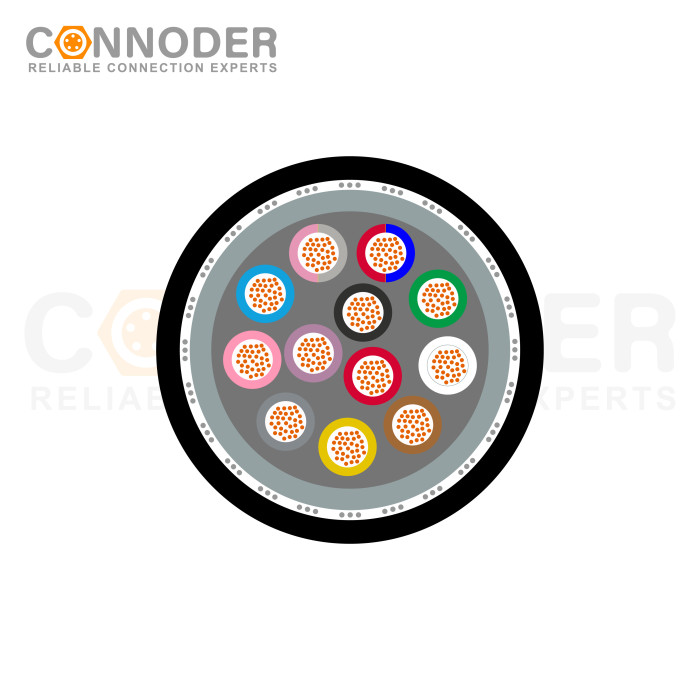

Signal Cables, Universal, 12-position, PVC/PVC, black RAL 9005, shielded, PVC black

Signal Cables, Universal, 12-position, PVC/PVC, black RAL 9005, shielded, PVC black
Signal Cables, Universal, 12-position, PVC/PVC, black RAL 9005, shielded, PVC blackSignal Cables, Universal, 12-position, PVC/PVC, black RAL 9005, shielded, PVC black
CategoriesSignal Cables
Trademark/BrandConnoder Circular Connector Manufacturer
Product typeSignal Cables
ApplicationSignal
Number of positions12
Shieldedno
Terms of PaymentL/C, D/A, D/P
Update TimeNov 3,2025
Contact Now
Favorites
Detail Information
Product properties
Electrical properties
Cable/line
Product type Signal Cables
Application Signal
Number of positions 12
Shielded yes
Rated surge voltage 0.8 kV
Contact resistance ≤ 3 mΩ
Insulation resistance ≥ 100 MΩ
Nominal voltage UN 30 V
Nominal current IN 1.5 A
Max. conductor resistance 142 Ω/km
Cable type PVC black
Short symbol PVC
Signal type/category Universal
External cable diameter 7.00 mm ±0.03 mm
Outer sheath, material PVC
External sheath, color black RAL 9005
Wire diameter incl. insulation 1 mm ±0.05 mm
Single wire, color white-brown, green-yellow, gray-pink, blue-red, black-violet, gray/pink-red/blue
Cable cross section 6x 2x 0.14 mm²
Material, inner sheath PVC
Conductor material Tin-plated Cu litz wires
Conductor structure signal line 18x 0.10 mm
AWG signal line 26
Material wire insulation PVC
Thickness, insulation 0.21 mm
Overall twist Six pairs around the filler to the core
Shielding Tinned copper braided shield
Optical shield covering 85 %
Nominal voltage, cable 300 V
Test voltage, cable 1500 V AC
Cable resistance 142 Ω/km (at 20 °C)
Smallest bending radius, fixed installation 42 mm
Smallest bending radius, movable installation 105 mm
Resistance to oil in accordance with DIN EN 60811-404
Flame resistance IEC 60332-1-2, IEC 60332-1, FT1, VW-1
Other resistance Hydrolysis and microbe resistant as per VDE 0282 section 10
Ambient temperature (operation) -40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 85 °C (Cable, flexible installation)
