Data Cables, PROFIBUS (12 Mbps), 2-position, PUR halogen-free, red lilac RAL 4001, shielded,

Data Cables, PROFIBUS (12 Mbps), 2-position, PUR halogen-free, red lilac RAL 4001, shielded,
Data Cables, PROFIBUS (12 Mbps), 2-position, PUR halogen-free, red lilac RAL 4001, shielded,Data Cables, PROFIBUS (12 Mbps), 2-position, PUR halogen-free, red lilac RAL 4001, shielded,
CategoriesData Cables
Trademark/BrandConnoder Circular Connector Manufacturer
Product typeData Cable
ApplicationStandard
Number of positions2
Shieldedyes
Terms of PaymentL/C, D/A, D/P
Update TimeNov 3,2025
Contact Now
Favorites
Detail Information
Product properties
Electrical properties
Cable/line
Product type Data Cable
Application Standard
Number of positions 2
Shielded yes
Insulation resistance ≥ 100 MΩ
Nominal voltage UN 48 V AC
60 V DC
Nominal current IN 4 A
Transmission medium Copper
Cable weight 90 kg/km
UL AWM Style 21198 (80°C/300 V)
2
Shielded yes
Cable type PROFIBUS [910]
Conductor structure 1x2xAWG24/19
Conductor structure signal line 19x 0.13 mm
AWG signal line 24
Conductor cross section 2x 0.25 mm² (Signal line)
Wire diameter incl. insulation 2.55 mm ±0.07 mm
External cable diameter 7.80 mm ±0.2 mm
Outer sheath, material PUR
External sheath, color red lilac RAL 4001
Conductor material Tin-plated Cu litz wires
Material, filler PP
Material wire insulation Foam-Skin PP
Single wire, color red, green

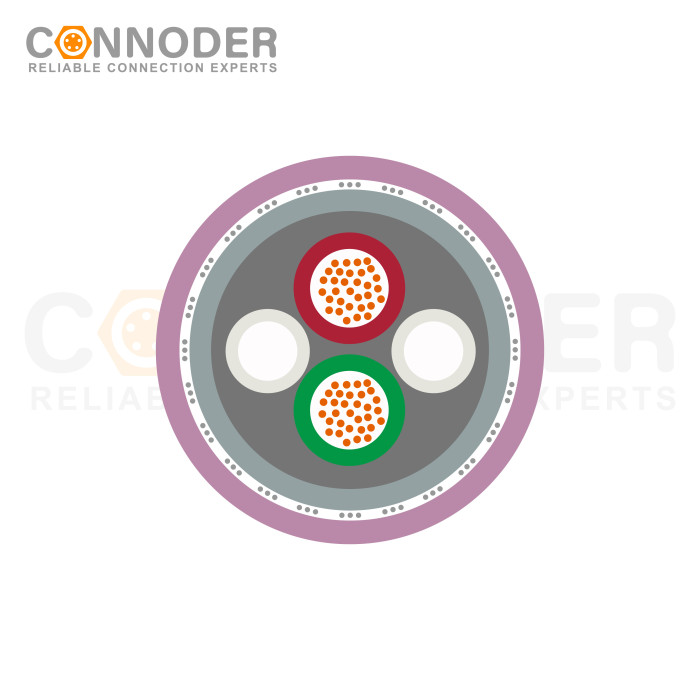

Overall twist 2 cores with 2 fillers to the core
Optical shield covering 85 %
Max. conductor resistance ≤ 78.6 Ω/km
Insulation resistance ≥ 5 GΩ*km
Wave impedance 150 Ω ±10 % (3 MHz ... 20 MHz)
Cable capacity nom. 30 pF/m
Nominal voltage, cable 300 V
Test voltage Core/Core 1500 V (50 Hz, 1 min.)
Test voltage Core/Shield 1500.00 V (50 Hz, 1 min.)
Smallest bending radius, fixed installation 40 mm
Smallest bending radius, movable installation 65 mm
Dynamic load capacity (bending) Max. bending cycles: 4000000, Bending radius: 65 mm, Traversing path: 4.5 m, Traversing rate: 3 m/s, Acceleration: 3 m/s², Ambient temperature: -20 °C ... 60 °C
Max. bending cycles: 5000000, Bending radius: 80 mm, Traversing path: 4.5 m, Traversing rate: 3 m/s, Acceleration: 3 m/s², Ambient temperature: -20 °C ... 60 °C
Shield attenuation ≤ 0.049 dB/m (at 16 MHz)
Halogen-free in accordance with DIN VDE 0472 part 815
according to IEC 60754-1
Flame resistance UL 1581, Section 1060 and UL 2556, Section 9.3 (FT1)
UL 1581, Section 1100 and UL 2556, Section 9.1 (HFT/FT2)
IEC 60332-1-2
Other resistance Low adhesion
Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation)
-30 °C ... 70 °C (Cable, flexible installation)
-20 °C ... 60 °C (for installation)
-20 °C ... 60 °C (cable, drag chain applications)
