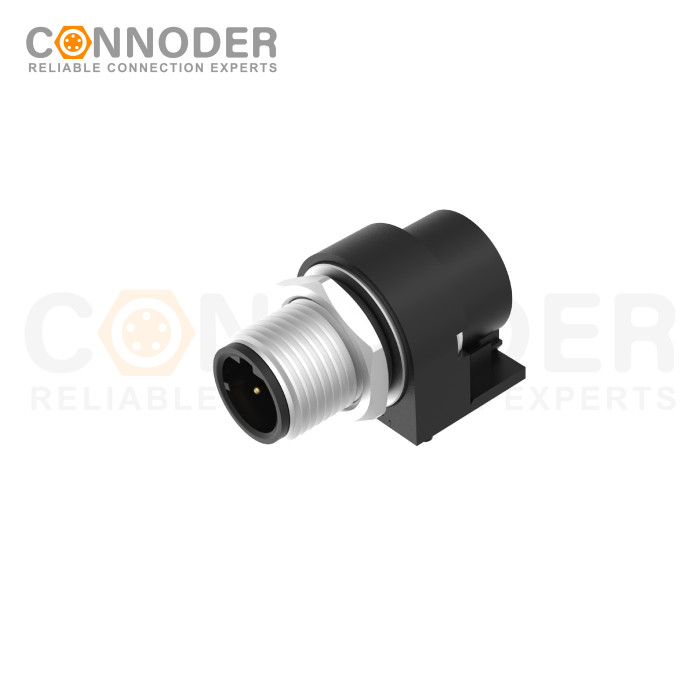

Wholesale M12 D Coded 4 Pin Circular Connector l Rear Mount Sockets, PCB Dip-solder Connection,M15x1

Categories	M12 D Coded Connector
Trademark/Brand	Connoder Circular Connector Manufacturer
Model	MC12DM-04R2LDLSR201
Type	M12 Circular Connector
Contact Connection Type	Male Connector
Number OF Positions	4 Pin
Coding	D
Termination	PCB type
Mounting Type	Right Angle Sockets
Shielded Option	Yes/No Optional
Approval	UL
Pollution	III
Flame Retardant	IEC61076-2-111
Terms of Payment	L/C, D/A, D/P
Update Time	Nov 2,2025

Detail Information

Wholesale M12 D Coded 4 Pin Circular Connector characteristic

Description

Wholesale M12 D Coded 4 Pin Circular Connector provides multiple key control options (A, B, C, D, K, L, M, P, S, T, X, Y) and pins (2, 3, 4, 5, 6 , 8, 12, 17), ensure reliable connection and stable signal transmission.
Its compact design and high reliability are suitable for various applications such as industrial automation, robotics and process control.
The Wholesale M12 D Coded 4 Pin Circular Connector is designed with a threading, which is easy to install and has IP67/IP68 waterproof level. Use national standard brass and thickened copper core to ensure excellent conductivity. Nickel -plated metal shells and wear -resistant nuts provide a firm connection, the contact is plated, and the life span is 500 times, and the contact resistance is low.

Wholesale M12 D Coded 4 Pin Circular Connector Specification

Shell Material	Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material	Epoxy Resin/Rubber
Contact Material	Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material	PA+PA+GF/TPU
Molding Material	TPU/PVC
Contact Resistance	≤5mΩ
Durability	≥ 500 Cycles
Insulation Resistance	100 MΩ
Applicable Temperature	-40℃ Tо +80℃
Waterproof Grade	IP67/IP68
