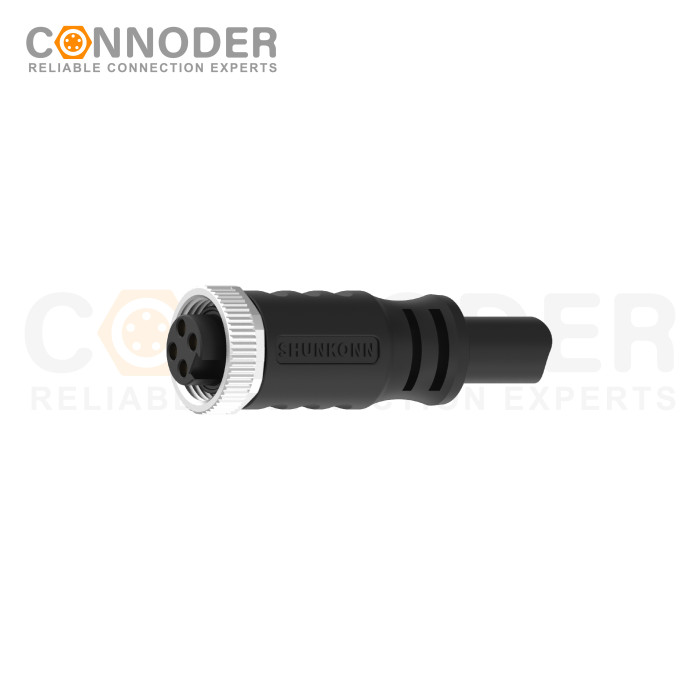

7/8" Female Connecting Cables-Straight Overmolded Cable,UL, PUR, black,Solder Connection,A code,
| Categories | 7/8" Connecting Cables |
|---|---|
| Trademark/Brand | Connoder Circular Connector Manufacturer |
| Model | MB78NF-03F2LDLNSN01 |
| Type | 7/8 Cable Connector |
| Contact Connection Type | Female Connector |
| Number OF Positions | 3 Pin（3/4/5/6 Pin Optional） |
| Coding | A |
| Termination | Solder |
| Mounting Type | Overmolded Type |
| Shielded Option | Yes/No Optional |
| Approval | UL |
| Pollution | III |
| Flame Retardant | IEC61076-2-111 |
| Terms of Payment | L/C, D/A, D/P |
| Update Time | Oct 30,2025 |
Detail Information
7/8" Connecting Cables characteristic
Description
- 7/8" Connecting Cables is a kind of cable widely used in automation equipment and communication fields, mainly for power transmission and signal transmission.
- Protection level: It has reached IP67 or even higher protection level, which can be dustproof and waterproof, and can still work normally under a certain depth of water.
- Installation options: A variety of installation methods are available, including straight type, right Angle type, flexible design, etc., so that the cable can be easily arranged in a compact space or at a specific Angle.
- Conductor material: The use of high-purity copper as a conductor material, because copper has excellent electrical conductivity, can effectively reduce energy loss and improve transmission efficiency.
- Insulation material: High quality insulation material to protect the internal conductor from the external environment and prevent current leakage.
7/8" Connecting Cables Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
7/8" Connecting Cables Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MB78NF-03F2LDLNSN01 | 3 | 13A | 300V | 300V | 18 | 1 | |
MB78NF-04F2LDLNSN01 | 4 | 9A | 300V | 300V | 18 | 1 | |
MB78NF-05F2LDLNSN01 | 5 | 9A | 300V | 300V | 20 | 0.5 | |
MB78NF-06F2LDLNSN01 | 6 | 9A | 300V | 300V | 20 | 0.5 | |
7/8" Sensor cable Coding Parameter:
| Pins | 3 | 4 | 5 | 6 |
| Male |  |
 |
 |
 |
| Pins | 3 | 4 | 5 | 6 |
| Female |  |
 |
 |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M9 Sensor cable Wire Definition:
| Pins | 2 Pin Core Color | Pins | 4 Pin Core Color | Pins | 4 Pin Core Color A B Code | |||
| 1 | BK |  |
1 | BK | |
1 | BK | |
| 2 | BN |  |
2 | BU |  |
2 | BU | |
| 3 | BU | |
3 | BN | |
3 | GNYE |  |
| 4 | WH |  |
4 | BN | |
|||
| 5 | WH | |
||||||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
7/8" Sensor cable Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
