Connector Selection in Solar and Wind Power Generation
Connector Selection in Solar and Wind Power Generation
Introduction
As renewable energy technologies accelerate worldwide, the reliability of electrical interconnections has become a defining factor for system performance. In both solar PV farms and wind turbines, connector failures can lead to costly downtime and safety hazards.
At Connoder, we specialize in industrial-grade circular connectors, including our M16 series, designed for challenging outdoor environments. Leveraging over a decade of engineering experience in industrial automation and renewable power applications, Connoder helps system integrators choose the right connector for long-term reliability.
Why Connector Selection Matters in Renewable Energy
The reference resources from VIOX, EcoFlow, and Anker Solix all emphasize a critical truth: the connector is the weakest link if not properly chosen.
Common Issues with Low-Quality Connectors
Overheating due to poor contact resistance
Ingress of dust or moisture causing corrosion
Mechanical wear from frequent connection cycles
Incompatible materials that degrade under UV or temperature stress

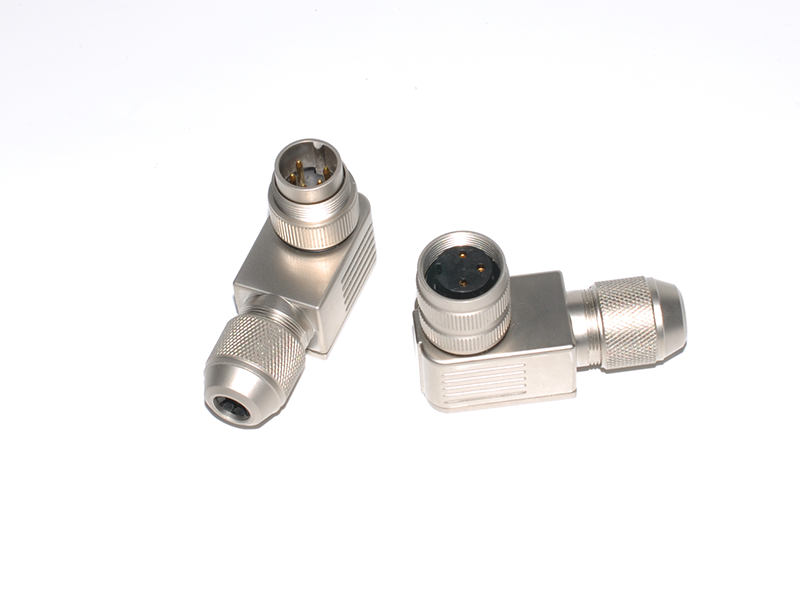

M16 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
The Industrial Standard: M16 Circular Connector
Connoder’s M16 circular connectors are engineered for industrial use — rugged metal shells, precise machining, and high IP ratings (IP67–IP68). Compared with smaller types like M8 or M12, the M16 offers higher current capacity and more contact configurations, making it ideal for:
Solar PV arrays (junction boxes, inverters, monitoring systems)
Wind turbines (nacelle sensors, pitch control, power distribution)
Industrial energy storage systems (BMS, converters, control panels)

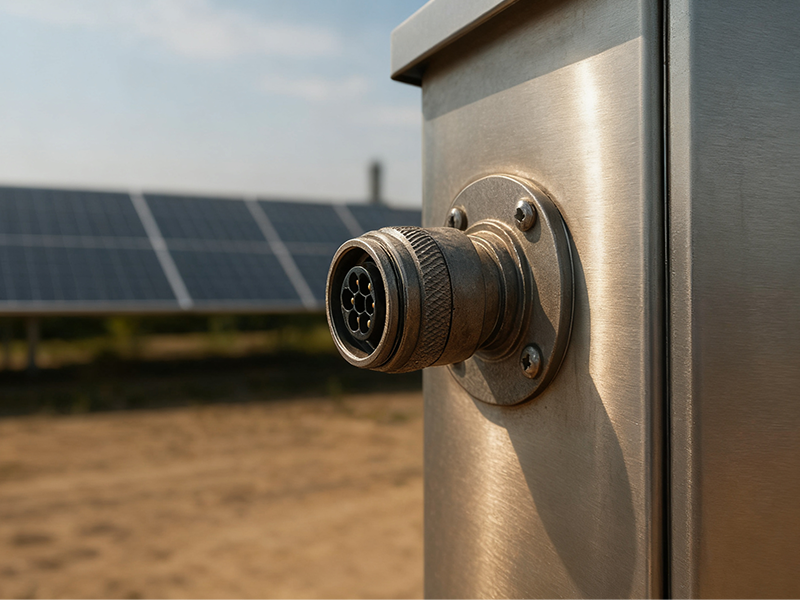

The application of M16 circular connectors in outdoor industrial environments
The M16 circular connector is installed on the solar inverter cabinet in outdoor industrial environments, helping to ensure stable connection of the cabinet equipment and guaranteeing the efficient operation of the solar power generation system.
Step-by-Step Connector Selection for Solar & Wind Projects
1. Define Electrical Requirements
Determine voltage, current, and signal type (power, data, or hybrid). Solar strings often require connectors rated for 1000 V DC or higher, while wind-turbine control systems need mixed signal/power configurations. Connoder’s M16 connectors support up to 7 A per contact and 250 V AC/DC, configurable from 2 to 24 pins.
2. Evaluate Environmental Conditions
Renewable sites face extremes of temperature, humidity, and vibration. Look for:
IP67/IP68 sealing
Vibration resistance (IEC 61076-2-106 compliant)
UV-resistant materials and corrosion-proof plating
Connoder’s connectors are field-tested in outdoor and marine environments, ensuring performance from –40 °C to +80 °C.
3. Match Mechanical Configuration
Choose the correct coupling mechanism (threaded, bayonet, or push-pull) for easy installation and long-term maintenance. Our threaded M16 design ensures secure locking even under vibration.
4. Verify Certification & Compliance
Certified connectors reduce failure risk. Connoder products meet IEC 61076-2-106, RoHS, and REACH standards, ensuring global compliance.
5. Plan for Maintenance & Replacement
Well-documented connectors simplify operations and maintenance (O&M). Connoder provides full datasheets, technical drawings, and local after-sales support.

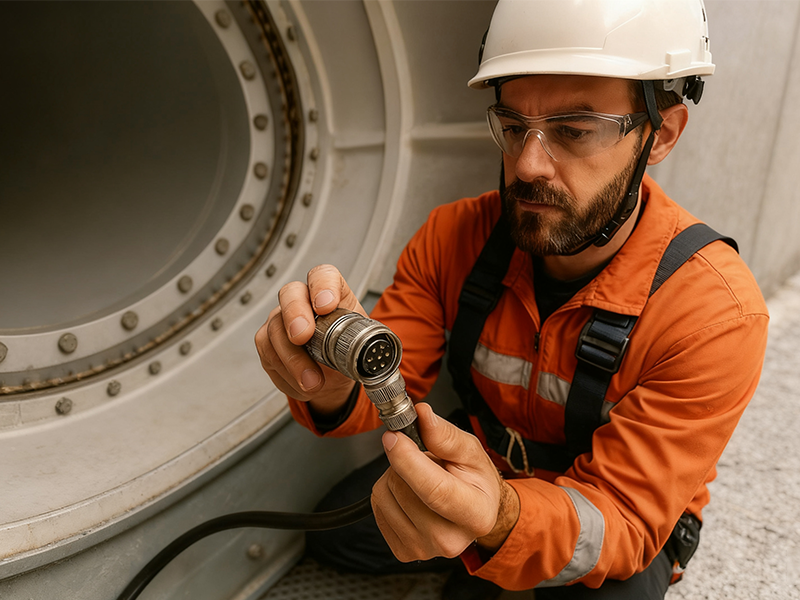

Installation of M16 circular connector
The M16 circular connector is installed outdoors and is capable of adapting to the complex outdoor conditions. It helps outdoor equipment (such as new energy devices) achieve stable signal and power connections, ensuring the reliable operation of the equipment.
Application Examples
Solar Power Systems
In solar farms, M16 connectors can be used for:
Combiner box interconnects
Monitoring equipment and sensor networks
Power optimizers and inverter communications
They outperform standard MC4 connectors in multi-pin, signal-plus-power configurations, reducing wiring clutter and improving durability.
Wind Power Generation
Wind turbines demand connectors that resist vibration and weather extremes. Connoder’s M16 connectors are used in:
Pitch control and yaw systems
Gearbox temperature sensors
Control cabinets and generator interfaces

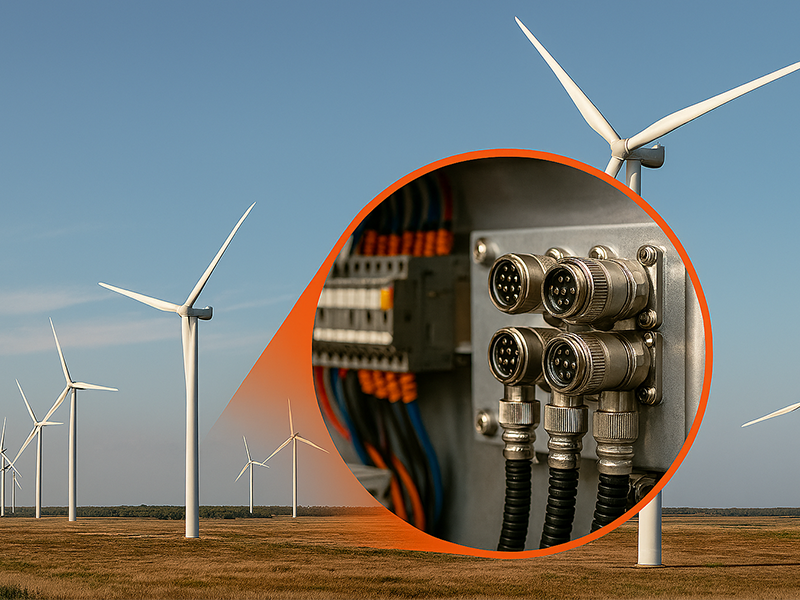

M16 connectors in the control cabinet wiring harness
The M16 connectors in the control cabinet wiring harness are responsible for organizing the wiring connections, ensuring stable transmission of signals and power within the cabinet, and facilitating the overall efficient and reliable operation of the control cabinet.
Why Choose Connoder for Your Industrial Connectivity Needs
Proven Industrial Heritage: Over 10 years of connector manufacturing experience
Customization Options: Tailored pin configurations, over-molded cable assemblies, and labeling per project spec
Global Support: Fast delivery, OEM/ODM service, and technical guidance worldwide
Commitment to Quality: Every connector undergoes IP, vibration, and lifecycle testing
At Connoder, we don’t just sell connectors — we deliver reliability, safety, and performance for the entire system lifecycle.
Conclusion
Selecting the right connector is essential to unlocking long-term reliability in solar and wind power generation. M16 circular connectors, with their balance of robustness, versatility, and performance, stand out as the preferred industrial solution.
By partnering with Connoder, you ensure your renewable-energy projects are powered by connectors built for industrial endurance and engineered excellence.
What makes the M16 circular connector suitable for solar and wind power systems?
The M16 circular connector offers excellent durability, high IP ratings (IP67–IP68), and reliable electrical performance. Its robust threaded design ensures vibration resistance, while the multi-pin configuration supports both power and signal transmission—making it ideal for outdoor solar and wind applications.
How does Connoder ensure the quality and reliability of its M16 connectors?
Connoder maintains strict quality control and testing procedures, including IP sealing, vibration, and lifecycle testing. All products meet international standards such as IEC 61076-2-106, RoHS, and REACH, ensuring consistent reliability across industrial and renewable energy systems.
What are the main factors to consider when selecting a connector for renewable energy projects?
When choosing a connector, consider the electrical rating, environmental conditions, mechanical design, certifications, and maintenance requirements. Connoder’s M16 connectors meet all these criteria, offering long-term performance in harsh solar and wind power environments.
Can M16 connectors replace MC4 connectors in solar installations?
While MC4 connectors are commonly used for simple solar panel connections, M16 connectors are better suited for industrial-scale or hybrid signal-power systems. Their higher current capacity, multiple pin options, and enhanced sealing make them an excellent upgrade for complex renewable setups.
