Introduction
Ethernet connection of the sensor has become the mainstream digital transmission solution for modern industrial automation, IIoT monitoring, and intelligent equipment systems. Compared with traditional analog and RS485 sensor connections, Ethernet-based sensors support high-speed real-time data transmission, multi-device networking, remote IP access, and mainstream industrial protocols including Modbus TCP, EtherNet/IP, and MQTT, which greatly improves the overall intelligence and integration level of industrial monitoring systems.
However, deploying stable Ethernet connection for closed space sensors has always been a major pain point for engineering designers and system integrators. Sensors installed in sealed cabinets, enclosed mechanical housings, compact equipment cavities, closed test chambers and confined industrial spaces face extreme environmental constraints: ultra-narrow installation space, internal condensation and dust accumulation, high-density electromagnetic interference, continuous equipment vibration, and closed-loop heat accumulation. These problems easily cause connector loosening, signal packet loss, intermittent disconnection and accelerated component aging, resulting in unstable sensor data transmission and frequent system failures.
According to professional industrial automation technical research for confined space sensor networking, standard ordinary RJ45 Ethernet connectors and cables cannot adapt to the harsh working conditions of closed industrial environments. Only specialized compact, sealed, anti-interference and vibration-resistant Ethernet connection solutions can ensure long-term stable operation of closed-space sensors. As a professional manufacturer of industrial sensor connection components, CONNODER focuses on customized Ethernet connection solutions for closed and confined space sensors, helping enterprises solve various networking difficulties in enclosed equipment scenarios.

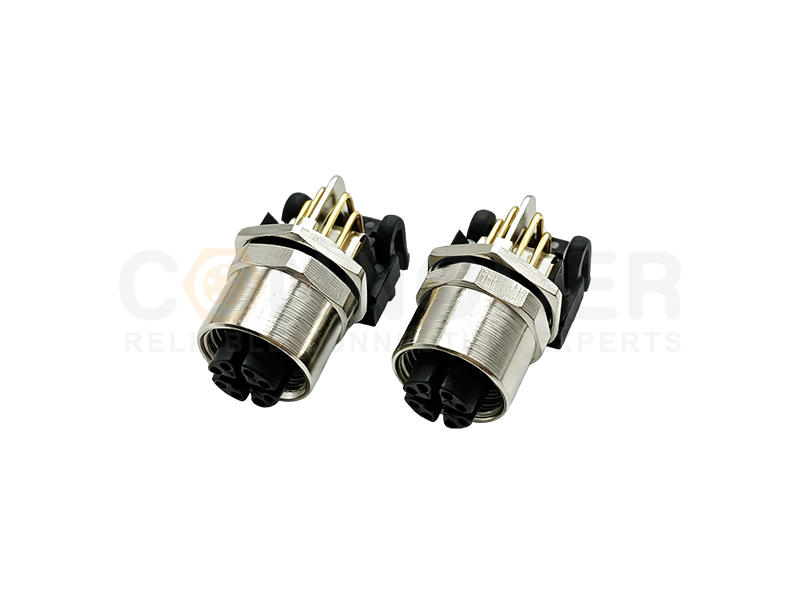

Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
Unique Challenges of Ethernet Connection for Closed Space Sensors
Different from open-site sensor wiring, the Ethernet connection of the sensor in closed and confined spaces has exclusive technical barriers, which are also the core causes of on-site network failures summarized by industrial automation industry tests:
Space Size Limitation: The internal structure of closed equipment and control cabinets is compact and dense. Traditional RJ45 connectors are large in size, resulting in difficult installation, easy extrusion and no reserved maintenance space, which is not suitable for clustered sensor layout in confined spaces.
Sealing and Humidity Risks: The closed environment cannot circulate air. Temperature changes will produce condensed water vapor, mixed with industrial dust and fine oil mist, which corrodes ordinary Ethernet connector pins, causes short circuits and affects signal transmission stability.
Severe EMI Interference: Closed cabinets and mechanical enclosures are densely equipped with PLCs, servo drives, power modules and other electrical equipment. Strong electromagnetic interference inside the closed space will cause serious packet loss and signal delay of unshielded sensor Ethernet connections.
Continuous Vibration Loosening: Industrial equipment operation produces long-term vibration, which will gradually loosen the snap-in ordinary connectors, leading to intermittent disconnection of sensor Ethernet links and failure of real-time data monitoring.
Heat Aging Acceleration: Poor heat dissipation in closed spaces leads to high ambient temperature for a long time, accelerating the aging of ordinary cable insulation and plastic shells, and shortening the service life of sensor connection systems.
Most on-site sensor network faults in closed spaces are caused by mismatched connection hardware and non-standard wiring schemes. To solve these industry pain points fundamentally, CONNODER has targeted product iteration and technical optimization based on massive closed-space engineering application data, forming a complete set of reliable Ethernet connection solutions for closed space sensors.
Core Technical Requirements for Closed Space Sensor Ethernet Connection
Combined with industry authoritative confined space sensor connectivity standards and on-site deployment experience, qualified Ethernet connection of the sensor for closed environments must meet the following core technical indicators to ensure stable and durable operation:
Miniaturized Structural Design: The connector volume is minimized to adapt to ultra-narrow installation gaps in closed cabinets and equipment cavities, without occupying equipment maintenance space.
High-Level Sealing Performance: Reach IP67 and above waterproof and dustproof grade, resist internal condensation, dust and oil mist erosion in closed spaces, and ensure long-term sealing stability.
360° Full Shielding Structure: Effectively isolate electromagnetic interference in dense electrical environments inside closed spaces and eliminate signal packet loss and distortion.
Vibration-Proof Locking Structure: Adopt threaded locking and anti-loosening design to avoid connector disconnection caused by long-term equipment vibration.
Wide Temperature Resistance: Adapt to the high-temperature heat accumulation and low-temperature shutdown environment of closed equipment, with a working temperature range covering -40℃ to 125℃.
CONNODER Professional Ethernet Connection Solutions for Closed Space Sensors
Relying on years of R&D and manufacturing experience in industrial connectors, CONNODER has launched a full range of customized products for Ethernet connection of the sensor in closed and confined spaces, which perfectly solves the shortcomings of traditional Ethernet connection schemes and is widely applicable to industrial control cabinets, enclosed mechanical equipment, sealed test chambers, new energy closed battery equipment and other scenarios. All products comply with international industrial standards and have excellent compatibility and stability.
1. Miniaturized M12 D-Code Sealed Ethernet Connectors (Core Products)
Aiming at the space limitation of closed spaces, CONNODER M12 D-code Ethernet connectors adopt ultra-small diameter miniaturized design, which is far more adaptable to confined installation environments than traditional RJ45 interfaces. The product features threaded anti-loosening structure, IP67 full sealing performance and 360° all-round shielding design, which can effectively resist EMI interference, condensation corrosion and vibration loosening in closed spaces. It supports straight, 90° elbow, front-mounted and rear-mounted flange installation methods, meeting the embedded wiring needs of different closed-space sensors.
2. High-Flexibility Shielded Ethernet Cables for Confined Wiring
CONNODER independently developed CAT5e/CAT6 industrial shielded Ethernet cables for closed space sensors, adopting S/FTP double shielding structure and wear-resistant PUR outer sheath. The ultra-thin flexible cable body is suitable for bending and dense wiring in narrow closed cabinets, avoiding cable extrusion and damage. The product is anti-aging, oil-resistant and high-temperature resistant, which can effectively cope with the harsh heat and humid environment inside closed equipment, and support stable long-distance data transmission of sensors.
3. Complete Sealed Auxiliary Connection Accessories
To form a complete closed-space sensor Ethernet connection system, CONNODER supports customized sealed bulkhead adapters, compact junction boxes and anti-surge protection modules. It solves the sealing failure problem of cabinet perforation wiring, realizes neat and standardized wiring of clustered sensors in closed spaces, and further improves the stability and safety of the entire network system.
Recommended Wiring Topologies for Closed Space Sensor Ethernet Connection
Combined with the structural characteristics of different closed spaces and industry mature networking schemes, CONNODER summarizes two most stable and applicable wiring topologies for Ethernet connection of the sensor, which can be selected according to the number of on-site sensors and equipment layout:
1. Star Topology (Suitable for Cabinet Closed Sensors)
Each closed-space sensor is independently connected to the industrial DIN-rail PoE switch through CONNODER M12 sealed Ethernet cable. A single sensor line fault will not affect the operation of the entire network, which is convenient for later equipment maintenance and fault troubleshooting. It is the most mainstream wiring scheme for closed control cabinet sensor networking.
2. Daisy-Chain Topology (Suitable for Dense Clustered Sensors)
For dense sensor groups inside enclosed mechanical equipment, sensors are connected in sequence through CONNODER dual-port Ethernet splitters, and only one main cable is connected back to the central switch. This scheme greatly reduces the number of cables in narrow closed spaces, avoids cable stacking and heat accumulation, and optimizes the internal space layout of closed equipment.
Common Faults & Professional Solutions for Closed Space Sensor Ethernet Connection
Based on industry closed-space fault data and CONNODER on-site engineering service experience, we summarize the most common Ethernet connection faults of closed space sensors and targeted solutions to help engineers quickly troubleshoot and optimize the system:
Intermittent signal disconnection: Caused by loose ordinary connectors due to equipment vibration. Solution: Adopt CONNODER threaded anti-loosening M12 Ethernet connectors to lock the interface firmly.
Serious data packet loss: Caused by insufficient shielding of common cables and EMI interference in closed cabinets. Solution: Replace with CONNODER double-shielded industrial Ethernet cables to eliminate electromagnetic interference.
Connector corrosion and short circuit: Caused by poor sealing performance and condensed water erosion. Solution: Use CONNODER IP67 fully sealed connectors to isolate moisture and dust in closed spaces.
Difficult installation in narrow space: Caused by oversized RJ45 interface. Solution: Upgrade to CONNODER miniaturized M12 compact connection scheme to adapt to ultra-narrow confined spaces.
Industrial Application Scenarios of CONNODER Closed Space Sensor Ethernet Solutions
CONNODER closed-space sensor Ethernet connection products and solutions have been widely used in various industrial scenarios with high requirements for confined space monitoring, helping hundreds of enterprises realize stable sensor network operation:
Enclosed automated machine tools and robotic internal monitoring sensors
Industrial control cabinet internal temperature, humidity and vibration monitoring sensors
Sealed new energy battery test chamber monitoring sensors
Closed HVAC air conditioning equipment and clean room monitoring sensors
Rail transit sealed electrical cabinet internal detection sensors
With reliable product quality and professional technical service, CONNODER has won long-term recognition from global industrial automation integrators and equipment manufacturers. We support personalized customized development for special closed-space equipment networking needs.
Why Choose CONNODER for Closed Space Sensor Ethernet Connection?
As a professional industrial connector manufacturer integrating R&D, production and sales, CONNODER has been deeply engaged in the field of industrial sensor connection for many years, focusing on solving various difficult networking problems of Ethernet connection of the sensor in harsh closed and confined environments. We always adhere to high-standard product manufacturing and professional technical services, with core advantages as follows:
Professional R&D Strength
Independent laboratory testing, complete product certification and rich industrial project experience, meeting EEAT industry authority standards
Scenario Customization Service
Support personalized customization of connector structure, cable length, sealing grade and material to adapt to special closed-space equipment needs
Stable Supply & Fast Delivery
Large-scale production base, sufficient standard product inventory, efficiently meet global customer order demands
Full-Lifecycle Service
Pre-sales scheme design, sample testing, in-sales technical guidance and after-sales maintenance support
What are the main challenges of Ethernet connection for closed space sensors?
Closed and confined industrial spaces face narrow installation dimensions, internal condensation, high EMI interference, continuous equipment vibration and poor heat dissipation. Standard RJ45 connectors are bulky, poor in sealing and anti-vibration performance, easily causing signal loss, intermittent disconnection and accelerated aging. CONNODER miniaturized sealed M12 Ethernet connectors are specially optimized to solve these closed-space pain points.
Why use M12 connectors instead of RJ45 for closed space sensor Ethernet connection?
M12 D-code Ethernet connectors feature ultra-small size, IP67 waterproof sealing, 360° shielding and anti-loosening threaded structure, perfectly adapting to narrow, humid, high-interference closed cabinets and enclosed equipment. Compared with traditional RJ45 interfaces, CONNODER M12 solutions provide higher stability, vibration resistance and space utilization for confined sensor networking.
What are the best wiring topologies for closed space sensor Ethernet connection?
Star topology and daisy-chain topology are the two most reliable solutions. Star topology is suitable for cabinet sensor deployment for easy maintenance; daisy-chain topology greatly reduces cable occupancy for dense clustered sensors inside enclosed machinery. CONNODER provides complete cables and splitters supporting both topologies.
How to fix unstable Ethernet connection of sensors in sealed confined spaces?
Common solutions include replacing ordinary cables with double-shielded industrial Ethernet cables to eliminate EMI interference, upgrading to threaded locking M12 connectors to avoid vibration loosening, and adopting IP67 sealed connection assemblies to prevent condensation and dust erosion. CONNODER provides one-stop troubleshooting and hardware optimization solutions.
