Introduction
As industrial automation continues to evolve toward smart manufacturing, machine vision, robotics, and Industrial Internet of Things (IIoT), Ethernet networks are handling increasingly large amounts of real-time data. Applications such as high-resolution cameras, AI inspection, robotic control, and intelligent production lines require both high bandwidth and reliable physical connections.
The M12 X 10 Gigabit Connector is designed for this type of demanding industrial environment. With an X-coded 8-contact architecture, shielding design, compact circular structure, and compatibility with high-speed Ethernet systems, it provides a practical connectivity option for applications where conventional interfaces may not provide the required combination of speed, mechanical security, and environmental protection.

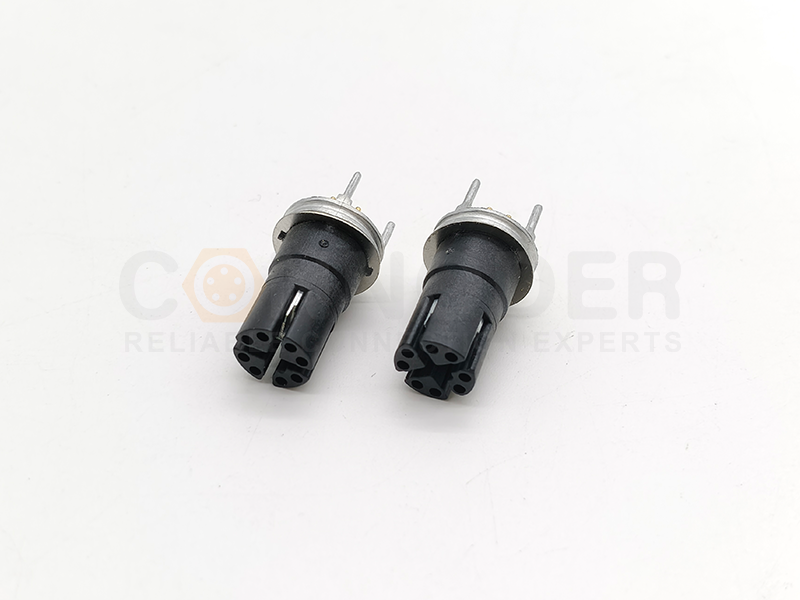

Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
What Is an M12 X 10 Gigabit Connector?
An M12 X 10 Gigabit Connector is an M12 circular Ethernet connector based on the X-coded interface and intended for high-speed industrial networking applications.
Unlike lower-speed M12 Ethernet configurations, the X-coded architecture uses eight contacts arranged as four differential pairs. This configuration is designed to support high-frequency Ethernet transmission while helping manage crosstalk and electromagnetic interference.
M12 X-coded connector systems are commonly associated with Cat6A and data transmission rates up to 10 Gbps, depending on the complete cabling system and application design.
8-Contact X-Coding
Designed for high-speed Ethernet applications using four differential signal pairs.
Cat6A Compatibility
Suitable for appropriately designed high-bandwidth Ethernet systems.
Shielded Design
Shielding helps support signal integrity and EMC performance in industrial environments.
Industrial Interface
Compact circular construction with threaded coupling for demanding equipment.
Why Is X-Coding Important for 10 Gigabit Ethernet?
The coding of an M12 connector is not simply a mechanical keying feature. It is also closely related to the electrical architecture of the interface. An X-coded M12 connector separates the four differential signal pairs within its connector structure. At high transmission speeds, maintaining appropriate separation between signal pairs is important because unwanted coupling can affect signal integrity.
1. Eight Contacts for High-Speed Ethernet
The X-coded configuration uses eight contacts, providing four differential pairs required by high-speed Ethernet architectures.
2. Signal Pair Separation
The X-shaped internal configuration helps separate the differential pairs, reducing the potential for crosstalk between channels.
3. 360° Shielding
Shielding is particularly important in industrial environments where motors, drives, power cables and switching equipment can generate electromagnetic interference.
4. Cat6A Compatibility
A connector cannot independently guarantee a 10Gbps link. The connector, cable, termination, equipment and network architecture must work together. Cat6A-compatible cabling is commonly associated with 10Gbps Ethernet systems.
5. Secure Mechanical Connection
The threaded M12 coupling mechanism provides a mechanically secure connection suitable for equipment exposed to vibration and movement.
How Does an M12 X 10 Gigabit Connector Maintain Reliable Data Transmission?
High-speed data transmission places greater demands on the physical interconnect than conventional low-speed communication. A reliable M12 X 10 Gigabit system depends on several elements working together:
Connector Geometry → Contact Quality → Shielding → Cable Construction → Termination → Mechanical Stability → Environmental Protection
Signal Integrity
At 10Gbps, even relatively small changes in impedance, contact geometry, shielding, or cable termination can affect high-frequency signal performance. A properly designed X-coded connector helps provide a controlled interface between the cable and industrial equipment.
EMI Protection
Industrial automation equipment frequently operates around:
Servo motors
Variable-frequency drives
Power supplies
High-current cables
Switching equipment
Industrial control systems
These sources can create electromagnetic noise. Shielded M12 X-coded interfaces are therefore useful in applications where EMC performance is important.
Environmental Protection
Industrial Ethernet connections may be exposed to water, dust, oil, vibration, temperature variation, and mechanical stress. IP-rated M12 X-coded solutions can help protect the connection when appropriately specified for the application.
Key Advantages of an M12 X 10 Gigabit Connector
High-Speed 10Gbps Connectivity
The main attraction of the M12 X-coded interface is its ability to support high-speed Ethernet applications up to 10Gbps when the complete system is appropriately designed.
This is particularly useful for:
High-resolution industrial cameras
Machine vision
AI inspection
Robotics
Real-time monitoring
Industrial PCs
Edge computing
Smart manufacturing
Compact Industrial Design
The circular M12 format provides a compact interface for equipment where installation space is limited.
Reliable Mechanical Connection
The threaded coupling mechanism helps maintain connection stability when equipment experiences vibration or movement.
Shielding for Industrial Environments
A properly engineered shield can help reduce electromagnetic interference and support stable high-speed communication.
Flexible Installation Options
Depending on the product family, M12 X-coded solutions can be available in different forms, including cable connectors, panel interfaces and PCB/SMT versions.
M12 X 10 Gigabit Connector Applications
The increasing amount of data generated by modern industrial equipment is creating new requirements for physical network infrastructure.
Machine Vision
Machine vision systems may transfer high-resolution image data from cameras to industrial computers or edge-processing systems. A 10Gbps-capable M12 X-coded connection can provide the bandwidth required by appropriately designed machine-vision networks.
Industrial Robotics
Robotic systems connect controllers, sensors, cameras, drives and network devices. When large amounts of sensor or image data need to move through the network, high-speed Ethernet connectivity can become important.
Smart Manufacturing and IIoT
Smart factories connect PLCs, industrial PCs, sensors, gateways and cloud systems. M12 X-coded connectors can provide a rugged physical interface for high-speed Ethernet connections in appropriate network architectures.
Automated Production Lines
Automated production lines may contain motors, robots, sensors, cameras and control equipment operating simultaneously. A secure, shielded industrial Ethernet connection can help maintain communication reliability in such environments.
Transportation and Outdoor Equipment
Industrial Ethernet equipment used in transportation and outdoor systems may require a combination of bandwidth, environmental protection and mechanical stability.
Choose a Reliable M12 X 10 Gigabit Connector for Your Industrial Application
The demand for higher-speed industrial networking is increasing as factories adopt machine vision, robotics, IIoT, AI inspection and data-intensive automation.
A properly specified M12 X 10 Gigabit Connector can provide a combination of high-speed Ethernet capability, compact industrial design, secure mechanical coupling and shielding for demanding environments.
However, reliable 10Gbps connectivity depends on the complete system—not the connector alone. Connector architecture, Cat6A-compatible cabling, shielding, signal integrity, environmental protection, mechanical design and manufacturing consistency should all be considered during product selection.
What is an M12 X 10 Gigabit Connector?
An M12 X 10 Gigabit Connector is an X-coded M12 circular connector designed for high-speed industrial Ethernet applications. It typically uses an 8-contact configuration with four differential pairs and can support data transmission up to 10Gbps when the complete Ethernet system is properly specified.
Why is X-coding important for 10 Gigabit Ethernet?
X-coding is designed for high-speed Ethernet applications by separating the differential signal pairs within the connector. Combined with appropriate shielding and cabling, this architecture helps support signal integrity and reduce the effects of crosstalk and electromagnetic interference.
Is an M12 X-coded connector suitable for Cat6A and 10Gbps Ethernet?
Yes. M12 X-coded connector systems are commonly used with Cat6A-class high-speed Ethernet applications. However, achieving 10Gbps performance depends on the complete communication channel, including the connector, cable, termination and network equipment.
Where are M12 X 10 Gigabit Connectors commonly used?
They are suitable for demanding industrial applications such as machine vision, robotics, smart manufacturing, IIoT, automated production lines, industrial PCs and high-speed industrial Ethernet networks.
