Introduction
In modern aerospace systems, electrical reliability is a matter of flight safety. Every sensor, control module, and signal interface depends on connectors that can withstand vibration, temperature shifts, and corrosion. Among these, the M12 circular connector has become a trusted solution for aviation-grade applications, combining compact design with exceptional durability.
At Conod Corporation, we specialize in developing highly reliable circular connectors, such as M8, M12, and M16. These connectors comply with industrial and aerospace standards. Through rigorous testing and advanced manufacturing processes, we ensure that each connector operates perfectly, even in the harshest flight environments.

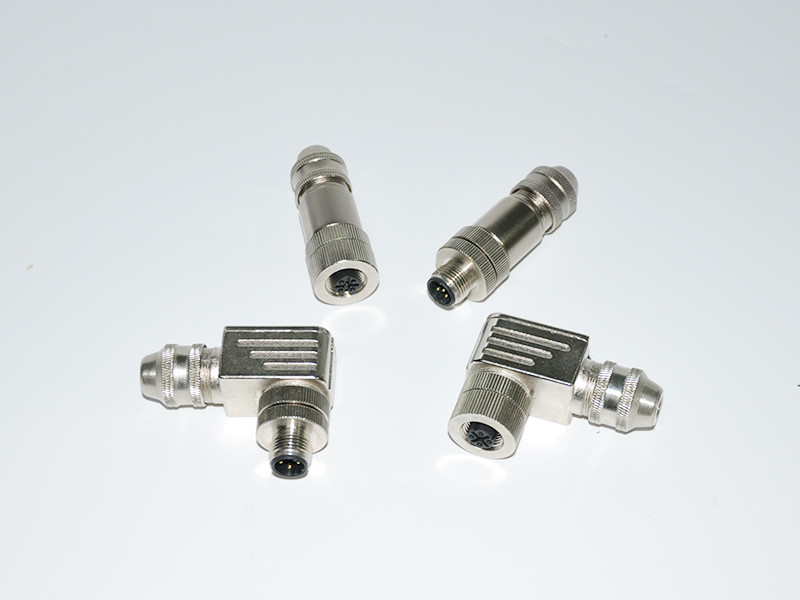

M12 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
1. Why Testing Standards Matter in Aviation-grade M12 Connectors
Aviation environments challenge connectors in ways industrial settings rarely do—continuous vibration, rapid temperature cycling, and exposure to humidity and pressure variations. Compliance with international test standards like IEC 61076, IEC 60068, and MIL-STD-810 ensures an M12 connector can survive these extremes.
Verified vibration and shock endurance
Resistance to corrosion and salt fog
Reliable electrical continuity under load
Mechanical durability over thousands of mating cycles

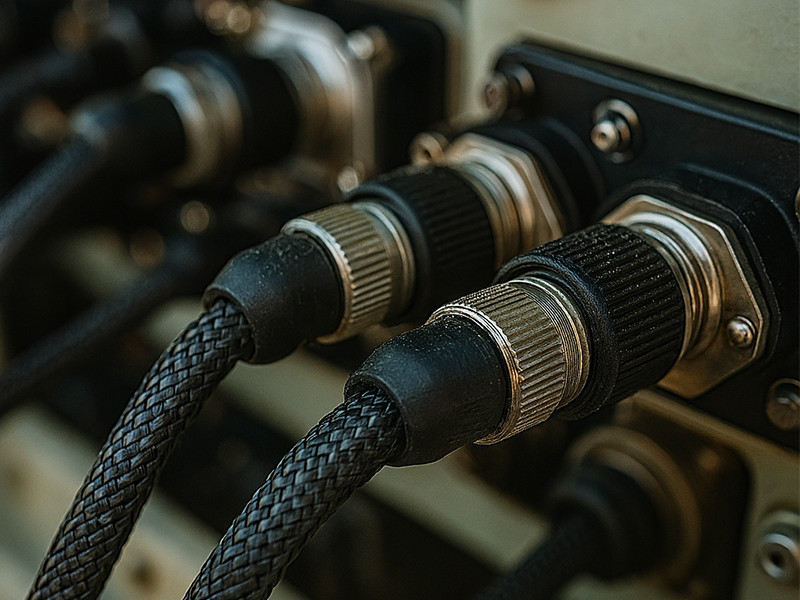

The M12 circular connector is installed in the aircraft's avionics equipment compartment
The M12 circular connector is installed in the aircraft avionics equipment compartment. As a core connection component, it precisely meets the installation requirements of the avionics system, ensuring the stable transmission of signals and power between devices, and is suitable for the demanding usage scenarios of aviation
2. IEC 61076-2-101 — The Dimensional Standard
The IEC 61076-2-101 standard defines the geometry, pin configuration, and coding types of M12 connectors, ensuring full interchangeability among global manufacturers.
Main specifications:
M12 × 1.0 thread type
Coding types: A, B, D, X, S, T, K
Contact arrangement & tolerance
Mating cycle durability and locking torque
All Connoder M12 connectors strictly adhere to IEC 61076-2-101, ensuring compatibility and precision fit across aviation, automation, and robotics systems.

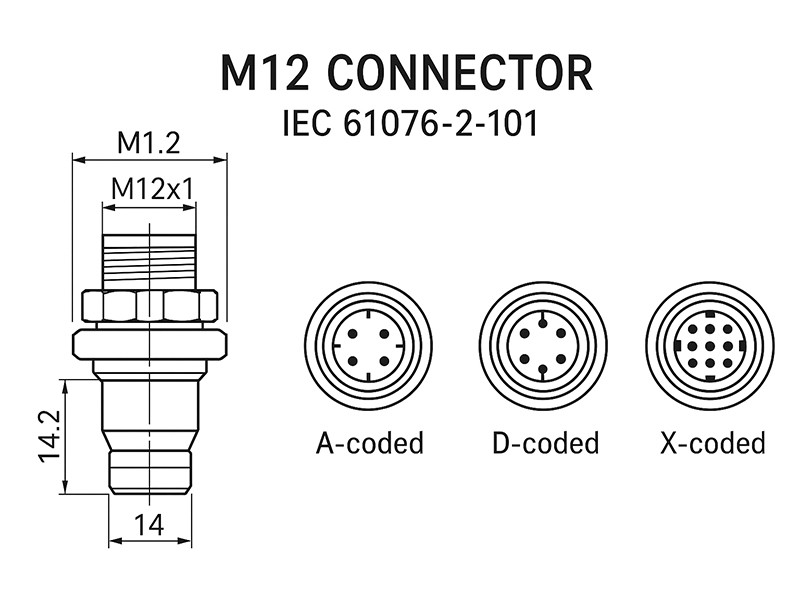

M12 connector size and coding type
Focus on the size specifications and coding types of the M12 connector, clearly presenting the size parameters and coding distinctions of different models, providing a clear reference basis for selection, installation and adaptation in aerospace and other scenarios
3. IEC 60068 — Environmental & Mechanical Reliability
The IEC 60068 series defines how to test connector durability under simulated real-world environmental conditions such as vibration, shock, temperature cycles, and humidity.
| Test Method | Purpose | Example Requirement |
| IEC 60068-2-6 | Vibration | 10–2000 Hz sweep |
| IEC 60068-2-27 | Shock | 50 g, 11 ms |
| IEC 60068-2-14 | Thermal cycling | −55 °C to +125 °C |
IEC 60068-2-78 | Humidity | 95% RH |
IEC 60068-2-11 | Salt mist | 48 hr exposure |
Connoder’s R&D center uses environmental chambers and precision test rigs to ensure all M12 connectors meet or exceed these benchmarks.

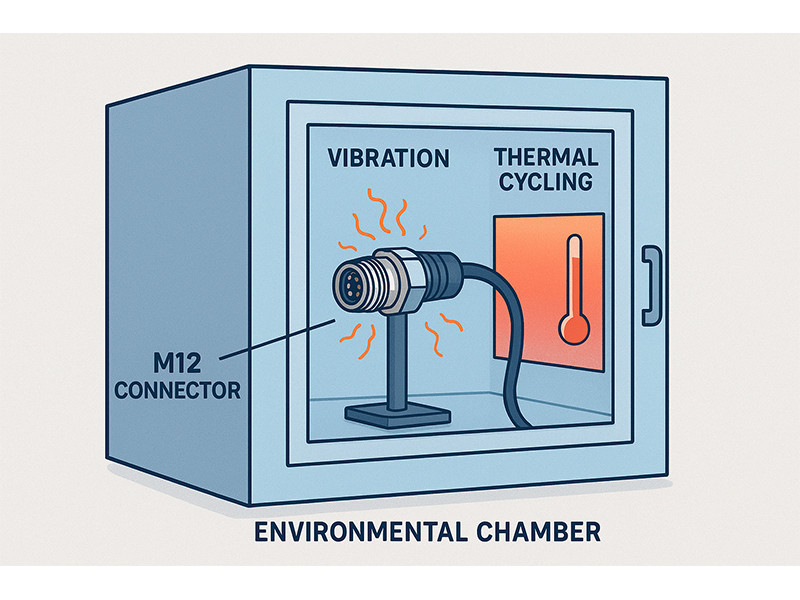

M12 connector vibration and thermal cycling test parameters
Present the vibration and thermal cycling test parameters of the M12 connector, clearly define the key indicators and specification requirements during the test process, and provide data support for verifying the reliability of the connector under temperature variations and vibration conditions
4. MIL-STD-810 — The Aerospace Durability Benchmark
While IEC standards simulate industrial environments, MIL-STD-810 represents the gold standard for aerospace and defense testing. It defines rigorous procedures for environmental, mechanical, and operational endurance.
Method 514.8 – Random vibration
Method 516.8 – Shock resistance
Method 507.6 – Humidity
Method 509.6 – Salt fog
Method 500.6 – Low pressure (altitude simulation)
Connoder integrates MIL-STD-810 testing during product qualification to ensure M12 connectors maintain signal integrity at altitude, under load, and in corrosive atmospheres.

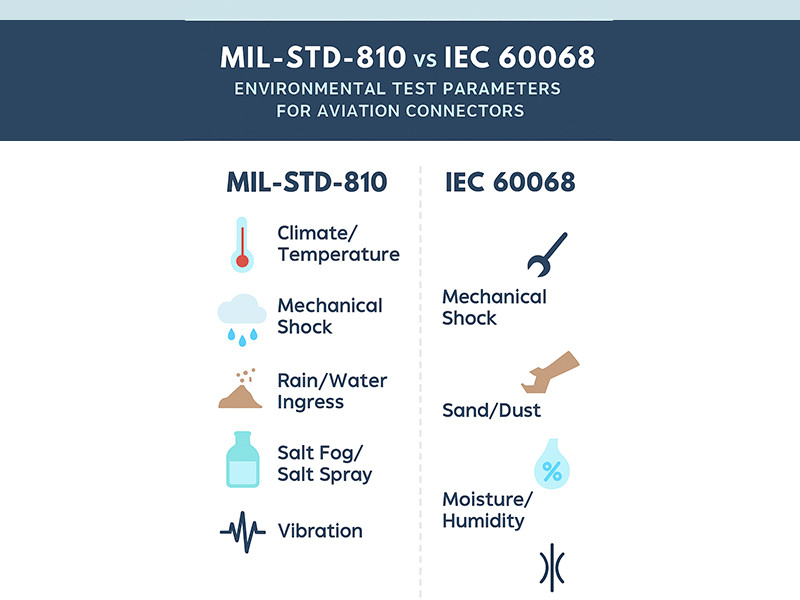

Chart comparing the environmental test parameters for aviation connectors in MIL-STD-810 and IEC 60068
This chart compares the environmental test parameters of aviation connectors in the MIL-STD-810 and IEC 60068 standards, clearly presenting the differences in test indicators and requirements between the two standards, and providing a reference for the selection of aviation connectors
5. Comparing MIL vs IEC Standards — Insights for Aerospace Design
By aligning our testing with both standards, Connoder bridges the gap between industrial versatility and aerospace resilience.
| Test Aspect | MIL-STD-810 | IEC 60068 | Aerospace Relevance |
| Vibration | Random, multi-axis | Sinusoidal | Real-flight simulation |
| Shock | 50 g, 11 ms | 30 g, 6 ms | High load tolerance |
| Temperature | −55 °C to +125 °C | −40 °C to +105 °C | Wider thermal range |
Humidity | 95% RH for 10 days | 95% RH for 4 days | Long-duration reliability |
Salt Fog | 96 hr | 48 hr | Corrosion endurance |

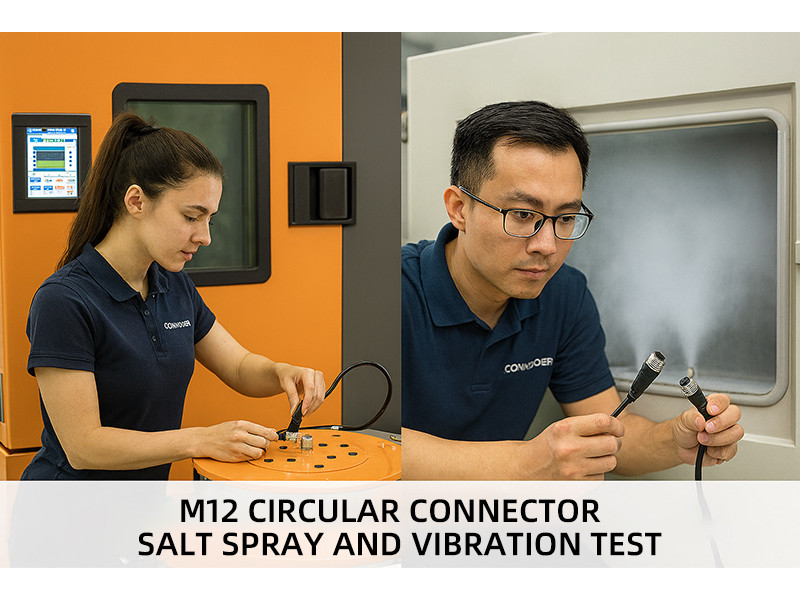

M12 circular connector vibration and salt spray test
The M12 circular connector is undergoing vibration and salt spray tests to simulate the harsh operating conditions and verify its durability, as well as its structural stability and corrosion resistance under complex circumstances, ensuring reliable performance.
6. Connoder — Engineering Reliability for the Sky and Beyond
Connoder is a professional manufacturer specializing in industrial and aviation-grade circular connectors. Our expertise covers:
M12, M8, and custom aerospace connectors
Full in-house IEC and MIL testing
ISO 9001, CE, and RoHS certified production
Custom over-molded cable assemblies for flight-critical applications
Connoder connectors are deployed across aviation, robotics, transportation, and defense systems, ensuring consistent connectivity in harsh environments.

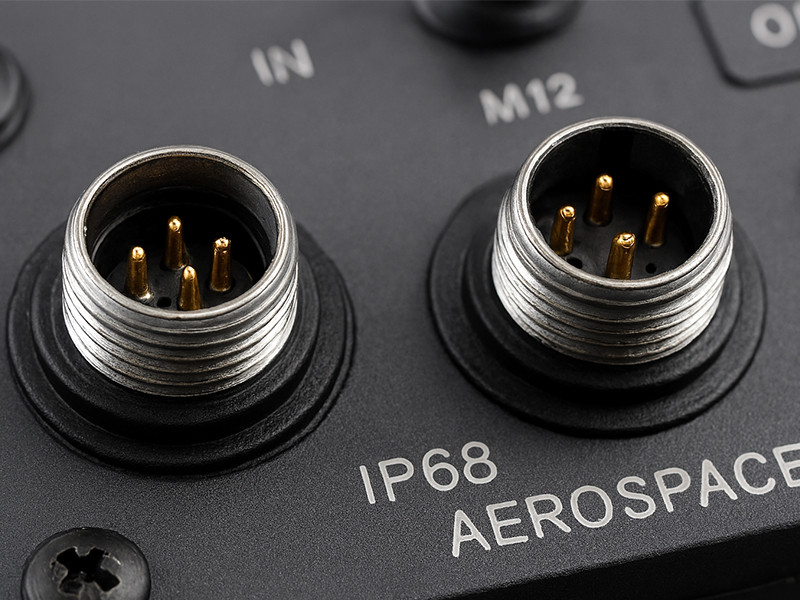

M12 circular connector protection level
The M12 circular connector with IP68 protection rating is installed on the aerospace control panel. With its high protection performance, it can withstand harsh environments and ensure the stable and reliable transmission of signals and power for aerospace equipment.
Conclusion
Aviation-grade M12 circular connectors represent the pinnacle of miniaturized, high-performance interconnect technology. By adhering to IEC 61076, IEC 60068, and MIL-STD-810, manufacturers like Connoder ensure mission-critical reliability—from cockpit control systems to UAV payload networks.
What makes an M12 circular connector suitable for aviation applications?
Aviation environments expose connectors to extreme vibration, temperature changes, and humidity. An aviation-grade M12 circular connector must meet international test standards such as IEC 61076, IEC 60068, and MIL-STD-810 to ensure stable electrical performance and mechanical reliability during flight operations.
What are the key testing standards for aviation-grade M12 connectors?
The most common testing standards include:
IEC 61076-2-101 for connector dimensions and coding,
IEC 60068 for environmental and vibration testing, and
MIL-STD-810 for aerospace-grade mechanical endurance.
Connoder’s M12 connectors undergo all these tests to ensure performance under real-world flight conditions.
What’s the difference between MIL-STD-810 and IEC 60068 testing for M12 connectors?
While both evaluate vibration and shock performance, MIL-STD-810 represents more rigorous, aerospace-focused testing. For example, it uses multi-axis vibration and higher shock loads, simulating actual aircraft conditions. IEC 60068, by contrast, focuses on standardized industrial environments. Connoder aligns its connector validation with both standards for maximum reliability.
How does Connoder ensure the quality of its aviation-grade M12 connectors?
Connoder conducts in-house vibration, salt spray, and temperature cycling tests using advanced environmental simulation equipment. Each connector is validated under IEC and MIL standards before shipment, ensuring compliance with ISO 9001, CE, and RoHS certifications.
