Introduction
In modern industrial automation, choosing the right circular connector directly impacts performance, reliability, and maintenance costs. Two of the most common connector standards — M12 and M8 — are frequently compared in control, sensor, and Ethernet applications.

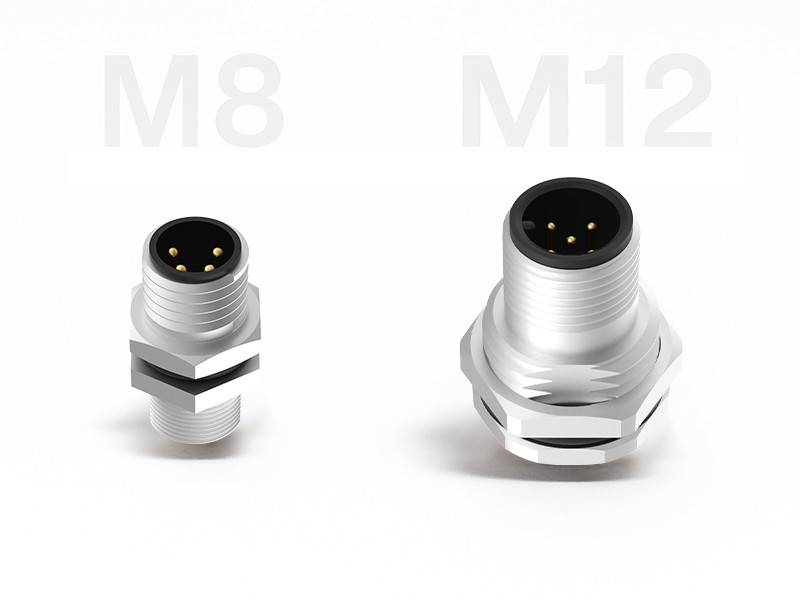

Comparison of M12 Circular Connectors and M8 Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
What Are M12 and M8 Connectors?
The “M” in M12 and M8 denotes the metric thread diameter of the connector coupling nut — 12 mm for M12 and 8 mm for M8. Both are standardized under the IEC 61076-2 series and widely used across sensors, actuators, and communication lines.
M8 connectors are smaller and ideal for compact sensor assemblies or limited-space I/O modules.
M12 connectors are larger and built for more demanding mechanical and environmental conditions, supporting higher pin counts and Ethernet codings (A, B, D, X, etc.).
At Connoder, our CD-M8-SERIES and CD-M12-IND product lines address these distinct needs.

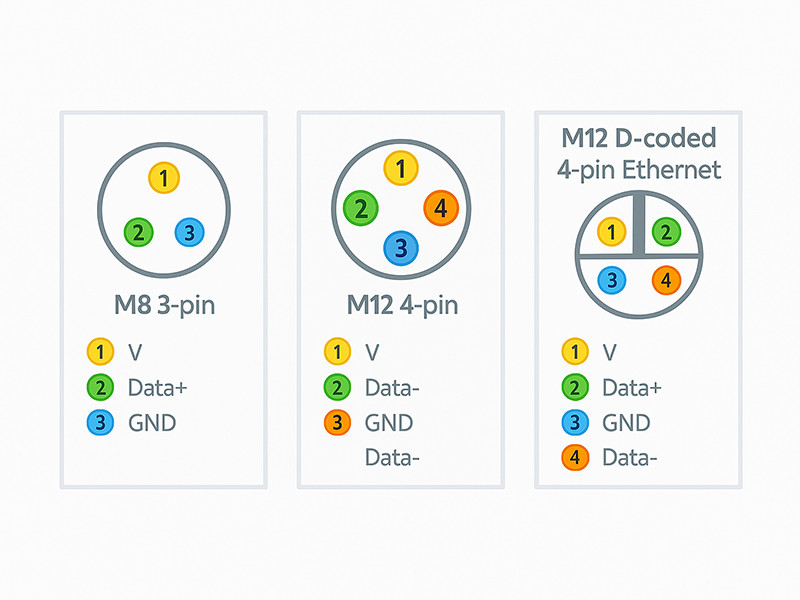

Compact option suitable for sensor applications with limited space
The M8 connector is an ideal solution for sensors with limited space. With its compact design, it is suitable for installation in narrow spaces. It features reliable connection performance and efficient transmission of signals and power, enabling the sensor to operate stably within a confined area. It provides a convenient and durable connection support for various precision sensing scenarios.
Key Differences: Size, Pin Count & Application
| Feature | M8 Connector | M12 Connector |
| Thread Size | 8 mm | 12 mm |
| Typical Pins | 2–8 pins | 2–12 pins |
| Common Coding | A-coded | A, B, D, X-coded |
Data Capability | Low-speed signals | Supports Ethernet / Fieldbus |
Environment | Protected enclosure | Harsh, wash-down, outdoor |
Example Application | Sensor, I/O modules | PLC, actuators, network devices |
Connoder’s engineering team helps clients migrate from M8 sensor networks to M12 Ethernet systems when scaling up their production lines or upgrading data throughput.
Standards, Coding & Pinout Overview
M12 connectors offer several codings to separate power, signal, and data transmission.
A-coding – Sensor/actuator signals
B-coding – Profibus or DC power
D/X-coding – Ethernet, Profinet, high-speed data
M8 connectors primarily use A-coding for analog and digital signals in short cable runs. By offering full pinout diagrams and IEC-compliant datasheets, Connoder ensures compatibility and easy installation.
Environmental Resistance and Material Considerations
When conditions involve vibration, moisture, or chemicals, material and sealing quality define connector lifespan.
M12 versions are available with IP67–IP69K sealing — ideal for wash-down and outdoor equipment.
M8 connectors are suitable for cabinet-mounted or semi-protected environments.
Connoder provides PUR/PVC/TPE cables, nickel-plated brass and stainless-steel shells, ensuring performance even under heavy mechanical stress.

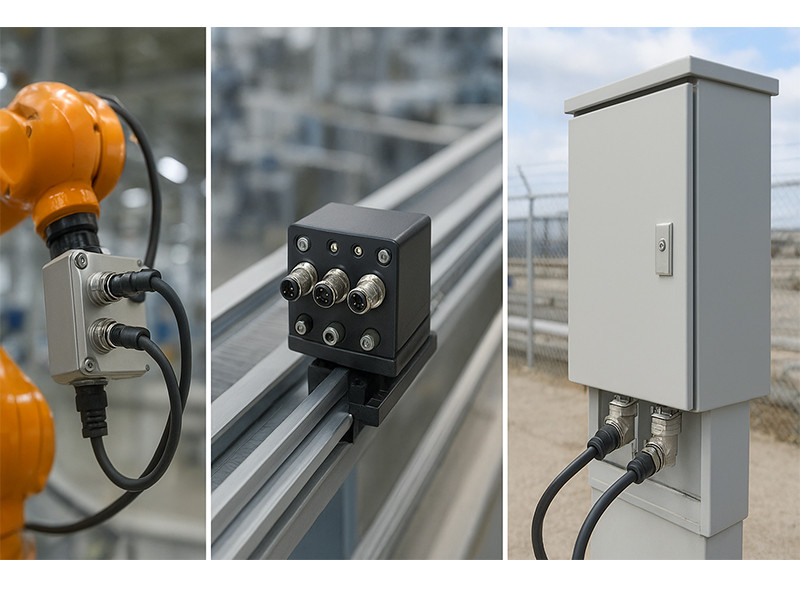

The M12 connector is specifically designed for IP69K waterproof and dustproof ratings and for heavy-duty applications.
The M12 connector is specifically designed for IP69K waterproof and dustproof rating, suitable for heavy-duty application scenarios. It boasts robust protection performance, capable of resisting the erosion of harsh environments and ensuring stable signal and power transmission. It provides durable and reliable connection support for industrial heavy-duty equipment, meeting various high-intensity operation requirements.
Data & Signal Transmission Capabilities
If your equipment requires high-speed data transmission, M12 D-coded or X-coded connectors are essential. M8 connectors can handle analog and low-frequency signals but lack impedance control for Gigabit Ethernet.
Connoder’s M12 Ethernet-ready cables are pre-tested for impedance and shielding integrity, ensuring plug-and-play installation and minimal data loss.
Choosing Between M8 and M12 – Practical Checklist
✅ Space Constraints: Choose M8 for tight enclosures.
✅ Data Rate: Choose M12 D/X for Ethernet or Profinet.
✅ Durability: Choose M12 for wash-down or outdoor conditions.
✅ Cost & Simplicity: M8 suits budget-friendly, short-range sensors.
✅ Future Scalability: M12 provides more pin and coding flexibility.
Why Choose Connoder
Connoder has been a trusted industrial connectivity partner for over 20 years, offering tailored connector and cable assembly solutions for automation, robotics, and smart manufacturing.
Full-range M8 and M12 connector systems
Custom cable assemblies for OEMs
Global engineering support and fast delivery
ISO-certified quality and strict testing standards
Conclusion
Both M8 and M12 connectors have essential roles in industrial connectivity. Understanding their strengths helps engineers design systems that balance size, data rate, and durability.
With Connoder’s expertise and comprehensive connector portfolio, you can confidently select the right circular connector to power your automation systems today — and scale for tomorrow.
What is the main difference between M12 and M8 circular connectors?
The main difference lies in their size and application scope. M8 connectors use an 8 mm thread and are compact, making them ideal for sensors or tight-space installations. M12 connectors use a 12 mm thread and support higher pin counts, stronger mechanical stability, and advanced codings for Ethernet and harsh environments.
Can I use M8 connectors for industrial Ethernet applications?
Generally not. M8 connectors are designed for low-speed signal transmission and short cable runs. For Ethernet, Profinet, or other high-speed networks, M12 D-coded or X-coded connectors are recommended because they offer proper shielding, impedance control, and data integrity.
Which connector type is more durable in harsh environments?
The M12 connector is more durable for industrial or outdoor use. It offers higher ingress protection (IP67–IP69K), better vibration resistance, and stronger mechanical retention. Connoder’s CD-M12-IND series is tested for chemical, oil, and water resistance to ensure long-term reliability.
How do I decide whether to use M8 or M12 connectors in my system?
Start by evaluating space constraints, data requirements, environment, and scalability.
Choose M8 when compactness and cost efficiency matter.
Choose M12 for higher pin counts, data transfer, or demanding conditions.
Connoder engineers can help you select the optimal connector for your system design.
