Introduction
M12 circular connectors are widely used in industrial automation, sensors, robotics, and harsh-environment applications. Proper maintenance of M12 circular connector systems is essential to ensure stable signal transmission, reduce downtime, and extend overall service life. This guide combines industry best practices with practical, field-proven maintenance tips while introducing how Connoder supports long-term connector reliability.

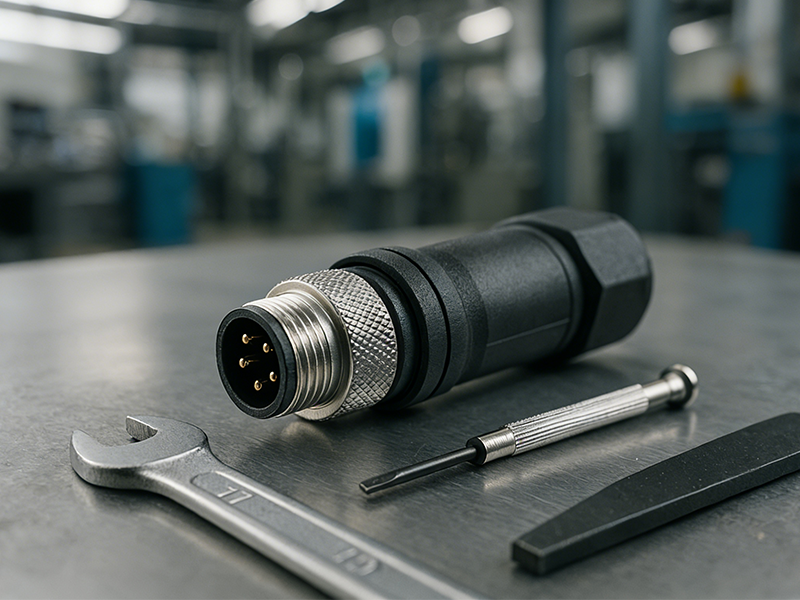

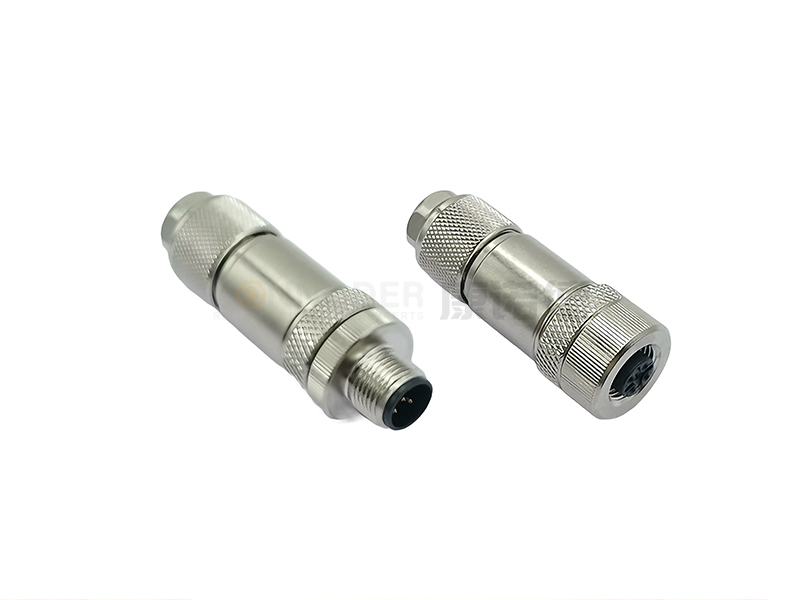

M12 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
1. Understand Your M12 Connector Specifications
Before performing any maintenance work, it is important to understand the specifications of your M12 circular connector, including coding type, pin configuration, IP rating, and environmental limits. Knowing these details helps ensure that cleaning, lubrication, and inspection processes do not compromise connector performance.
M12 Circular Connector Repair
Professional Maintenance Service for M12 Circular Connectors. Precisely fix malfunctions like poor contact and damaged housings, restore stable signal transmission. Suitable for industrial automation equipment, efficiently ensure the continuous operation of the equipment.
2. Routine Visual Inspection
Regular visual inspections are the first line of defense in preventing connector failure. Inspect connectors for bent pins, corrosion, cracked housings, loose threads, and damaged seals. Early detection allows timely corrective actions before performance issues arise.
Inspect the M12 circular connector
Conduct a comprehensive inspection of industrial - grade M12 connectors to identify potential hazards such as loose interfaces, poor contacts, and insulation damage, ensuring stable signal transmission and safe operation of the equipment.
3. Proper Cleaning Methods for M12 Circular Connectors
Dry Cleaning
Use compressed air or a soft brush to remove dust and loose particles. Avoid metal tools that may scratch or deform contact surfaces.
Wet Cleaning
For stubborn contamination, gently clean contacts using isopropyl alcohol and a lint-free cloth. Always ensure the connector is completely dry before reconnecting.
4. Contact Protection and Lubrication
Applying a thin layer of approved electrical contact lubricant helps reduce friction, prevent corrosion, and maintain stable electrical performance. When connectors are not in use, protective caps should be installed to prevent dust and moisture ingress.
The M12 connector is equipped with a protective dust cover.
Standard - equipped and customizable dust caps closely fit the connectors, isolating dust, water vapor, and impurities. This effectively reduces the risk of corrosion and oxidation during the idle period, meeting the long - term usage requirements in harsh industrial environments.
5. Seal and Gasket Maintenance
Seals and O-rings are critical for maintaining IP protection. Inspect sealing components regularly and replace any that show signs of cracking, flattening, or aging. Proper seal maintenance prevents moisture intrusion and connector failure.
6. Electrical and Functional Testing
Visual inspection alone is not sufficient. Electrical testing such as continuity and resistance measurements helps detect hidden issues like corrosion or unstable contacts. Periodic testing ensures connectors continue to perform within specifications.
7. Proper Handling During Installation and Removal
Always handle M12 connectors by the housing, not the cable. Avoid excessive pulling, twisting, or bending, and tighten connectors using the recommended torque. Proper handling significantly reduces mechanical stress and extends service life.
8. Common Problems and Practical Solutions
| Issue | Likely Cause | Solution |
| Intermittent signal | Dirty or loose contacts | Clean contacts and re-mate properly |
| Corrosion | Moisture ingress | Replace seals and apply protection |
| Bent pins | Misalignment | Carefully realign or replace |
9. Establish a Preventive Maintenance Schedule
A structured maintenance plan ensures consistent performance. Monthly inspections, quarterly testing, and annual reviews of critical connectors help prevent unexpected failures and support long-term reliability.
10. Why Choose Connoder
Connoder specializes in industrial-grade connector solutions designed for demanding applications. Our M12 circular connectors are engineered for durability, reliable sealing, and stable electrical performance, helping customers reduce maintenance costs and improve system uptime.
Conclusion
Effective maintenance of M12 circular connectors requires consistent inspection, proper cleaning, seal protection, and correct handling. By following these practical tips and pairing them with high-quality connector solutions from Connoder, you can significantly extend service life and ensure reliable performance in industrial environments.
What is the best way to maintain an M12 circular connector?
The best way includes regular visual inspections, careful cleaning of contacts with dry or wet methods, proper lubrication, and checking seals and gaskets. Following manufacturer specifications and handling connectors carefully during installation or removal helps extend their service life.
How often should M12 circular connectors be inspected?
A good preventive maintenance schedule recommends:
Monthly: Quick visual inspection and light cleaning
Quarterly: Seal checks, lubrication, and electrical testing
Annually: Full review of critical connectors in industrial systems
What are common problems that occur with M12 circular connectors?
Common issues include:
Intermittent signal due to dirty or loose contacts
Corrosion caused by moisture ingress
Bent or misaligned pins
Loose connections from vibration or improper installation
Early detection and preventive maintenance help solve these issues efficiently.
Can proper maintenance really extend the service life of M12 connectors?
Yes. Regular inspection, cleaning, seal protection, correct handling, and electrical testing significantly reduce connector wear and failures, ensuring reliable operation over a longer period and lowering replacement costs.

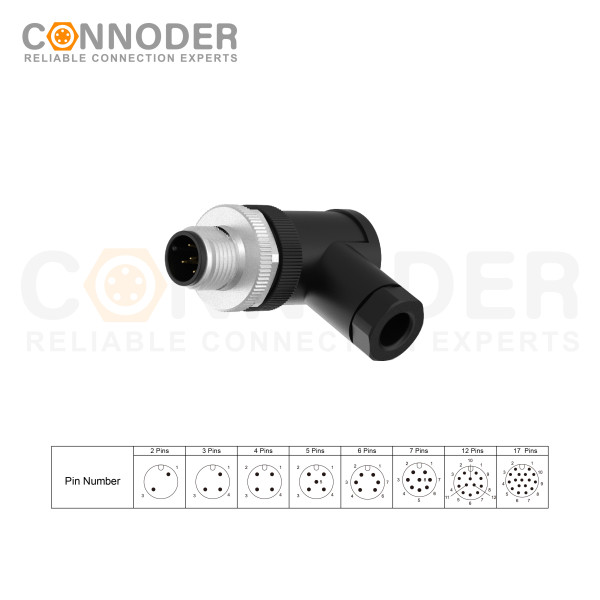

The M12 A 5 Pin Circular Connector is a standard connector widely used in the field of industrial automation.
M12 A 5 Pin Circular Connector is a versatile and robust connector designed for industrial applications.
M12 A 5 Pin Circular Connector is a flexible and highly customizable connector suitable for a variety of industrial applications.

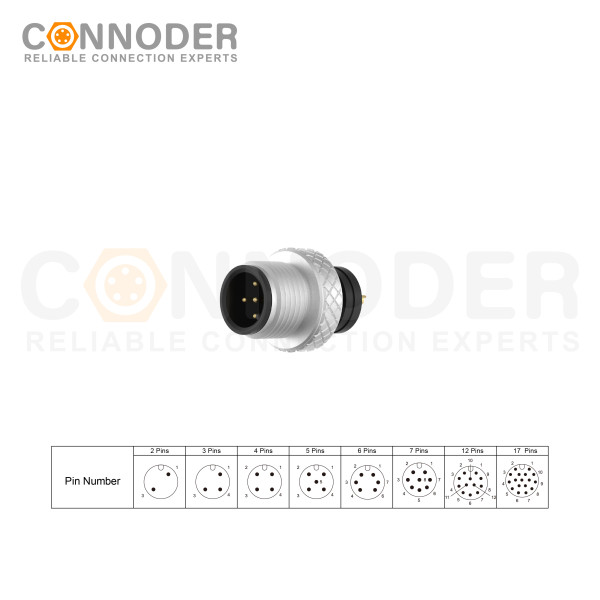

M12 A 5 Pin Circular Connector Overmolded Cable provide safe and reliable communication between devices and across networks within an industrial environment.
