New Product Release - M5 Series Circular Connectors
New Product Release - M5 Series Circular Connectors
Introduction
Drawing on the core advantages of mainstream M5 connector products in the industry and combining actual industrial application needs, Noderconn’s newly launched M5 Series Circular Connectors covers full-spec models to meet diverse installation and wiring requirements of different equipment. The complete product portfolio solves the single-spec limitation of many miniature connector brands on the market.
Main Product Types：

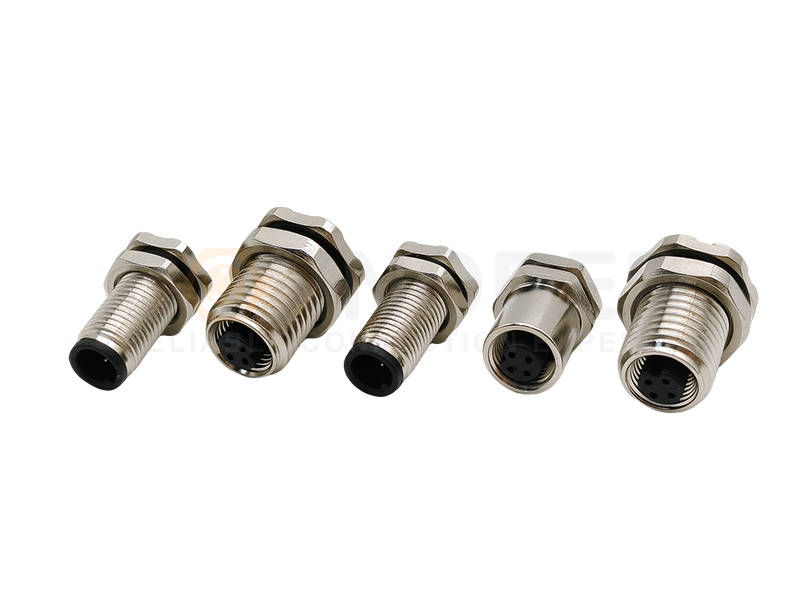

M5 Flange Panel Mount Connectors: Front-mounted and rear-fastened optional, stable panel fixation, perfect for equipment shell embedded installatio
Core Electrical & Mechanical Parameters：
All Noderconn M5 Series Circular Connectors are produced in strict accordance with international industrial standards, with unified and stable core parameters to ensure compatibility and interchangeability with mainstream industry products:
Pin Configuration: 2-pin, 3-pin, 4-pin optional, covering all miniature signal transmission needs
Wire Gauge: 26AWG (0.14mm²), matching low-current micro signal transmission
Rated Voltage & Current: 60V AC/DC, 1A, safe and stable for industrial weak current systems
Operating Temperature: -25℃ ~ 85℃, adaptable to most indoor and outdoor industrial working environments
Protection Grade: IP67 full dustproof and waterproof after complete docking, individual models support upgraded IPX8 harsh environment protection
Outstanding Product Features of Noderconn M5 Series Circular Connectors
Different from ordinary miniature connectors on the market, Noderconn’s new M5 Series Circular Connectors have been comprehensively optimized in structure, material and technology based on years of industrial manufacturing experience, with more prominent comprehensive performance:
Ultra-Compact & Lightweight Design
As the smallest specification in the industrial M-series circular connector family, M5 connectors effectively save equipment wiring and installation space, greatly improve equipment integration, and are specially designed for miniaturized intelligent equipment that M8/M12 connectors cannot adapt to.
Reliable Screw Locking & Anti-Loosening Performance
Adopts professional threaded screw coupling structure, which can achieve fast docking and firm locking. It can effectively resist vibration and impact during long-term operation of automated equipment, avoiding signal interruption caused by loose interfaces, and ensuring continuous and stable equipment operation.
Strong Anti-Interference & High Environmental Adaptability
Supports optional 360° full shielding design, which can effectively isolate external electromagnetic signal interference and ensure accurate transmission of micro sensor signals. Equipped with high-quality sealing components, it achieves IP67 dustproof and waterproof performance, and can work stably in humid, dusty and harsh industrial scenarios such as factory automation and outdoor monitoring.
Standardized Compatibility & Customization Support
Comply with DIN EN 61076-2-105 international design standards, with strong universal compatibility, and can be perfectly adapted to all standard M5 series equipment interfaces in the industry. Meanwhile, Noderconn supports OEM/ODM customized services such as custom cable length, wire marking, pin definition and special shell specifications to meet personalized project needs of different customers.
Wide Application Scenarios of M5 Series Circular Connectors
Thanks to ultra-small size, high protection and stable signal transmission performance, Noderconn M5 Series Circular Connectors are widely used in various miniature high-precision industrial equipment, covering multiple mainstream industries:
Industrial Automation: Miniature proximity switches, photoelectric sensors, pressure and temperature monitoring modules, small actuator connection systems
Intelligent Robotics: Desktop miniature robots, collaborative robot micro sensing interfaces, compact automated assembly modules
Precision Instruments & Medical Equipment: Laboratory testing instruments, medical miniature monitoring equipment, precision metering devices
New Energy & IoT Devices: Drones, portable industrial inspection equipment, outdoor environmental monitoring IoT sensors, automotive miniature electronic modules
Harsh Environment Equipment: Marine equipment, outdoor process control equipment that requires waterproof and dustproof protection
Conclusion
The launch of Noderconn brand-new M5 Series Circular Connectors further enriches our industrial miniature connector product matrix, providing global industrial customers with more high-quality, cost-effective compact connection solutions. With ultra-small size, industrial-grade protection, strong anti-interference and customizable advantages, this series of products will become the preferred choice for miniature intelligent equipment connection.
At present, Noderconn M5 Series Circular Connectors are officially on sale, supporting sample testing, small-batch trial order and large-batch wholesale. Professional technical support and after-sales service are provided throughout the whole process. If you have product selection, customization and quotation needs, please feel free to contact our team!
What are M5 Series Circular Connectors used for?
Noderconn M5 Series Circular Connectors are ultra-compact industrial interconnect components compliant with DIN EN 61076-2-105 standards. They are mainly used for miniature sensors, collaborative robots, precision instruments, drones, IoT devices and automation equipment, providing stable low-current signal connection for space-limited installation scenarios.
Are Noderconn M5 circular connectors waterproof?
Yes. All Noderconn M5 Series Circular Connectors feature IP67 dustproof and waterproof performance after complete mating, with optional IPX8 upgraded protection. They support stable operation in humid, dusty and vibrating harsh industrial environments.
What are the differences between M5, M8 and M12 circular connectors?
As the smallest size in the M-series family, M5 circular connectors are designed specifically for miniature and ultra-space-constrained equipment. Compared with M8 and M12 models, M5 features smaller volume, lighter weight and more flexible installation, perfectly matching micro sensors and precision instrumentation that larger connectors cannot adapt to.
Does Noderconn support customized M5 circular connector cable assemblies?
Yes. As a professional industrial connector manufacturer, Noderconn provides full OEM/ODM customization for M5 Series Circular Connectors, including custom cable length, PVC/PUR cable jackets, special pin definitions, laser marking and terminal processing to meet personalized industrial project requirements.
