Introduction
In modern industrial systems, circular connectors play a crucial role in ensuring stable and reliable electrical connections. However, for beginners, understanding a pin-out definition diagram of circular connectors can be challenging.
A pin-out diagram is more than just a drawing—it is a technical map that defines how each pin is assigned to a specific electrical function. Mastering this concept helps prevent wiring errors, improves system performance, and ensures safety.
Pin - out Definition Diagram of Circular Connectors

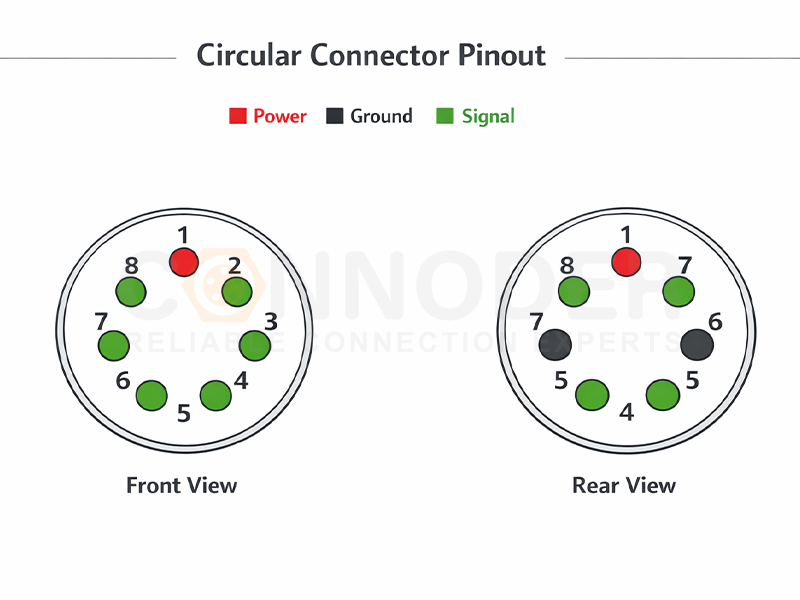

This diagram illustrates the pin-out definition of circular connectors, clearly marking the pin arrangement, signal correspondence and functional definition of each terminal. It provides intuitive reference for wiring installation, equipment commissioning and circuit connection matching of circular connectors.
What Is a Pin-out Definition Diagram?
A pin-out definition diagram illustrates the relationship between pin numbers, physical positions, and electrical functions such as power, ground, and signal.
In circular connectors like M5, M8, and M12, these diagrams ensure accurate connections and prevent mismatches that could lead to system failures.
Key Components of Circular Connector Pin-out Diagrams
1. Pin Numbering System
Pins are typically numbered clockwise when viewed from the front (mating side), ensuring consistency across applications.
2. Front View vs Rear View
Understanding orientation is critical:
Front view: Mating side
Rear view: Wiring side
3. Keyway or Alignment Mark
The keyway ensures proper connector orientation and helps identify correct pin positions.
4. Functional Assignment
Each pin is assigned a function such as power, ground, or signal transmission.
How Beginners Can Quickly Identify Pin-out Orders
Identify the connector type (M8, M12, etc.)
Locate the keyway to determine orientation
Check the pin numbering direction
Match each pin to its function
Verify using a wiring diagram
Following these steps allows beginners to quickly understand and apply pin-out diagrams in real-world scenarios.
Understanding Wiring Through Pin-out Diagrams
A pin-out diagram shows the mapping of pins, while a wiring diagram shows how wires connect to those pins.
Pin 1 → Brown wire → Power (+V)
Pin 3 → Blue wire → Ground (GND)
Pin 4 → Black wire → Signal
Proper mapping ensures reliable signal transmission and prevents system failures.
Common Circular Connector Pin Configurations
M12 Connector Example
3-pin: Basic power applications
4-pin: Sensors and actuators
5-pin: Advanced control systems
Coding Types
A-coded: General industrial use
D-coded: Ethernet/data communication
X-coded: High-speed data transmission
Common Mistakes Beginners Should Avoid
Confusing front and rear views
Ignoring pin numbering standards
Incorrect wire-to-pin assignments
Overlooking connector coding types
Why Choosing the Right Connector Manufacturer Matters
Accurate pin-out diagrams depend on reliable manufacturers. CONNODER specializes in high-performance circular connectors and provides:
Clear and standardized pin-out documentation
High-quality waterproof connectors (IP67/IP68)
Custom connector solutions
Professional technical support
Conclusion
Understanding the pin-out definition diagram of circular connectors is essential for ensuring safe and efficient electrical connections. By mastering pin numbering, orientation, and wiring relationships, beginners can quickly identify pin-out orders and avoid costly mistakes.
With a trusted partner like CONNODER, you gain access to high-quality products and expert support, ensuring reliable performance in every application.
What is a pin-out definition diagram of circular connectors?
A pin-out definition diagram of circular connectors is a visual guide that shows the relationship between pin numbers, positions, and their electrical functions (such as power, ground, and signal). It helps users correctly connect and wire devices to ensure safe and reliable operation.
How can beginners quickly identify pin-out order in circular connectors?
Beginners can identify pin-out order by locating the keyway for orientation, checking whether the diagram is front or rear view, and following the clockwise pin numbering system. Matching pin numbers to their functions ensures accurate wiring.
What is the difference between a pin-out diagram and a wiring diagram?
A pin-out diagram shows the function of each pin in a connector, while a wiring diagram illustrates how wires are physically connected to those pins. Both are essential for proper installation and troubleshooting.
Why is it important to understand circular connector pin-out diagrams?
Understanding pin-out diagrams prevents wiring errors, reduces the risk of equipment damage, and ensures proper signal transmission. It is especially important in industrial applications where reliability and safety are critical.
