Introduction
In today’s rapidly evolving era of Industry 4.0, industrial automation relies more than ever on robust, reliable communication between field devices—especially sensors and actuators—and control systems like PLCs, HMIs, and industrial networks. In this landscape, the M12 connector has emerged as the standard for ruggedized signal and data transmission.
If your system demands dependable wiring in dusty, wet or high-vibration environments, M12 connectors offer the perfect blend of durability, versatility, and compatibility.
As a trusted manufacturer of industrial connectors, Connoder specializes in developing high-performance M12 connectors designed for factory automation, robotics, machinery, and more. With decades of experience and an unwavering commitment to quality, our products are engineered to withstand demanding industrial conditions.

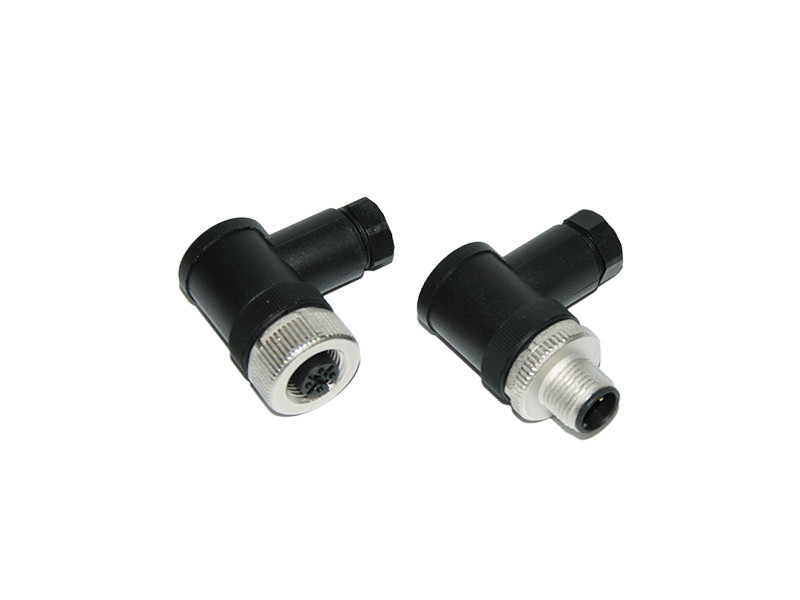

M12 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
Why M12 Connectors Are Ideal for Sensors & Actuators
M12 connectors were specifically developed to provide secure, sealed connectivity in challenging industrial environments. Each connector features a 12mm thread locking mechanism, making them resistant to vibration, water, and dust ingress.
Key Advantages
Reliable field wiring for sensors, actuators, and control devices
Availability in multiple coding types (A, B, D, X) to support signal, power, and data
High IP67–IP69K protection ratings
Available in a variety of pin counts (3, 4, 5, 8, or 12 pins)
Whether you're wiring a proximity sensor to a PLC or connecting an actuator to a distributed control system, the M12 connector ensures secure locking and long-term electrical integrity—right on the shop floor.
Applications in Automation: Sensors & Actuators
🟠 Sensor Connectivity
M12 connectors are widely used with proximity switches, temperature sensors, optical sensors, ultrasonic sensors, and more. The most common version is the A-coded M12 connector for signal transmission.
These connectors are rugged enough to withstand movement, vibration, and environmental exposure in packaging machinery, conveyors, and robotic manufacturing cells.
The M12 circular connector is connected to the sensor
The precision components are tightly interlocked, with the metal surfaces gleaming with a fine luster. The details of the patterns and interfaces are clearly distinguishable. The natural light outlines the rigorous texture of the industrial equipment, fully demonstrating the accuracy and reliability of the mechanical connections.
🔵 Actuator Wiring
M12 connectors are also used to deliver direct power and control signals to valves, solenoids, motors, grippers, and pneumatic devices.
The secure locking mechanism ensures reliable operation even in environments with frequent vibration or moisture.
M12 connector coding types (A, B, D, X) comparison
Intuitively present the core differences among various specifications of industrial connection components, accompanied by pin layout diagrams and application scenario explanations. The content is well-organized, providing intuitive and professional references for selection and application.
Understanding M12 Coding Types
| Coding | Typical Use | Pin Count | Application |
| A-coded | Sensors / Actuators | 3-8 | Low-voltage signal transmission |
| B-coded | Fieldbus | 5 | Industrial control networks (e.g. PROFIBUS) |
| D-coded | Ethernet | 4 | 100Mb/s (PROFINET, EtherCAT) |
X-coded | High-speed Ethernet | 8 | Up to 10Gb/s (Vision systems) |
How Connoder Adds Value
IP67-rated M12 connector
In industrial scenarios, the sturdy components can withstand dust and continuous vibrations, while the sealing structure firmly ensures the stability of the connection. Even in complex and harsh environments, it maintains reliable transmission, fully demonstrating the durability of industrial equipment.
🔧 Custom Engineering
Every factory has different power requirements and environmental conditions. That’s why Connoder offers customized M12 cable assemblies, tailored to your exact needs.
🔒 Quality Built for Harsh Environments
Our products meet CE, UL, and ISO9001 standards and are extensively tested for electrical and mechanical durability.
🚀 Fast Lead Time & Global Support
Whether you're working on a small prototype or a large-scale installation, Connoder ensures fast delivery and expert support.
Installation Tips
Use the correct coding type for the application
Tighten the locking thread securely to prevent vibration issues
Choose IP67 or higher for washdown applications
Use shielded cables in areas with high electromagnetic noise
Inspect connectors periodically for seal wear
Conclusion
With smart factories on the rise, reliable data and power connectivity is more critical than ever. M12 connectors offer unmatched performance for connecting sensors, actuators, and other automation equipment in demanding industrial environments.
When choosing the right connector partner, trust Connoder for expertise, reliability, and global service.
What are the main applications of M12 connectors in industrial automation?
M12 connectors are primarily used to connect sensors and actuators in factory automation. They provide reliable, sealed, and vibration-resistant connections for devices like proximity sensors, temperature sensors, grippers, and valves. Due to their IP67–IP69K ratings, they are suitable for harsh industrial environments including robotics and conveyor systems.
What is the difference between A-coded, B-coded, D-coded, and X-coded M12 connectors?
A-coded: For sensors and actuators (3–8 pins, low voltage signals)
B-coded: For fieldbus systems like PROFIBUS (5 pins)
D-coded: For industrial Ethernet up to 100Mb (4 pins)
X-coded: Supports high-speed Ethernet up to 10Gb (8 pins)
The coding type ensures proper connection and prevents mismatches in signal or power applications.
Why are M12 connectors preferred for sensor and actuator wiring?
M12 connectors offer secure locking with a threaded mechanism, high protection ratings against dust and moisture, and support for various signal and power requirements. Their compact design and coding options make them highly reliable for automation setups that require frequent connections or are exposed to vibration and environmental challenges.
What should I consider when choosing an M12 connector for my application?
You should consider:
The coding type (A, B, D, or X)
Pin count based on signal or power needs
Environmental protection (minimum IP67 for industrial settings)
Cable type and shielding for noise immunity
Working with a manufacturer like Connoder helps ensure your connector is customized for your application's needs.
