Introduction
The selection of circular connectors is a critical decision in industrial system design. Choosing the right connector directly affects electrical reliability, environmental resistance, and long-term maintenance costs. This guide explains the core key points engineers should consider when selecting circular connectors, based on proven industry practices and real application experience.

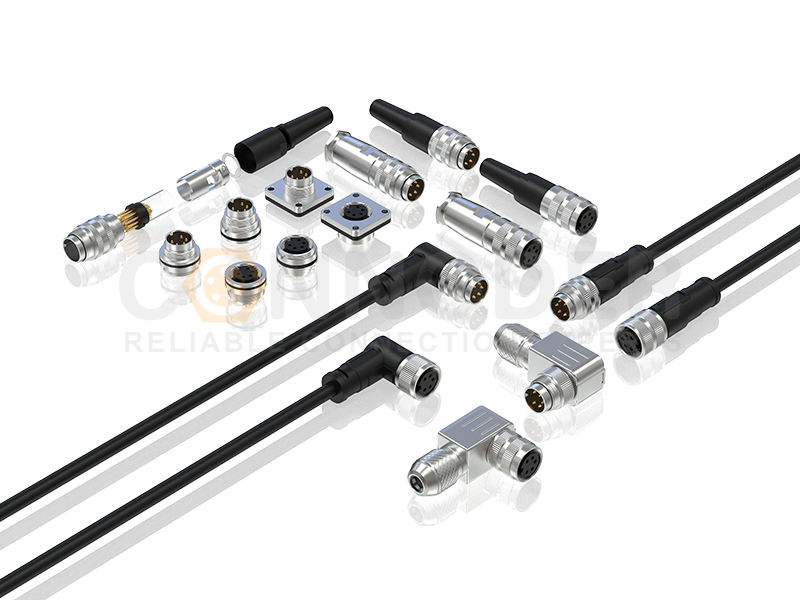

M16 Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
Why the Selection of Circular Connectors Matters
Circular connectors are widely used in industrial automation, sensors, robotics, transportation, and electrical equipment due to their compact structure and secure coupling design. However, improper connector selection often results in unstable signals, premature failure, and increased system downtime.
A structured selection process helps engineers avoid these risks while ensuring optimal performance throughout the product lifecycle.
Industrial circular connectors installed in harsh factory environments
Connoder industrial circular connectors can withstand high and low temperatures, resist corrosion and dust. They are suitable for complex working conditions, with stable plug - and - unplug operations that prevent loosening. They build a solid defense line for signal and power transmission in equipment operating in harsh factory environments.
Core Key Points for Selecting Circular Connectors
1. Application Environment
The first step in connector selection is understanding the operating environment. Factors such as dust, moisture, vibration, temperature, and chemical exposure determine the required protection level and structural design.
2. Electrical Performance Requirements
Electrical ratings must always match the system’s operating conditions. Engineers should evaluate rated voltage, current capacity, signal type, contact resistance, and insulation performance to ensure safe and stable operation.
3. Mechanical Design and Dimensional Constraints
Mechanical compatibility is a key consideration when selecting circular connectors. Connector size, mounting method, and space limitations must align with the equipment design. Standard sizes such as M5, M8, M9, M12, M16, and 7/8″ connectors are commonly used across industries.

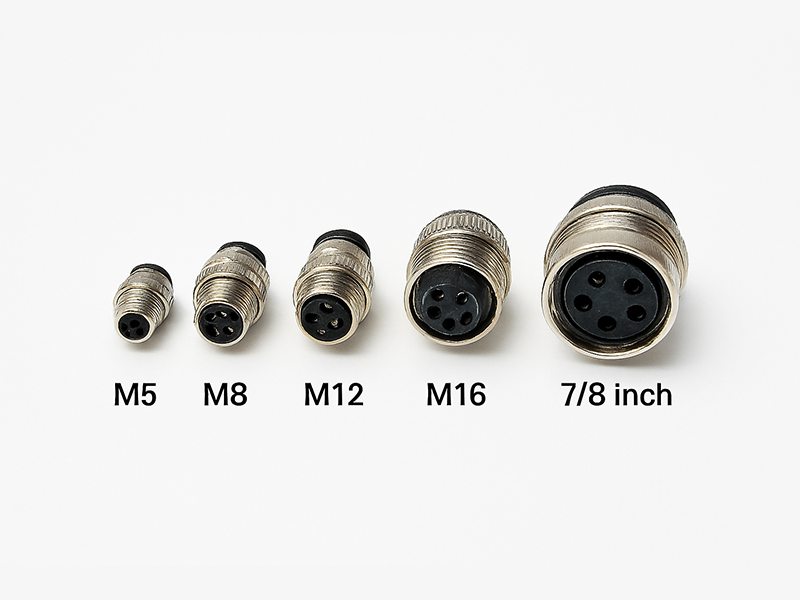

Display of circular connectors in different sizes
Connoder's multi - specification circular connectors can meet the adaptation needs of various scenarios. They feature precise structures for smooth plug - and - unplug operations, are resistant to wear and interference, and provide stable and reliable connection solutions for signal transmission in industrial equipment.
4. Coupling and Locking Method
Coupling mechanisms such as threaded, bayonet, or push-pull locking influence connection stability and installation efficiency. Threaded coupling is often preferred in industrial environments due to its vibration resistance.
5. Shielding and Signal Integrity
For data transmission and sensitive signal applications, shielding effectiveness is essential. Proper EMI and RFI protection helps maintain signal integrity and prevents interference in complex electrical systems.
6. Durability and Mating Life
Connector durability is determined by mating cycles, contact plating quality, and housing materials. High-quality circular connectors reduce maintenance frequency and extend service life.
7. Coding and Anti-Mismating Protection
Coding systems help prevent incorrect connections in multi-connector applications. Standard coding options such as A-coding, B-coding, and D-coding improve installation safety and reduce the risk of system errors.
Display of the coding and anti - misinsertion positions of circular connectors
Connoder circular connectors feature clear coding and precise anti - misinsertion designs. These not only avoid the risk of incorrect insertion but also improve assembly efficiency. With a stable and durable structure, they safeguard the connection of industrial equipment.
Why Engineers Choose Connoder
Connoder specializes in the development and manufacturing of industrial circular connectors for automation and electrical applications. With a comprehensive product range and strong engineering support, Connoder helps customers select reliable connector solutions tailored to real-world operating conditions.
By combining standardized connector designs with application-focused customization, Connoder supports long-term system stability and efficient project implementation.
Conclusion
The selection of circular connectors requires a balanced evaluation of environmental, electrical, and mechanical factors. A systematic approach not only improves system reliability but also reduces lifecycle costs.
With professional guidance and proven connector solutions from Connoder, engineers and procurement teams can make confident decisions that support both performance and long-term value.
What are the core key points for the selection of circular connectors?
The core key points include application environment, electrical ratings (voltage and current), mechanical size and mounting method, coupling and locking mechanism, environmental protection level (IP rating), shielding performance, durability, and coding to prevent mismating.
Why is the application environment important when selecting circular connectors?
The operating environment determines the connector’s required protection level and structural design. Factors such as moisture, dust, vibration, temperature, and chemical exposure directly affect connector reliability and service life.
How do electrical ratings affect circular connector selection?
Electrical ratings ensure safe and stable operation. Selecting a connector with appropriate rated voltage, current capacity, and insulation performance prevents overheating, signal loss, and long-term reliability issues.
What role does connector coding play in circular connector selection?
Connector coding prevents incorrect mating in systems with multiple connectors. Standard coding options (such as A-coding or D-coding) improve installation safety, reduce wiring errors, and simplify maintenance.
