Introduction
In modern industrial automation and aerospace-grade motion control systems, servo motors are often required to operate in high-temperature, high-vibration, and high-reliability environments. Under such conditions, the selection of circular connectors—especially high-temperature-resistant aviation plugs—plays a decisive role in ensuring system stability, safety, and long service life.

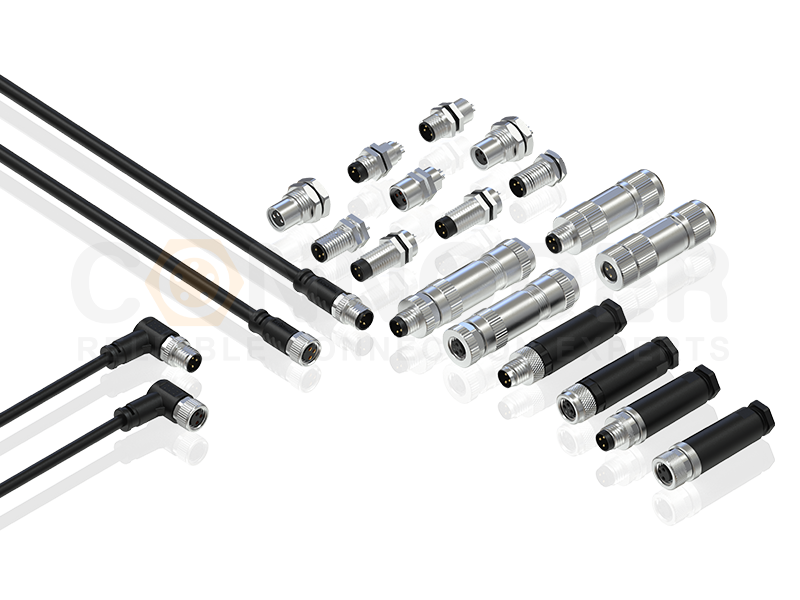

Circular Connectors
Rugged, compact and versatile — ideal when you need mixed power & signal plus environmental protection.
Understanding Circular Connectors in Servo Motor Systems
Circular connectors are cylindrical electrical connectors designed to provide secure mechanical locking, stable electrical transmission, and excellent environmental resistance. In servo motor systems, they are commonly used for power supply, encoder feedback, and control signal transmission.
Thanks to their compact structure and reliable connection performance, aviation-style circular connectors are widely adopted in industrial robots, CNC machines, and high-end automation equipment.
Why High-Temperature Resistance Is Critical for Aviation Plugs
During continuous operation, servo motors generate heat that can significantly raise the ambient temperature around connectors. If the connector is not designed for high-temperature environments, issues such as insulation aging, increased contact resistance, and signal instability may occur.

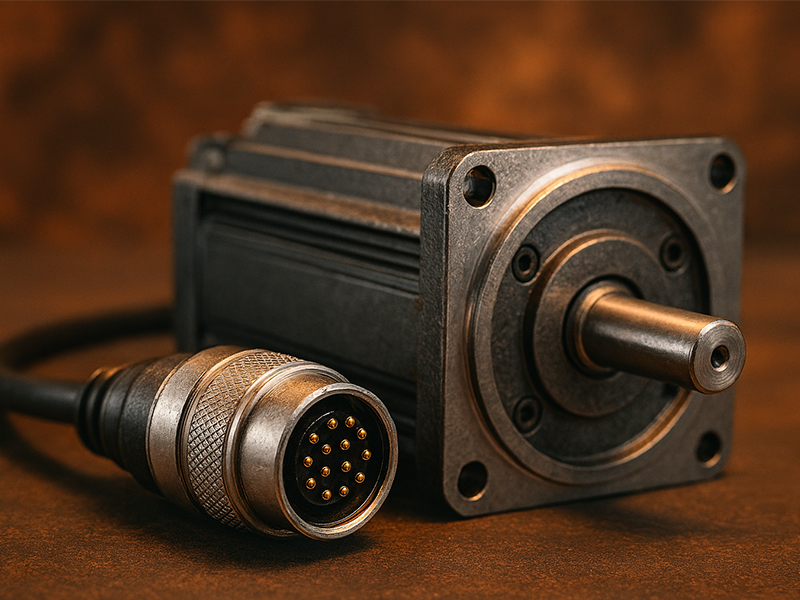

Industrial circular connectors for connecting to servo motors
This industrial circular connector is specifically designed for servo motors. It can withstand high - temperature environments, offers reliable electrical connection performance, has a high protection rating, and features a stable mechanical structure, ensuring stable signal and power transmission.
Key Specifications for Selecting Circular Connectors
Operating Temperature Range
For high-temperature servo motor applications, circular connectors should typically support operating ranges from −55°C to +125°C or higher. High-performance insulation materials and optimized contact designs are essential for maintaining electrical reliability under thermal stress.
Electrical Performance and Signal Stability
The connector must be matched to the servo motor’s rated current and voltage requirements, covering both power transmission and signal feedback. Stable contact resistance at elevated temperatures is a key indicator of connector quality.
Mechanical Locking and Vibration Resistance
Servo motors often operate under constant vibration and movement. Threaded coupling or push-pull self-locking mechanisms help prevent accidental disconnection and ensure long-term mechanical stability.
Environmental Protection and Material Selection
High-temperature aviation plugs are often exposed to dust, oil, and moisture. Selecting circular connectors with IP67 or higher protection levels and durable metal shells significantly improves system safety and service life.

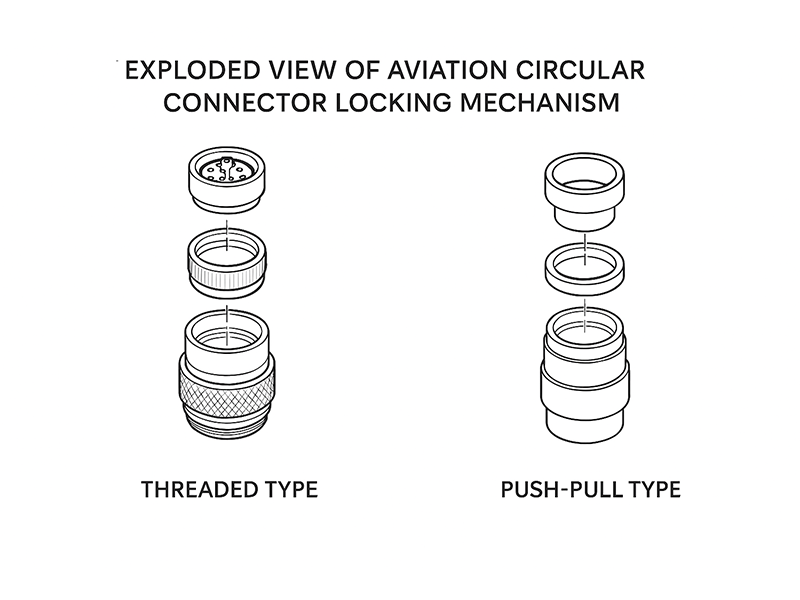

Decomposition diagram of the locking mechanism of aviation circular connector
Exploded diagrams of the locking structures of two types of aviation circular connectors! The threaded - type is for firm fastening and vibration resistance, and the push - pull type enables quick plugging and unplugging. They clearly show the internal structures and are suitable for the stable connection requirements of different scenarios.
Connoder: Professional Circular Connector Manufacturer
Connoder specializes in the development and manufacturing of circular connectors for industrial automation and servo motor applications. With strong engineering expertise and strict quality control, Connoder provides reliable connector solutions designed for high-temperature and harsh-environment conditions.
Conclusion
The selection of circular connectors for high-temperature aviation plugs in servo motor systems is a critical engineering decision. By carefully evaluating temperature resistance, electrical performance, mechanical locking, and environmental protection, engineers can ensure long-term reliability and stable operation.
Why is high-temperature resistance important when selecting circular connectors for servo motors?
Servo motors often operate continuously and generate significant heat. If circular connectors are not designed for high-temperature environments, insulation materials may degrade and contact resistance may increase, leading to unstable signals or system failure. High-temperature-resistant aviation connectors ensure reliable electrical performance and long-term stability.
What operating temperature range should aviation plugs for servo motors support?
For most industrial and automation applications, aviation plugs used with servo motors should support operating temperatures from −55°C to +125°C or higher. Selecting connectors with sufficient thermal margins helps prevent performance degradation under long-term thermal stress.
Which locking mechanisms are best for circular connectors in high-vibration servo motor applications?
Threaded coupling and push-pull self-locking mechanisms are commonly recommended for servo motor applications. These locking designs prevent accidental disconnection caused by vibration or movement and improve mechanical reliability in demanding environments.
What IP rating is recommended for high-temperature aviation circular connectors?
Circular connectors used in high-temperature servo motor environments should typically meet IP67 or higher protection ratings. This ensures effective sealing against dust, moisture, and industrial contaminants, improving system durability and safety.
