A Comprehensive Introduction to M16 Connector for Industrial Use
If you're seeking a robust, compact, and versatile connector solution for industrial applications, the M16 connector for industrial use stands out. This comprehensive guide covers design, performance, variants, and real-world applications—paired with authoritative references—and shows how Connoder supports demanding automation projects with reliable circular-connector solutions.

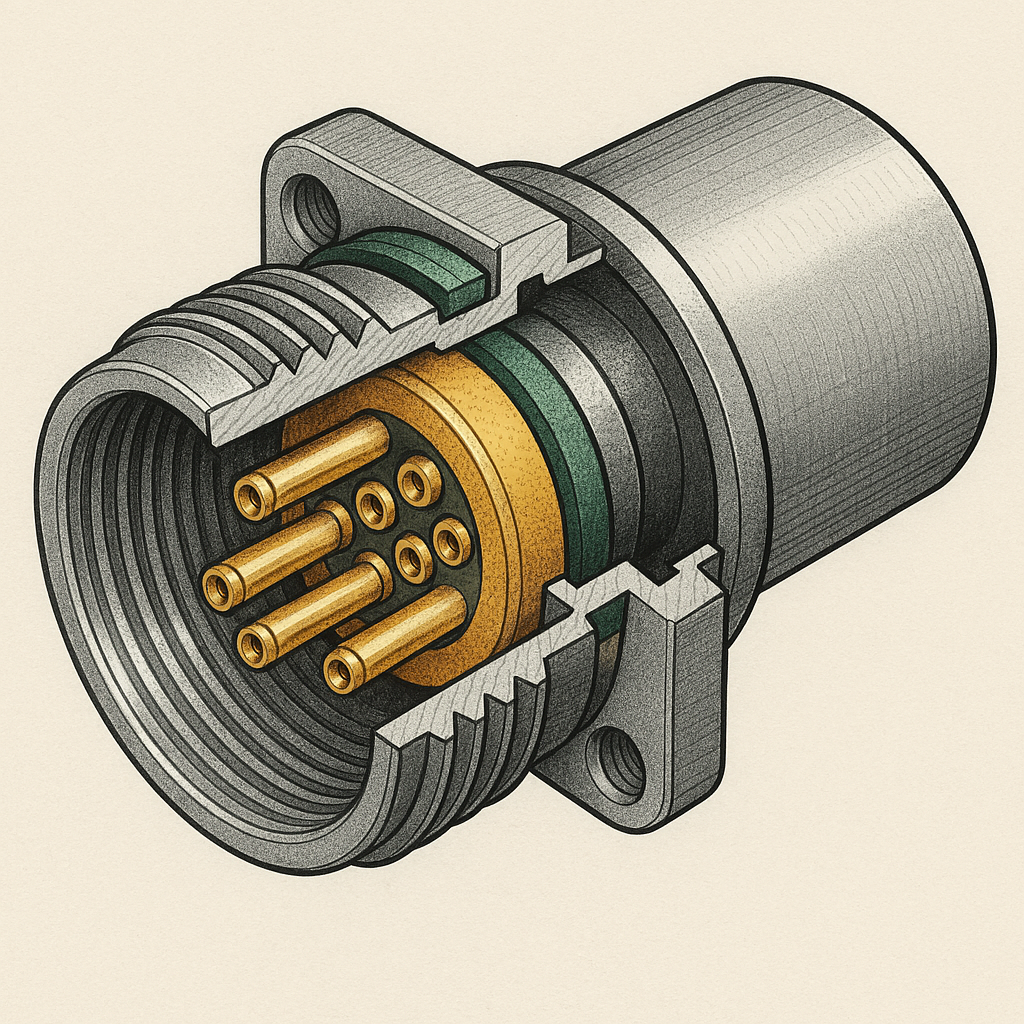

1. What Is an M16 Circular Connector?
M16 refers to a metric-thread (M16 × 0.75) small circular connector (per IEC 61076-2-106 family). It offers multiple pin configurations (typically 2–24 poles), sturdy metal or engineering-plastic housings, and threaded (or bayonet) locking for secure mating in industrial environments.
2. Key Industrial Features & Standards
Environmental Protection (IP Ratings)
- Commonly available to IP67 when mated—dust-tight and protected against temporary immersion; suitable for outdoor or washdown scenarios.
- Premium variants achieve IP68/IP69K for prolonged immersion or high-pressure cleaning in harsh industrial conditions.
Mechanical & EMI Features
Metal housings with screw locking provide vibration resistance and excellent EMI/RFI shielding; plastic options are available for cost-sensitive, indoor applications.
Pin Arrangement Options
Typical configurations span from 2 to 24 poles, with solder or crimp contacts—supporting signal, low-power, or hybrid transmission in compact systems.
3. Performance & Specifications
| Feature | Specification |
|---|---|
| Pin counts | 2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24 poles (common) |
| Thread & locking | M16 × 0.75, screw-lock; bayonet options available in some series |
| IP rating | Up to IP67 standard; IP68/IP69K on enhanced models |
| Housing / shielding | Nickel-plated brass or reinforced plastic; 360° EMI grounding options |
| Temperature range | Typical –40 °C to +85 °C (series-dependent) |
4. Industrial Applications & Use Cases
- Automation & robotics: Compact I/O, robust under vibration.
- Instrumentation & sensors: Reliable signal/power in tight spaces.
- Harsh / outdoor environments: High IP protection for washdown and field deployments.
- Telecom & LED systems: Interfaces for 4G/5G modules, lighting, and packaging machinery.
5. Selecting the Right M16 Connector
- Define pin count & contact type for signal/power needs.
- Match the IP rating to the environment (IP67 vs IP68/IP69K).
- Choose housing & shielding based on EMI and corrosion exposure.
- Select mounting style (cable, panel, PCB; straight vs angled).
- Confirm vendor quality & support for lifecycle reliability.
6. Why Choose Connoder for Your M16 Connector Needs?
About Connoder (Founded 2013) — Connoder focuses on the field of industrial automation and is committed to providing excellent, innovative, and high-quality connection solutions worldwide. We have a strong R&D team and continuously innovate to meet evolving market needs.
Mission
Drive the advancement of industrial automation through innovative, reliable, and efficient circular-connector solutions.
Vision
Become an industry-leading connector brand, winning the trust of global customers with outstanding quality, innovation, and service.
Values
- Customer First
- Sincerity & Trustworthiness
- Innovation Driven
- Quality First
Backed by rich experience in industrial automation and electronic engineering, Connoder was established to meet the rising demand of Industry 4.0 for efficient, reliable, and safe connection products—supporting customers’ digital transformation with technology innovation and high-quality services.
7. Summary & Next Steps
The M16 connector for industrial use delivers compact, robust, and versatile connectivity—pairing strong sealing, EMI protection, and multiple pin configurations with broad application coverage. Partner with Connoder to specify standard or customized M16 solutions that align with your automation goals.
- Request technical consultation or a rapid quote.
- Discuss customization (pin layout, overmolded cable assemblies, enhanced IP sealing).
- Explore industry cases and manufacturing capabilities on Connoder’s website.
